Chapter 9 Vision Manager
9.1 Overview
The Vision Manager is for writing robot vision programs in the PAC programming language. Working interactive-
ly in the WINCAPS III environment, the programmer defines processing windows, writes search models, and cre-
ates lookup tables.
WINCAPS III saves image data in .bmp format and search models in a special data format.
9.1.1 Screen descriptions

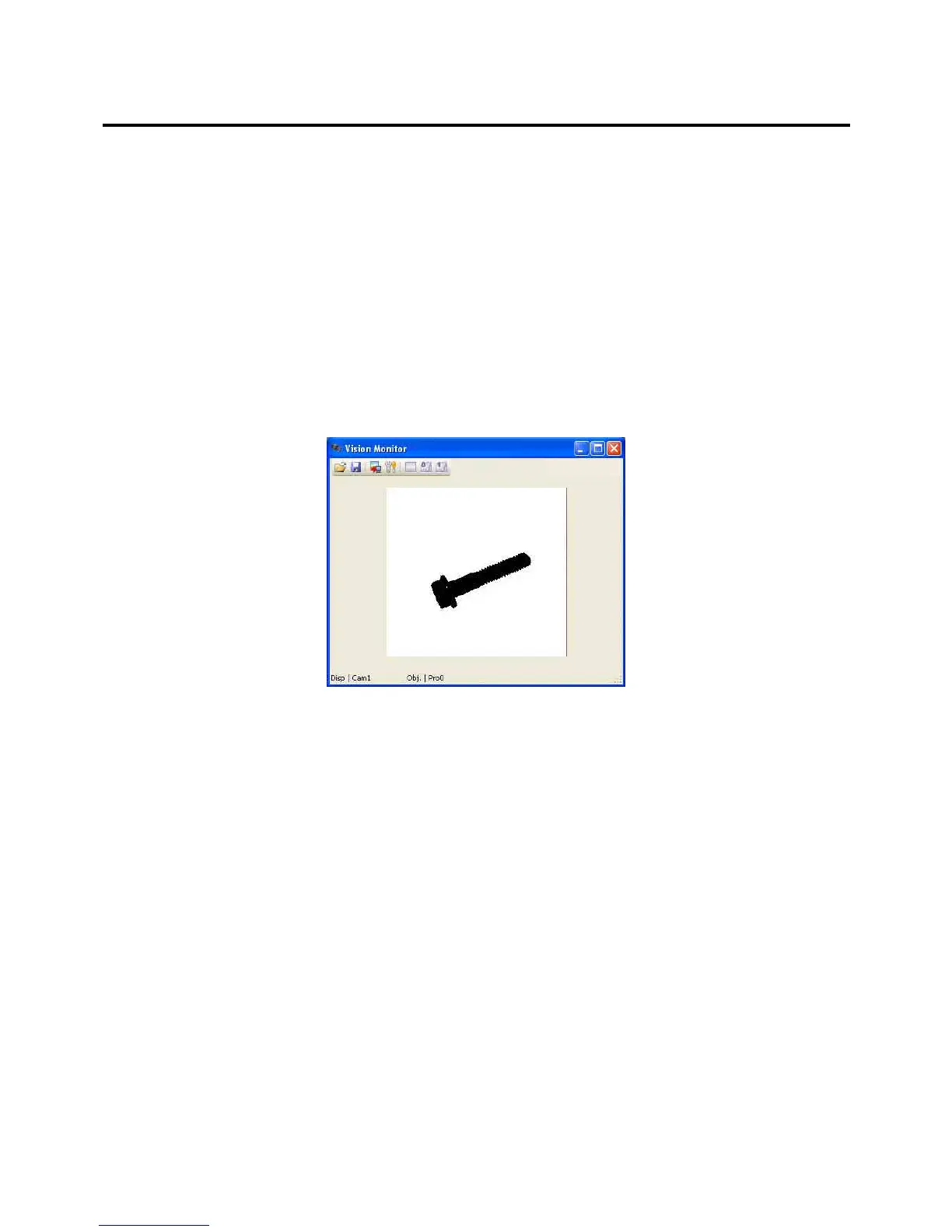

Vision monitor window
This window displays the image from a camera connected to the robot unit. Choose View|Vision Monitor to
display it in the Program view area.
