3.2 Modules Description
This paragraph points out the functionality of the modules that were designed for
the DEV 1951. There are available electrical and optical switch modules, passive
splitter modules, and distribution amplifier modules for ASI/SDI signals.
The modules described in the following can be removed, installed, and/or ex-
changed even during the operation of the device. Knurled head screws are pro-
vided on each module, which can be operated easily.
A short listing of the available DEV 1951 modules is provided here for reference:
3.2.1 DEV 11–0005 - DPST Switch Module with Monitor Port; 47…1006 MHz; 75 Ohm, BNC (f)
3.2.2 DEV 11–0009 - DPST Switch Module; DC…2500 MHz; 50 Ohm, N (f)
3.2.3 DEV 11–0010 - DPST Sensing Switch Module; DC, 950…2150 MHz; 75 Ohm, F (f)
3.2.4 DEV 11–0011 - DPST Sensing Switch Module; DC, 47…1006 MHz; 75 Ohm, F (f)
3.2.5 DEV 11–0024 - DPST Relay Switch Module with Termination; DC…18 GHz; 50 Ohm, SMA (f)
3.2.6 DEV 11–0027 - Relay Transfer Switch Module; DC…18 GHz; 50 Ohm, SMA (f)
3.2.7 DEV 11–0028 - DPST Switch Module; DC, 47…2500 MHz; 75 Ohm, F (f)
3.2.8 DEV 11–0033 - DPST Relay Switch Module; DC…18 GHz; 50 Ohm, SMA (f)
3.2.9 DEV 11–0050 - DPST Switch Module; DC…2500 MHz; 50 Ohm, SMA (f)
3.2.10 DEV 11–0057 - Transfer Switch Module; DC…1006 MHz; 75 Ohm, BNC (f)
3.2.11 DEV 11–0058 - DPST Sensing Switch Module; DC, 950…2150 MHz; 50 Ohm, SMA (f)
3.2.12 DEV 11–0107 - DPST High Power Sensing Switch Module; DC, 950…2150 MHz; 75 Ohm, F (f)
3.2.13 DEV 11–0108 - DPST High Power Sensing Switch Module; DC, 47…1006 MHz; 75 Ohm, F (f)
3.2.14 DEV 13–0169 - 1:4/4:1 Splitter/Combiner Module, Passive; 47…1006 MHz; 75 Ohm, F (f)
3.2.15 DEV 13–0170 - 1:4/4:1 Splitter/Combiner Module, Passive; 950…2150 MHz; 75 Ohm, F (f)
3.2.16 DEV 13–0171 - 1:4/4:1 Splitter/Combiner Module, Passive; 950…2150 MHz; 50 Ohm, SMA (f)
3.2.17 DEV 13–0174 - 1:2/2:1 Splitter/Combiner Module, Passive; 950…2150 MHz; 75 Ohm, F (f)
3.2.18 DEV 14–0014 - Ethernet 2:1/1:2 Switch Module
3.2.19 DEV 14–0087 - DPST Switch Module with DA 1:3; ASI; 75 Ohm, BNC (f)
3.2.20 DEV 14–0088 - DPST Switch Module with DA 1:3; ASI / HD-SDI; 75 Ohm, BNC (f)
3.2.21 DEV 14–0091 - Distribution Amplifier 1:3; ASI; 75 Ohm, BNC (f)
3.2.22 DEV 14–0093 - DPST Switch Module with DA 1:3; ASI / 3G-SDI; 75 Ohm, BNC (f)
3.2.23 DEV 14–0095 - Distribution Amplifier 1:3; ASI / 3G-SDI; 75 Ohm, BNC (f)
3.2.24 DEV 14–0102 - Distribution Amplifier 1:3; ASI / HD-SDI; 75 Ohm, BNC (f)
3.2.25 DEV 14–0110 - DPST Switch Module with DA 1:3; E1/T1; 75 Ohm, BNC (f)
3.2.26 DEV 7462 - 1:2 Optribution® Switch; 1260…1360 nm, 1510…1610 nm; SC/APC
3.2.27 DEV 7463 - 1:2 Optribution® Switch; 1260…1610 nm; SC/APC
3.2.1 DEV 11–0005
DPST Switch Module with Monitor Port; 47…1006 MHz; 75 Ohm, BNC (f)
Out
In A
In B
Monitor
In B
Monitor
Out In A

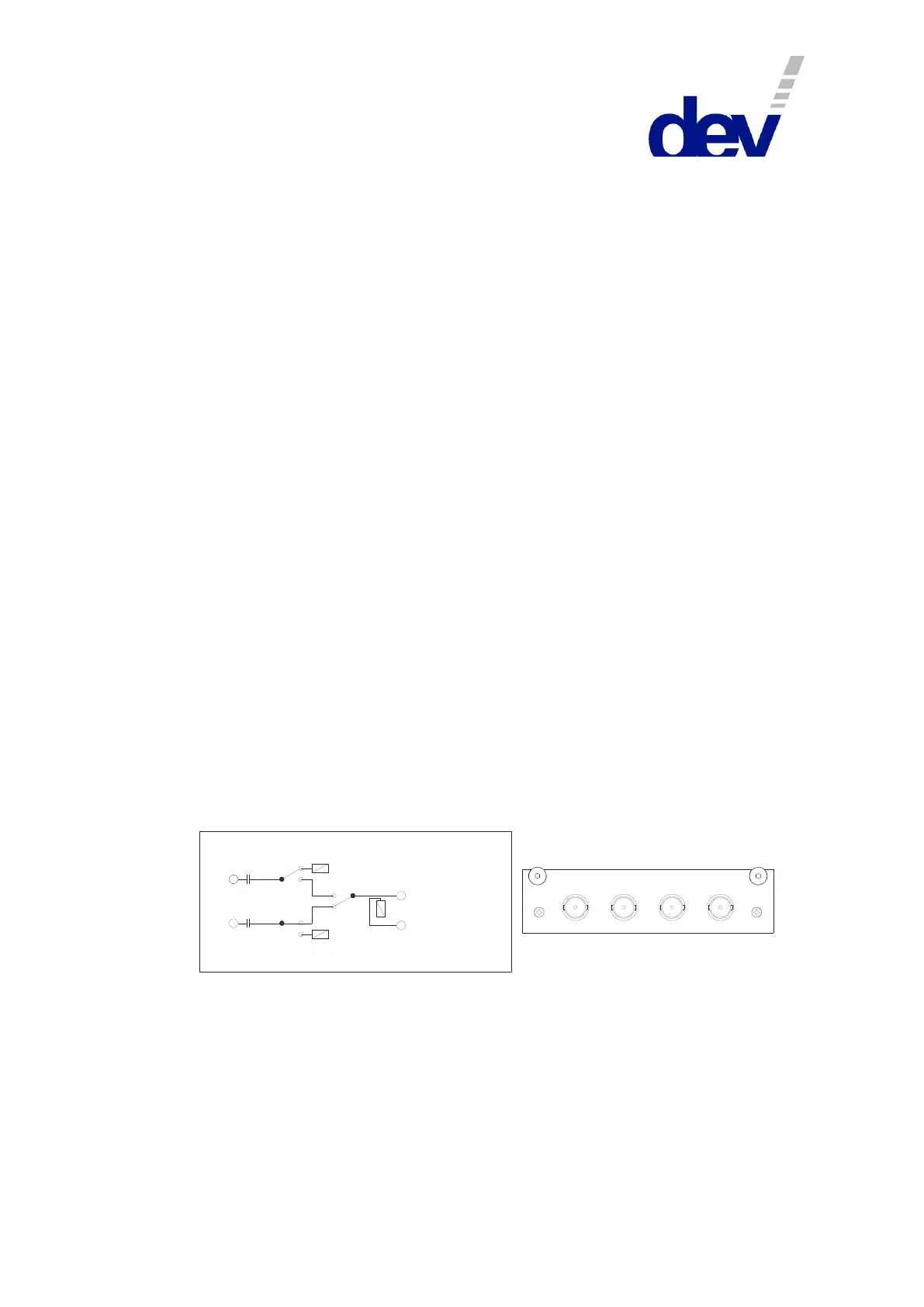

DEV 11-0005
The output port ("Out") can be switched to one of two input ports ("In A", "In B"). The
unused input port is terminated internally. The transmission is DC blocked. Failsafe
relays are used for switching. In the case of power loss, the primary input port
("In A") is routed to the output port. For measurement purposes, the monitoring
output port ("Monitor") is available.
