User Manual DEV 1951
52 Copyright DEV Systemtechnik GmbH 2004-2017
This type of panel (within the appearing structuring entry "Distribution Amplifier") is
available only for devices with installed distribution amplifier module(s) for ASI/SDI
signals, i.e. this screenshot was taken from a DEV 1951 in a different configuration.
The panel consists of two sections:
1) In the upper section below the descriptive designator (here: "Amp 2"), first the
"Port Number" of the module is shown as a reference to the index of the SNMP
.portTable (please refer to chapter 5.9.4.3.9) and if port specific events are to be
identified in the Events Tab (chapter 5.5.5). Then the "Module Type" is listed (here:
"DEV 14-0091"). Finally, the "Signal Status" is an assessment regarding the detected
signal quality that can be either "Fail" (red) or "OK" (green).
2) In the "Setup" section, the "Surveillance Enable" check box is used to enable (default)
or to disable events possibly caused by the related port. Note that after this
setting was altered in Local Mode (!), a click on the button is
required to apply the change.

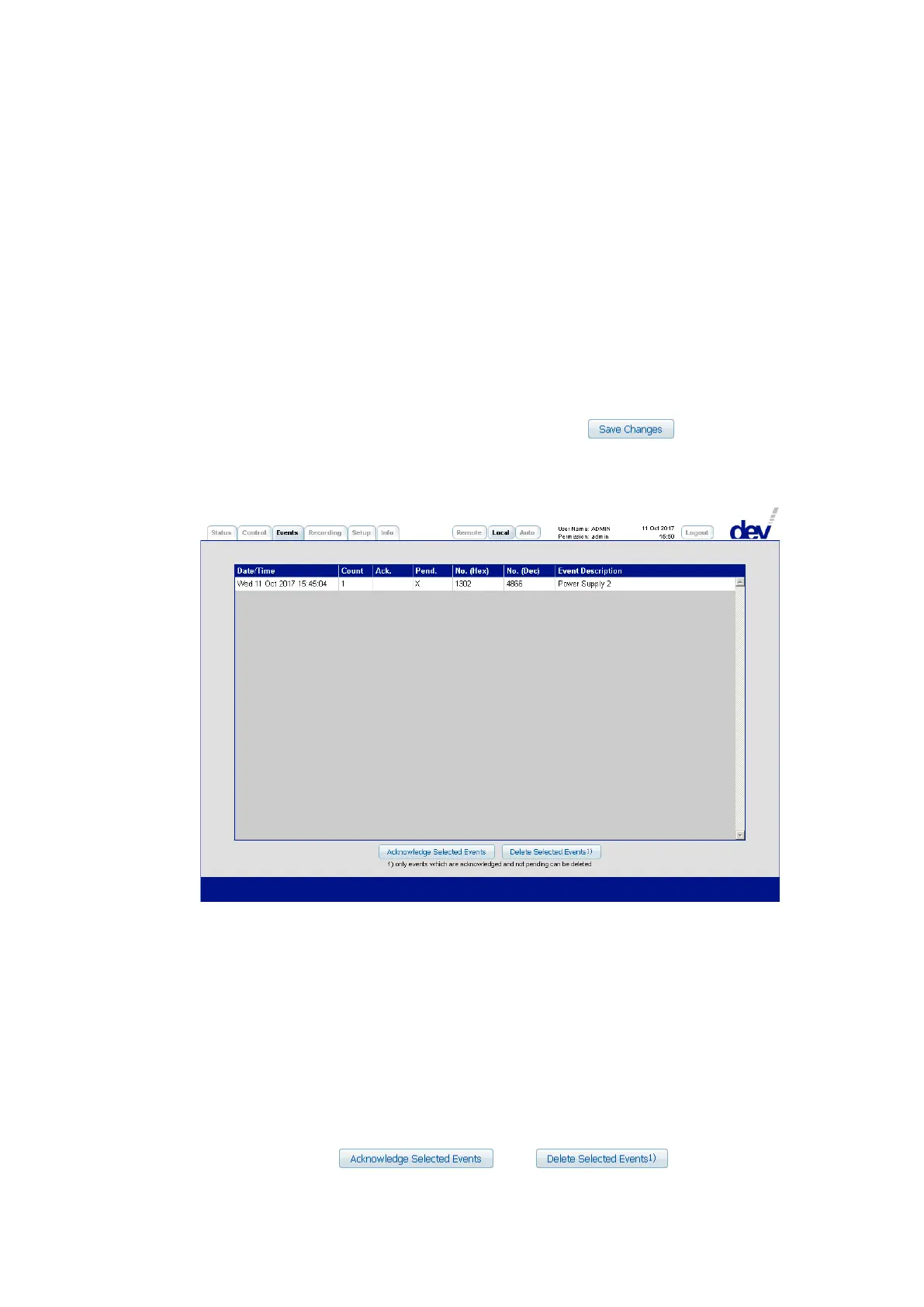

5.5.5 Events Tab
The Events Tab displays a table of the events that were detected by the device.
The different events are listed line-by-line, i.e. each event carries a Date/Time
stamp (in the format: "DDD DD MMM YYYY hh:mm:ss", here: "Wed 11 Oct 2017 15:45:04")
informing about the last occurrence of that event. The second column is a Counter
reporting the number of occurrences of that event (here: "1"). The third column
denotes whether that event is Ack.nowledged ("X") or not (" ") (here: " ", i.e. <space>,
meaning not acknowledged). The fourth column shows whether that event is
Pend.ing ("X") or not (" ") (here: "X", i.e. pending). The fifth and the sixth columns
inform about the error code No. in Hexadecimal (here: "1302") and in Decimal (here:
"4866") notation; the last column reports the related Event Description (here:
"Power Supply 2"), please refer to chapter 6.2.
Below, the buttons and are located:
