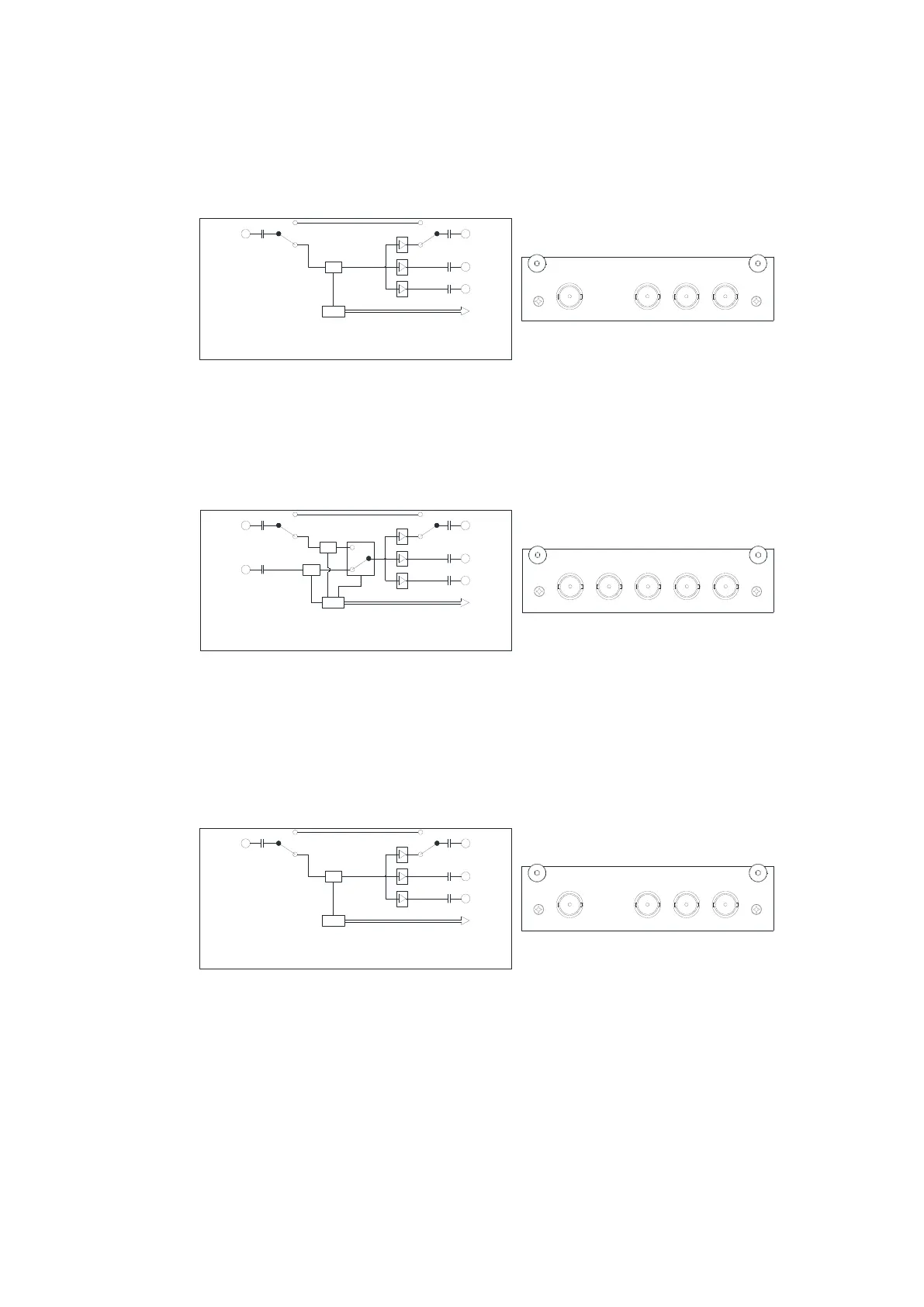

3.2.21 DEV 14-0091
Distribution Amplifier 1:3; ASI; 75 Ohm, BNC (f)
Out 1
Pos 0: without electrical pow er
Pos 1: with electrical pow er
(state show n here)
Out 2
In
Out 2
External
Controller
Logic
CD
1
0 0
1
In Out 1 Out 2 Out 3
DEV 14-0091
The module is designed to distribute and to amplify ASI signals. Normally the input
signal is routed to the three separately amplified output ports. In the case of power
loss, the input signal is routed only to the first output port ("Out 1") and the other
output ports do not carry any signal.
3.2.22 DEV 14-0093
DPST Switch Module with DA 1:3; ASI / 3G-SDI; 75 Ohm, BNC (f)
Out 1
Pos 0: without electrical pow er
Pos 1: with electrical pow er In A selected
Pos 2: with electrical pow er In B selected
(state shown here)
Out 2
In A
In B
Out 3
External
Controller
Logic
CD
CD
1,2
0 0
1,2
2
1
In A In B Out 1 Out 2 Out 3
DEV 14-0093
The functionality of the module DEV 14-0093 is identical with the module
DEV 14-0087 (please refer to chapter 3.2.19), but the module is designed for
SD-SDI, HD-SDI, and 3G-SDI signals in addition to ASI signals.
Note:
 Output port 1 ("Out 1") delivers an inverted ASI signal!
3.2.23 DEV 14-0095
Distribution Amplifier 1:3; ASI / 3G-SDI; 75 Ohm, BNC (f)
Out 1
Pos 0: without electrical pow er
Pos 1: with electrical pow er
(state show n here)
Out 2
In
Out 2
External
Controller
Logic
CD
1
0 0
1
In Out 1 Out 2 O ut 3
DEV 14-0095
The functionality of the module DEV 14-0095 is identical with the module
DEV 14-0091 (please refer to chapter 3.2.21), but the module is designed for
SD-SDI, HD-SDI, and 3G-SDI signals in addition to ASI signals.
Note:
 Output port 1 ("Out 1") delivers an inverted ASI signal!
