3.2.2 DEV 11-0009

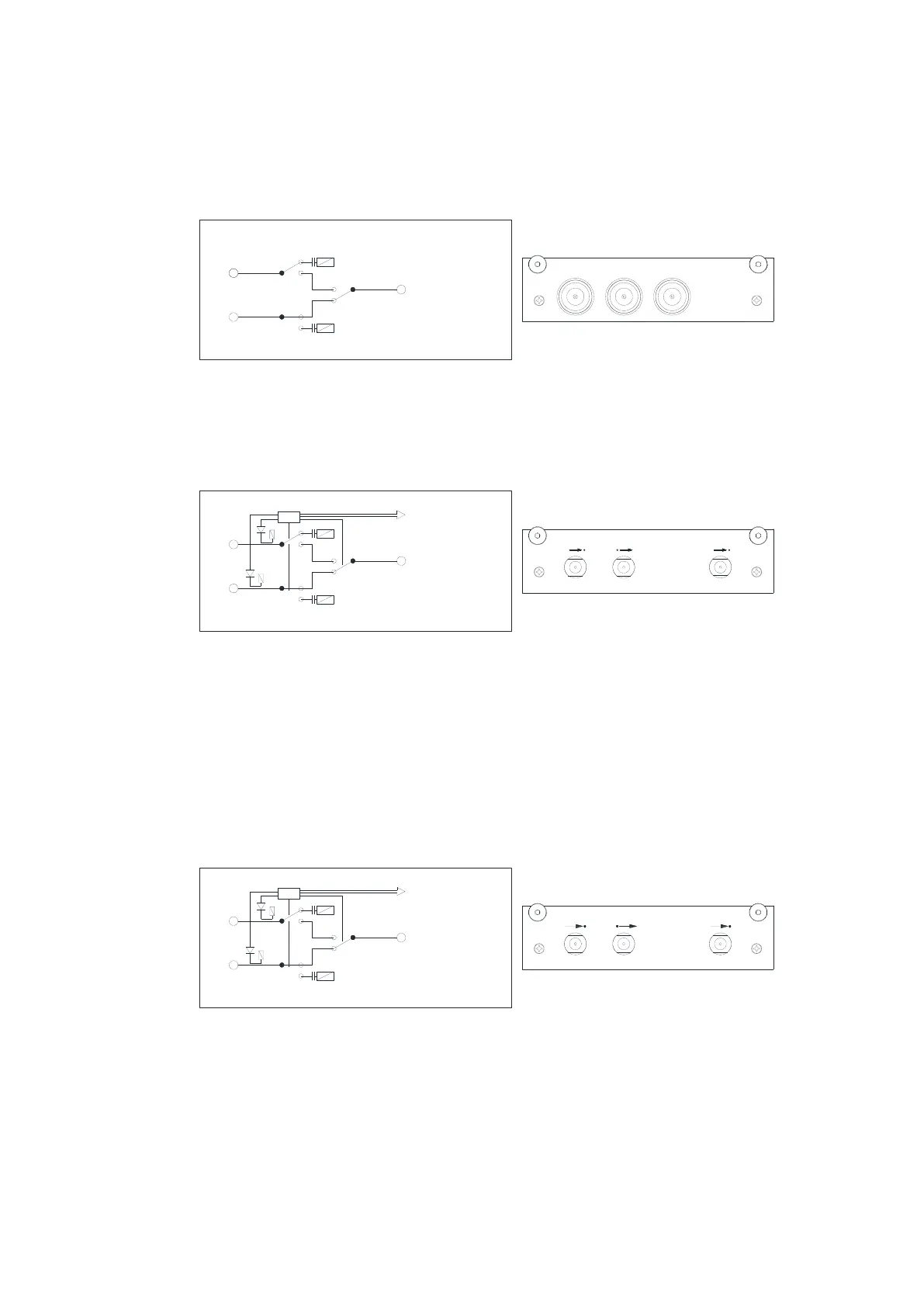

DPST Switch Module; DC…2500 MHz; 50 Ohm, N (f)
In A
In B
Out
OutIn B In A
DEV 11-0009
The common port ("Out") can be switched to one of two input/output ports ("In A",
"In B"). The unused input/output port is terminated internally. Latching relays are
used for switching.
3.2.3 DEV 11-0010
DPST Sensing Switch Module; DC, 950…2150 MHz; 75 Ohm, F (f)
Logic
Out
In A
In B
External
Controller
In A
Out
In B
DEV 11-0010
Two input ports ("In A", "In B") can be switched to one output port ("Out"). The
unused input port is terminated internally. The module is able to pass an external
10 MHz reference signal.
The module provides RF level monitoring, i.e. the RF level of both input ports is
measured and is compared with (adjustable) RF threshold levels. This enables the
functionality to indicate an event (if the present input signal levels are below a
threshold level), and/or permits the DEV 1951 to control the switching
autonomously.
3.2.4 DEV 11-0011
DPST Sensing Switch Module; DC, 47…1006 MHz; 75 Ohm, F (f)
Logic
Out
In A
In B
External
Controller
In A
Out
In B
DEV 11-0011
The functionality of the module DEV 11-0011 is identical with the module
DEV 11-0010 (please refer to chapter 3.2.3), but the module is designed for a
different frequency range.
