Starting Milling
28
Chapter 2 Milling

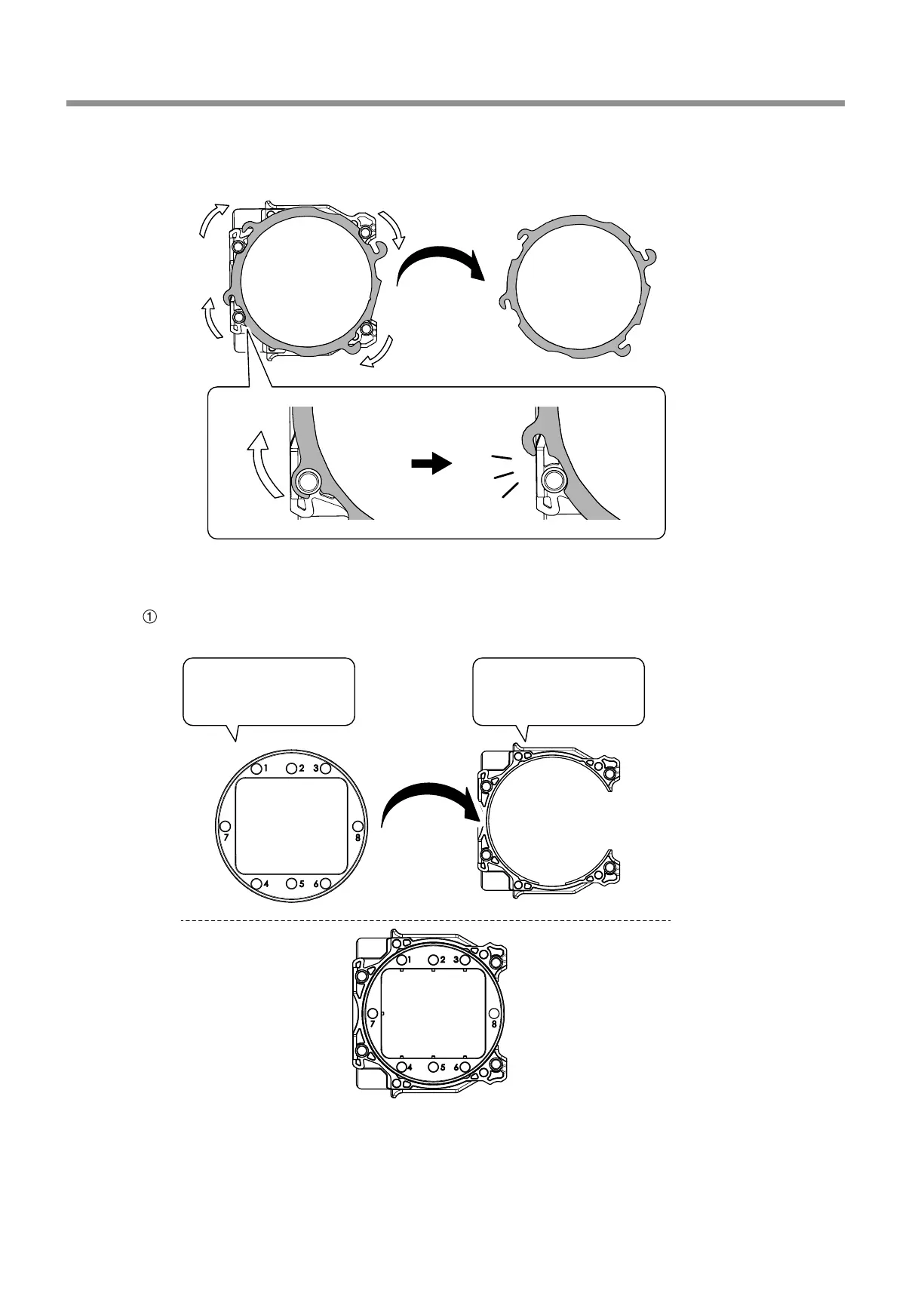

Remove the adapter cap.
Turn the adapter cap in the direction of the arrows to remove it.
Mount the pin‑type workpiece adapter on the adapter base.
Orient the pin-type workpiece adapter as shown in the following gure, and then mount this adapter
on the adapter base.
Pin‑type workpiece adapter
Orient this part so that you can
read the numbers.
Adapter base
Orient this part so that it
looks like a "C."
