Starting Milling
29
Chapter 2 Milling

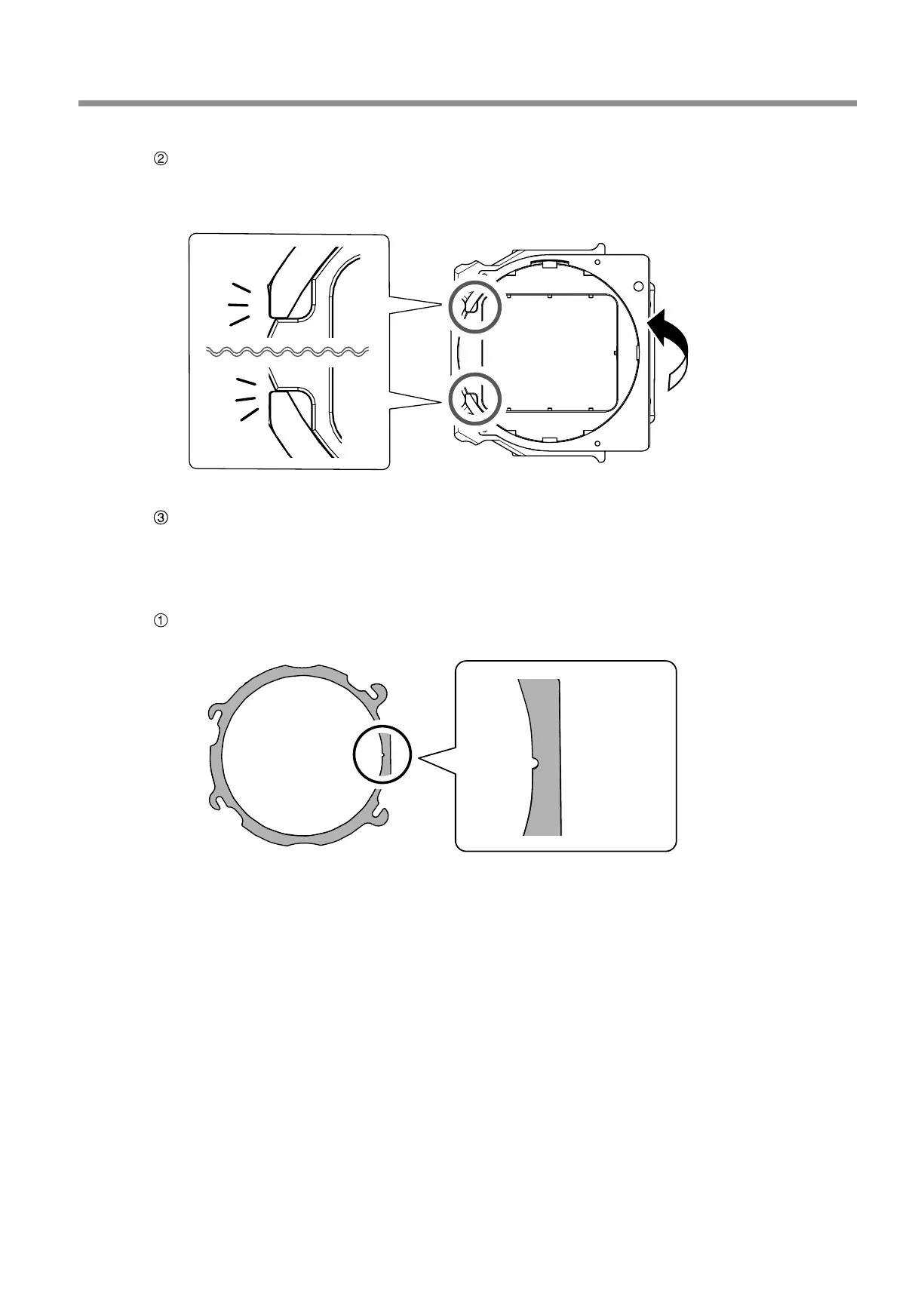

Turn over the assembly prepared in step 1, and then align it with the positions shown in the gure.
Align the recessed portion with the
protrusion.
Check whether the pin‑type workpiece adapter has been mounted on the adapter base without any
gaps.
If the adapter wobbles, check the position in step 2 again.
Attach the adapter cap.
Orient the adapter cap removed in step
as shown in the following gure.
Align the notched
part on the right
side.
