Virtual Private Networks (VPN) Generic Routing Encapsulation (GRE)

Digi Connect IT® 16/48 User Guide

316

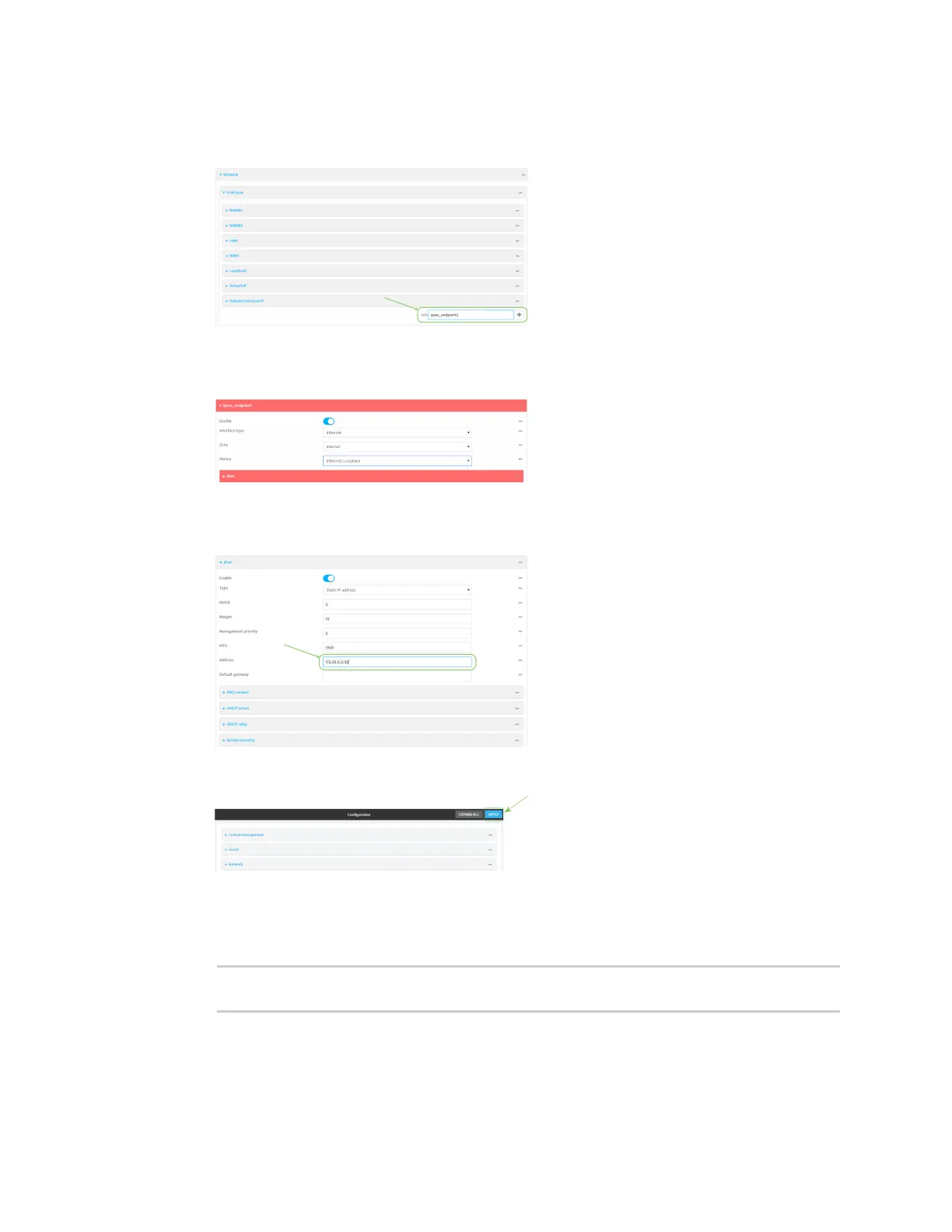

1. Click Network > Interfaces.

2. For Add Interface, type ipsec_endpoint2 and click .

3. For Zone, select Internal.

4. For Device, select Ethernet: loopback.

5. Click to expand IPv4.

6. For Address, type the IP address of the local GRE tunnel, 172.30.0.2/32.

7. Click Apply to save the configuration and apply the change.

Command line

1. At the command line, type config to enter configuration mode:

> config

(config)>

Default Chapter9
