Configure Remote Power

Management

Configure the Connect IT to connect to a power controller using a serial

port

Digi Connect IT® 16/48 User Guide

Connect a 3rd-party device to the Connect IT serial port and the

power controller

The final step is to complete the connection between the power controller, the Connect IT, and the

3rd-party device that you want to manage from the Connect IT.

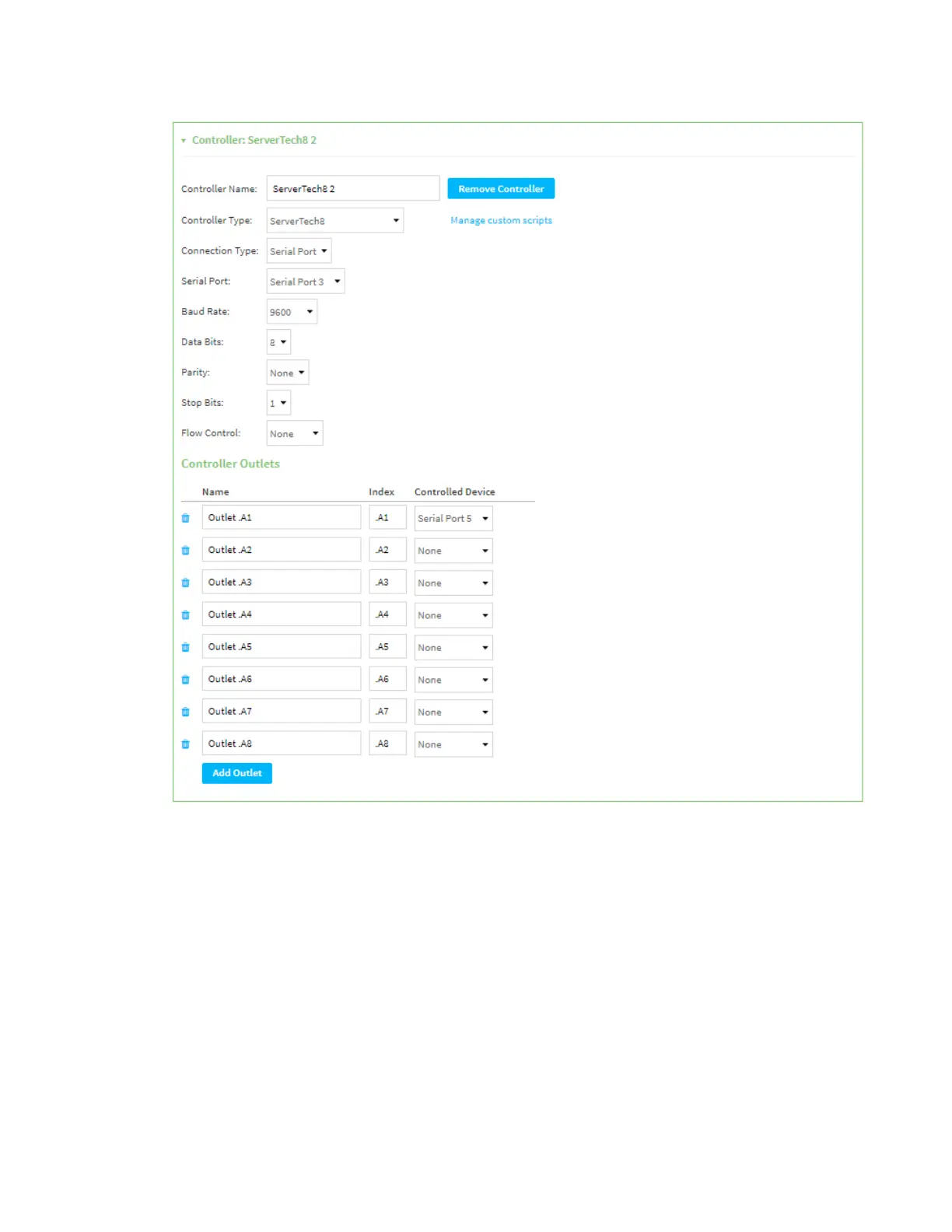

In this example, you configured outlet 1 for use with serial port 5 on the Connect IT.

1. Make sure the power controller is connected to the correct serial port on the Connect IT. See

Connect a power controller to the Connect IT serial port.

2. Connect one end of a serial cable to the serial port on the Connect IT that is configured to

communicate with a 3rd-party device plugged into the power controller. In this example, serial

port 5 is configured to communicate.
