PCB design and manufacturing Recommended footprint and keepout
XBee®/XBee-PRO SX RF Module User Guide
200
Recommended footprint and keepout
We designed the XBee/XBee-PRO SX RF Module for surface-mounting on the OEM printed circuit board
(PCB). It has castellated pads around the edges and one ground pad on the bottom. Mechanical
drawings includes a detailed mechanical drawing.

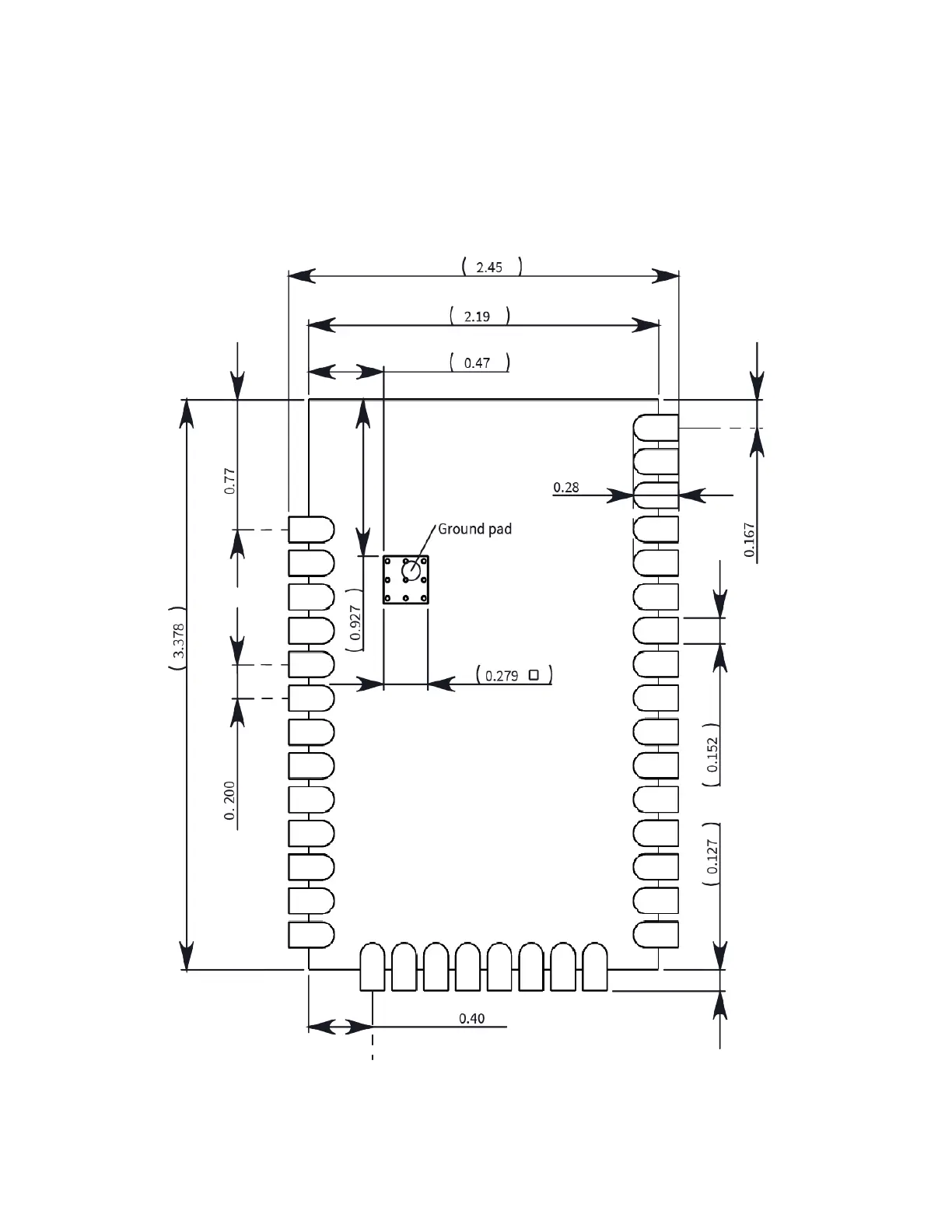

We recommend that you use the following PCB footprint for surface-mounting. Dimensions are in
centimeters.
