Digital Dream Standalone Motion Controller DDCS-Expert Users ManualPage-14
Shows MPG setting status.As the following figure shows, the MPG current setting is X10,in Y
axis; “-54” block is the calculator of wheels turnning step; “0” block shows the the current
cursor position.
So now we finished the indroduction on the IO port.Only when the users understand how to
set the IO port and how to inspect the IO page,it will help us on Wiring.
Here we move the X axis to touch the limit switch, but status light doesn’t light up.So the
Status shows the signal is active or not, the IN01-IN24 Block shows the port is conducting or not.
Column 3:
Column 6: Open the output signal;
Column 7: Close the output signal;
Column 8: Change the Polarity to the reverse.

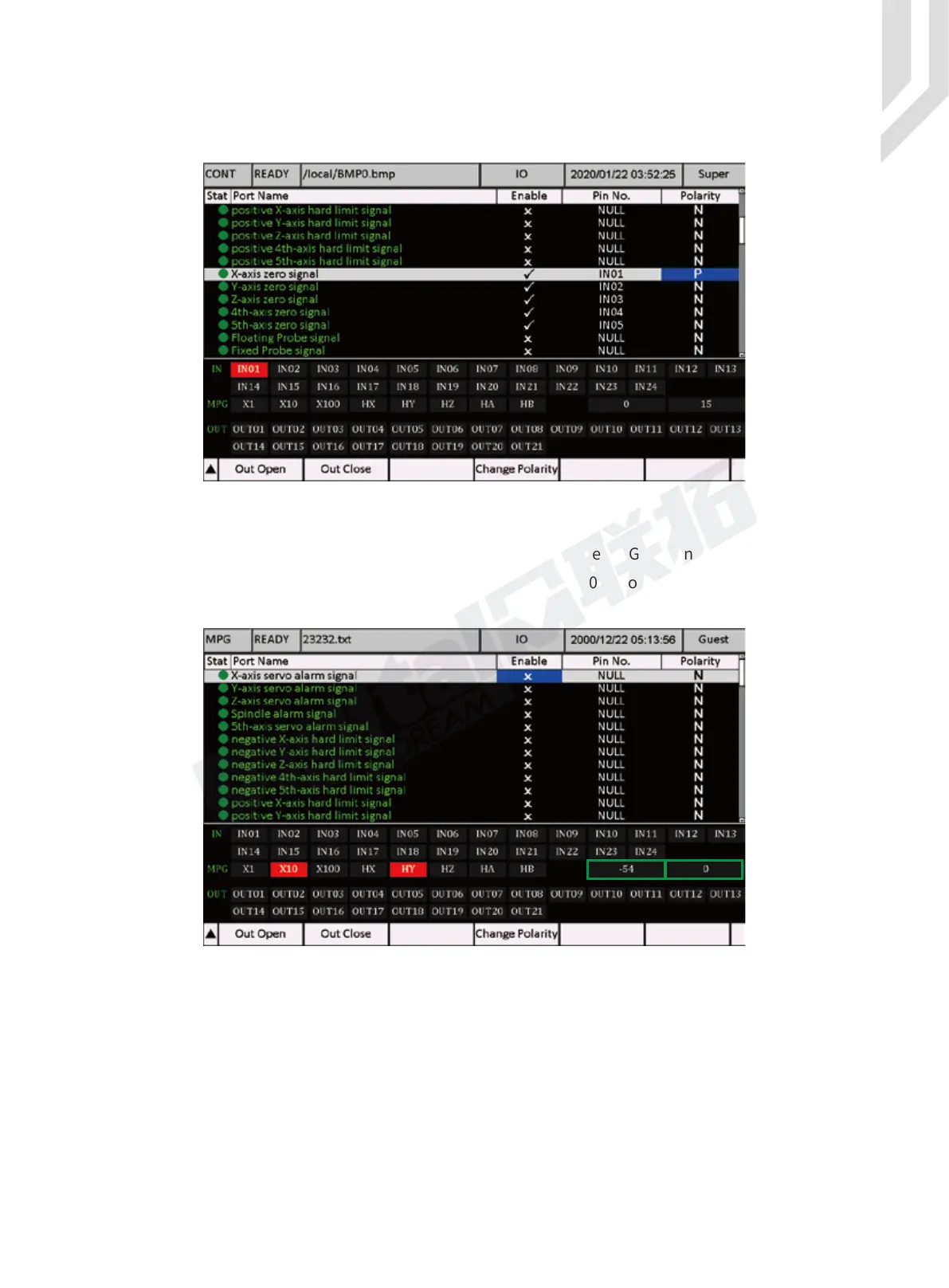

Figure 3-6 The Signal is not active but port in conducting
Figure 3-7 MPG Input Page
