1.3 Appearance, Structure and Size of Product
The DDCS-Expert is a small box that can fit in a window of a small control box or control
cabinet. Four locking hooks fix this controller from the frame. The dimension you find in Figure
1-1 and Figure 1-2.
The front panel is 268mm*172.5mm*5.2mm；
The main body is 268mm*172.5mm*70mm；
To mount the unit in an equipment cabinet, cut the hole 258.4mm*109mm

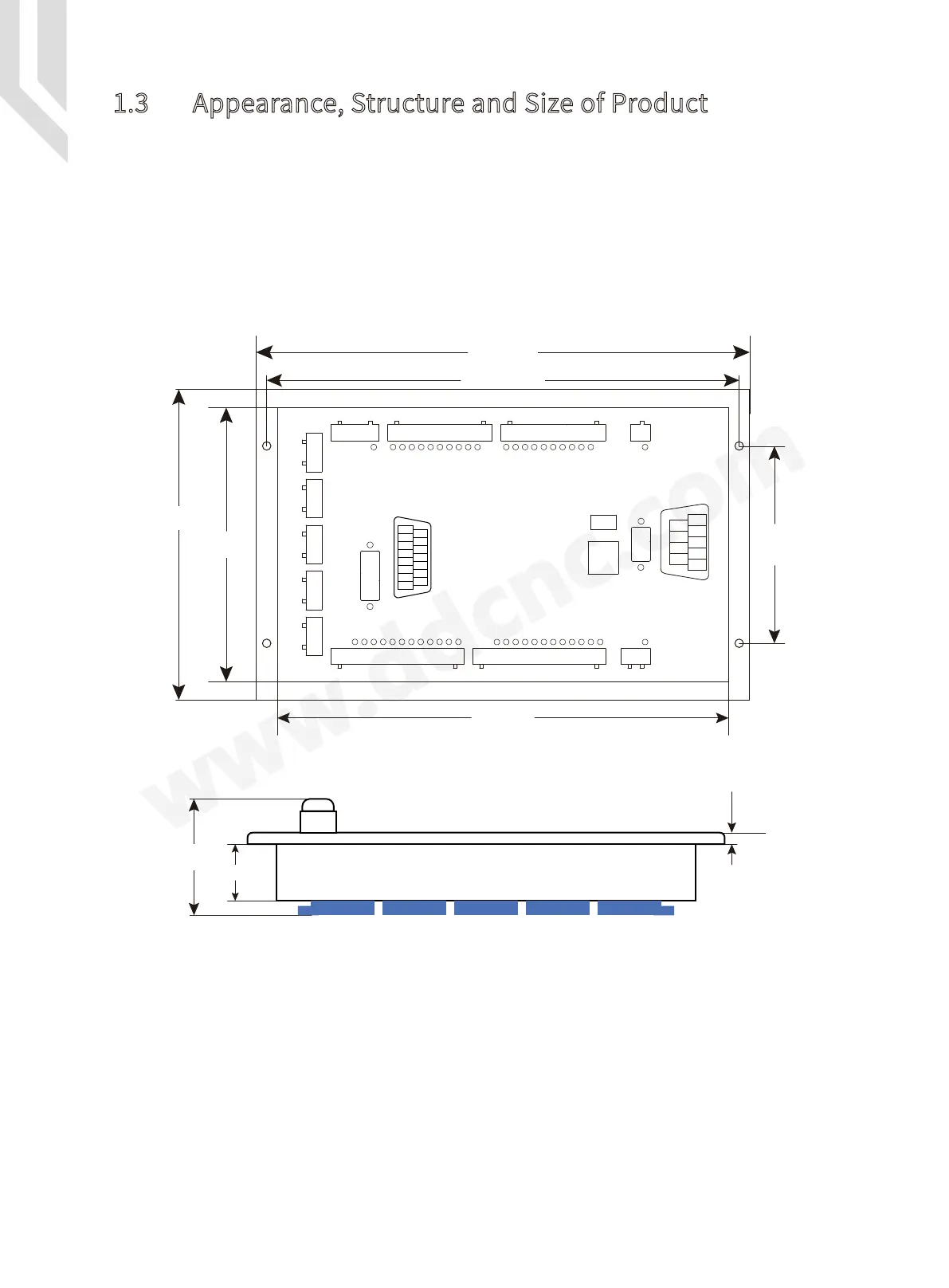

Figure 1-1 DDCS-Expert(DDCSE) Back view and dimensions
Figure 1-2 (DDCSE) Side view and dimensions

Digital Dream DDCS-Expert Specifications

General

Brand	Digital Dream
Model	DDCS-Expert
Category	Controller
Language	English
