Digital Dream Standalone Motion Controller DDCS-Expert Users Manual
Page-62

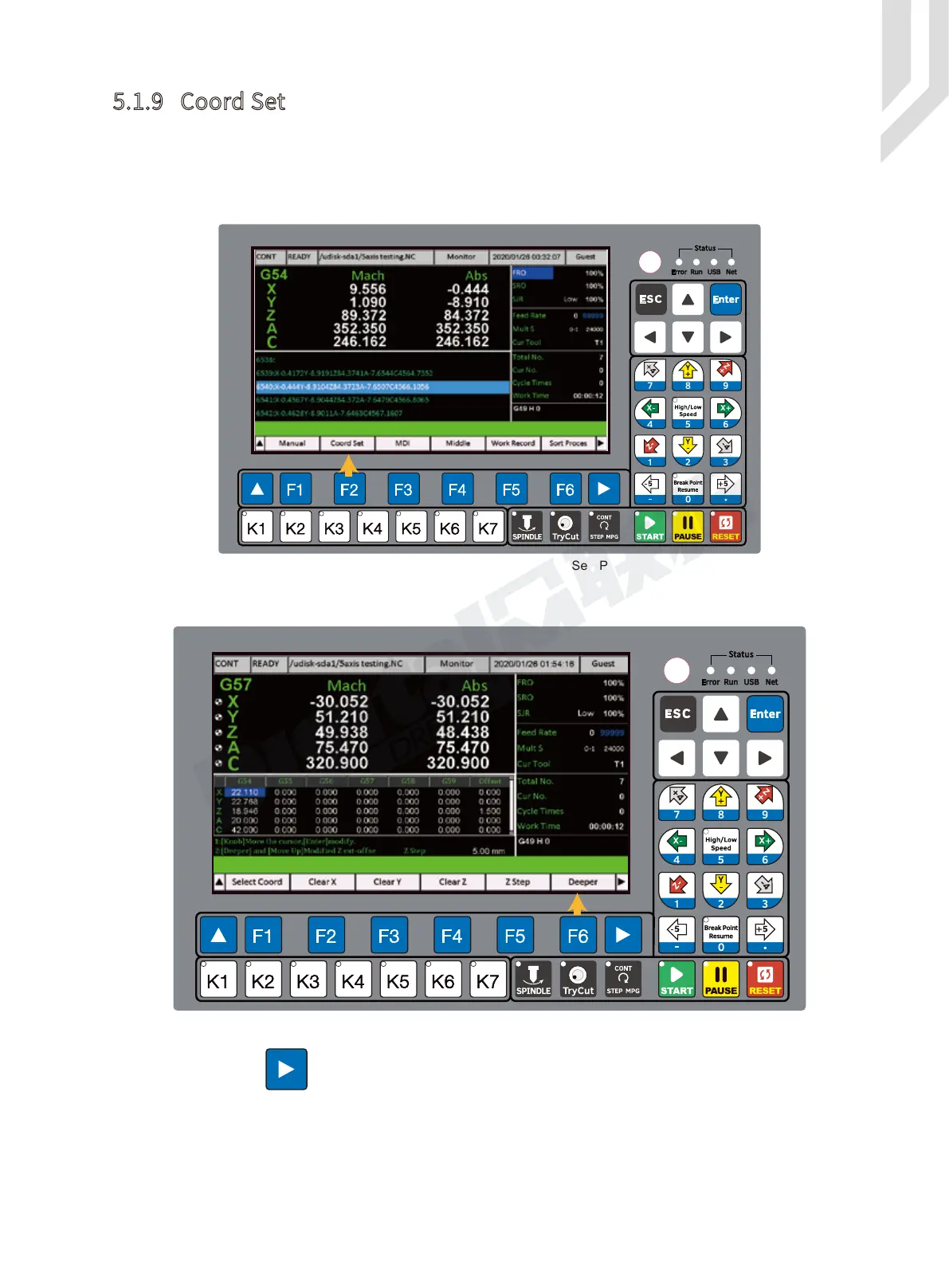

5.1.9 Coord Set
Then we press F2 key to go to “ Coord Set ” Page. In the Coord Set Page, we can Select coor-
dinate, and also we can edit the offset between the G54 / G55 / G56 / G57 / G58 / G59 and Mach-
anical Coordinate.
In the first Page, there is functions as:Select Coord / Clear X / Clear Z / Z Step / Deeper:
We Press the Key to go to the second page of Coord Set:
Figure 5-81 Press F1 key to “Coord Set” Page
Figure 5-82 First Page of Coord Set
