Digital Dream Standalone Motion Controller DDCS-Expert Users ManualPage-23
In the IO port Page, we already define the Out20 as “ Spindle section speed 1 ”,Out 19 as “
Spindle section speed 2 ”,Out18 as “ Spindle section speed 3 ”.The the wiring for the
Multi-Speed Spindle as follolwing:

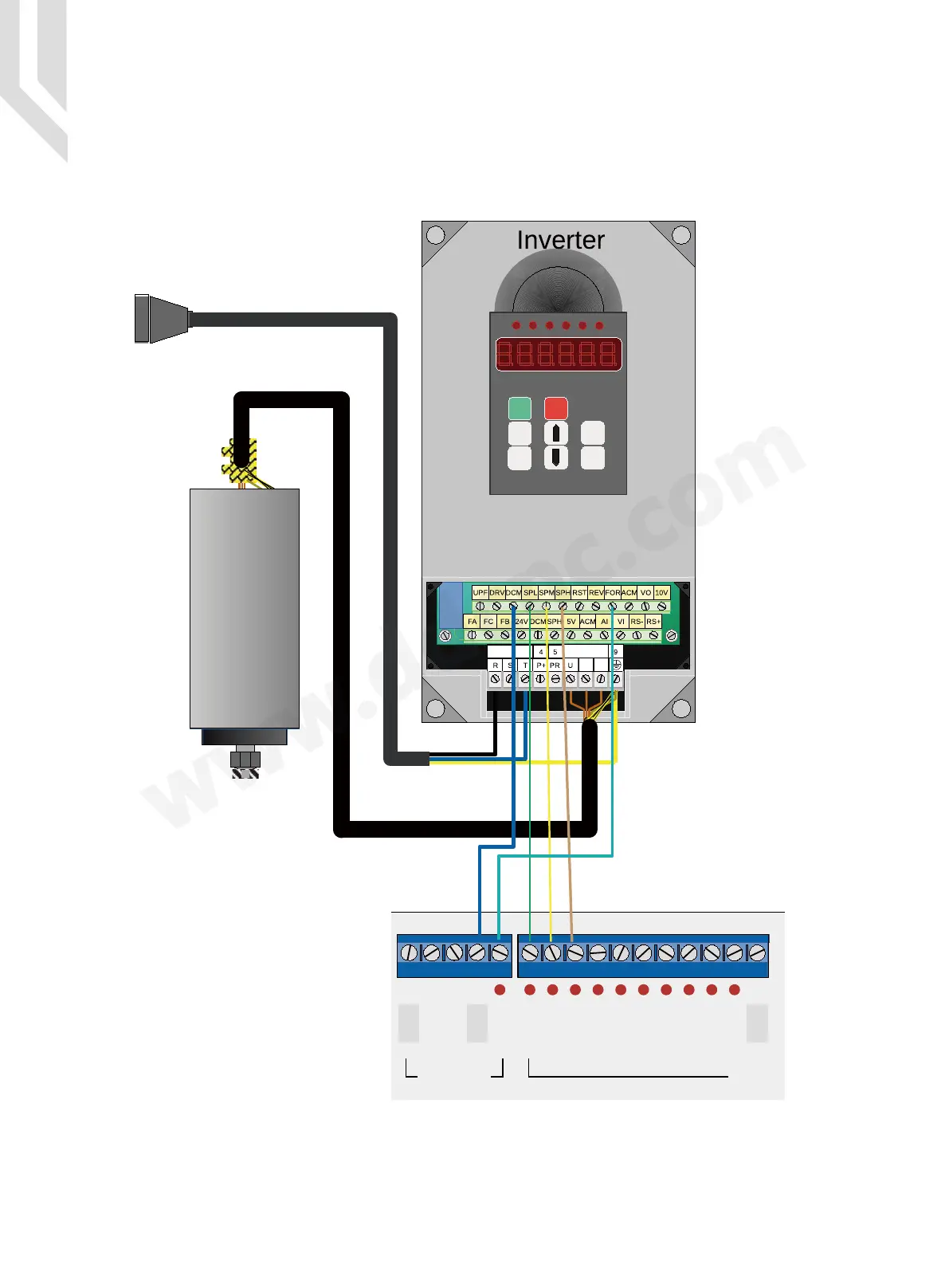

Figure 4-11 The Wiring for the Multi-Speed Spindle
Spindle
Motor
V W
ACM
PWM VSO
COM- COM-
FOR
OUT20 OUT19 OUT18
OUT17
OUT16 OUT15
OUT14
OUT13 OUT12
OUT11
OUTPUTSpindle
