Digital Dream Standalone Motion Controller DDCS-Expert Users ManualPage-43

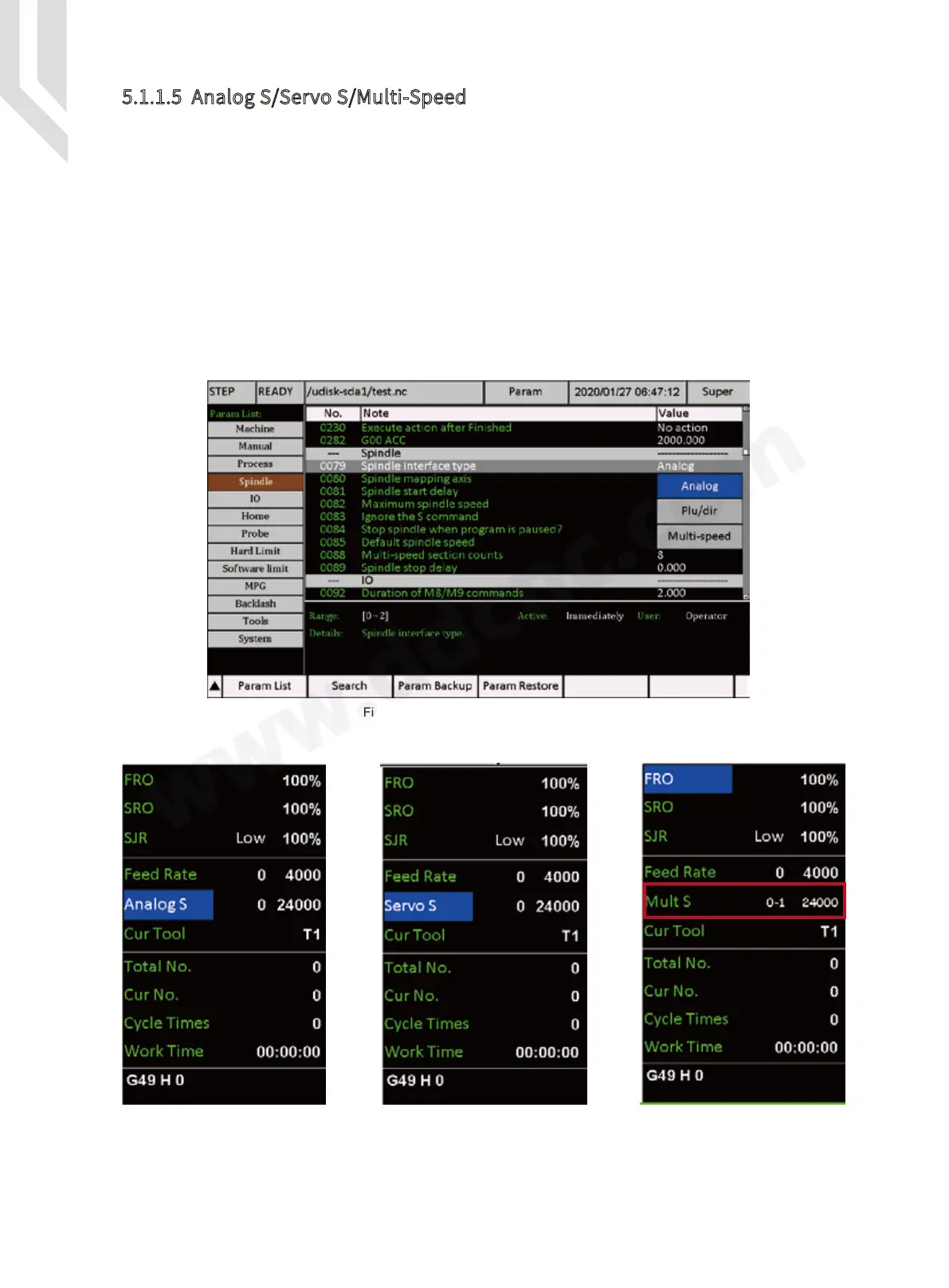

Figure 5-29 3 different spindle modes
Figure 5-30 Spindle in Analog Mode Figure 5-31 Spindle in Pul/Dir Mode Figure 5-32 Spindle in Multi-Speed Mode
5.1.1.5 Analog S/Servo S/Multi-Speed
Because DDCS-Expert Controller has three kind Spindle Mode:
1) Analog: When the controller control the spindle speed by the anolog 0-10V voltage
output;
2) Plu/Dir: When define the spindle mode as the Servo Spindle;
3) Multi-Speed ( Multi Spindle Speed ): When the controller control the spindle speed by 3
input ports, this is Multi spindle speed control.
Go to the Param Page and find the #79 parameter,press Enter,there are 3 options.Each
option decide different spindle Mode:
To Next Page
