8-256
ENGINE ELECTRICAL - Ignition System

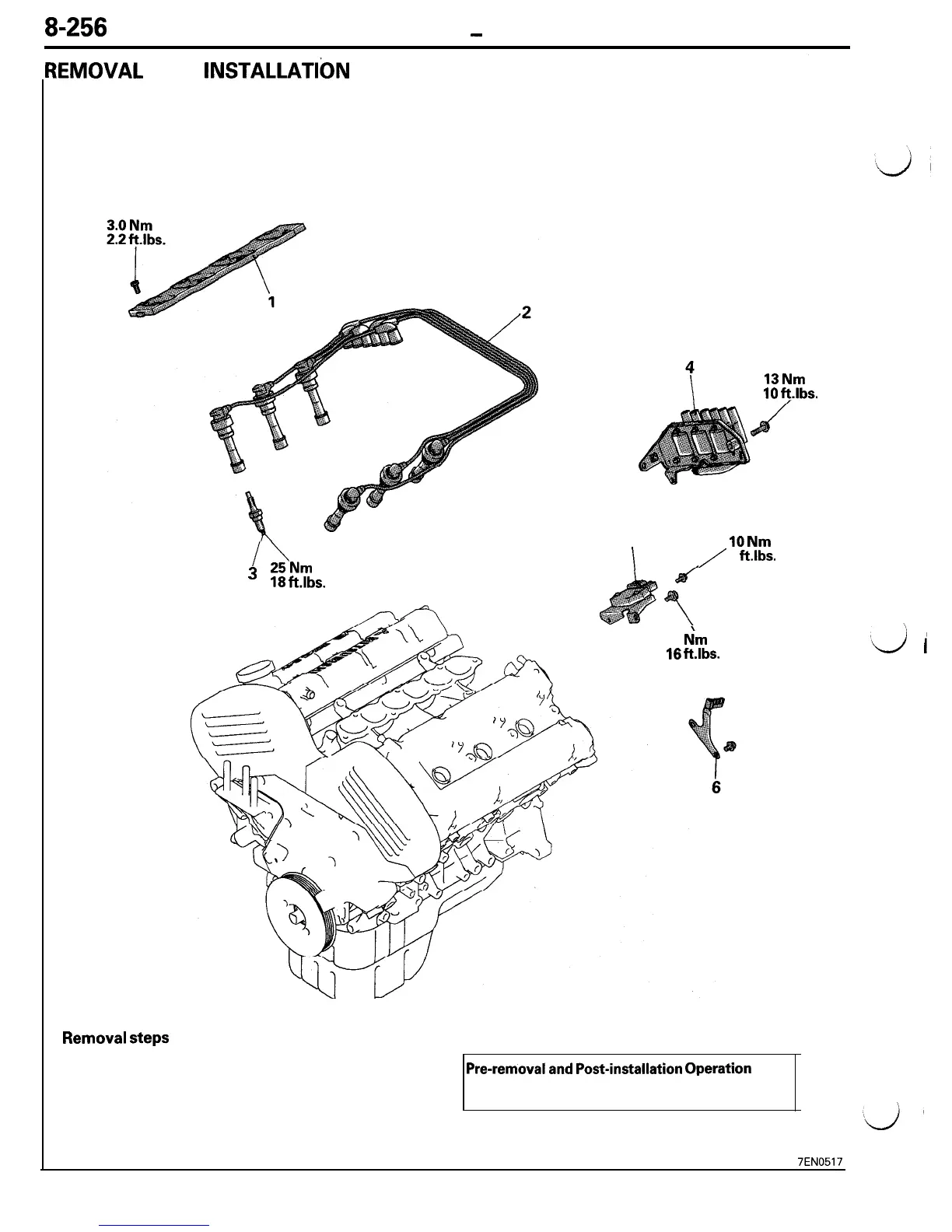

IEMOVAL AND INSTALLATlbN <DOHC>
I\
3 25Nm
18 ft.lbs.
13 Nm
10 fS.lbs.
5
10 Nm
I
/
8 ftlbs.
22 N\m
16 ft.lbs.
Removal steps
1. Center cover
l 2. Spark plug cable
3. Spark plug
4. Ignition coil
5. Ignition power transistor
6. Clamp
Pre-removal and Post-installation Operation
l Removal and Installation of Intake Manifold Plenum
(Refer to GROUP 11 -Intake Manifold.)
