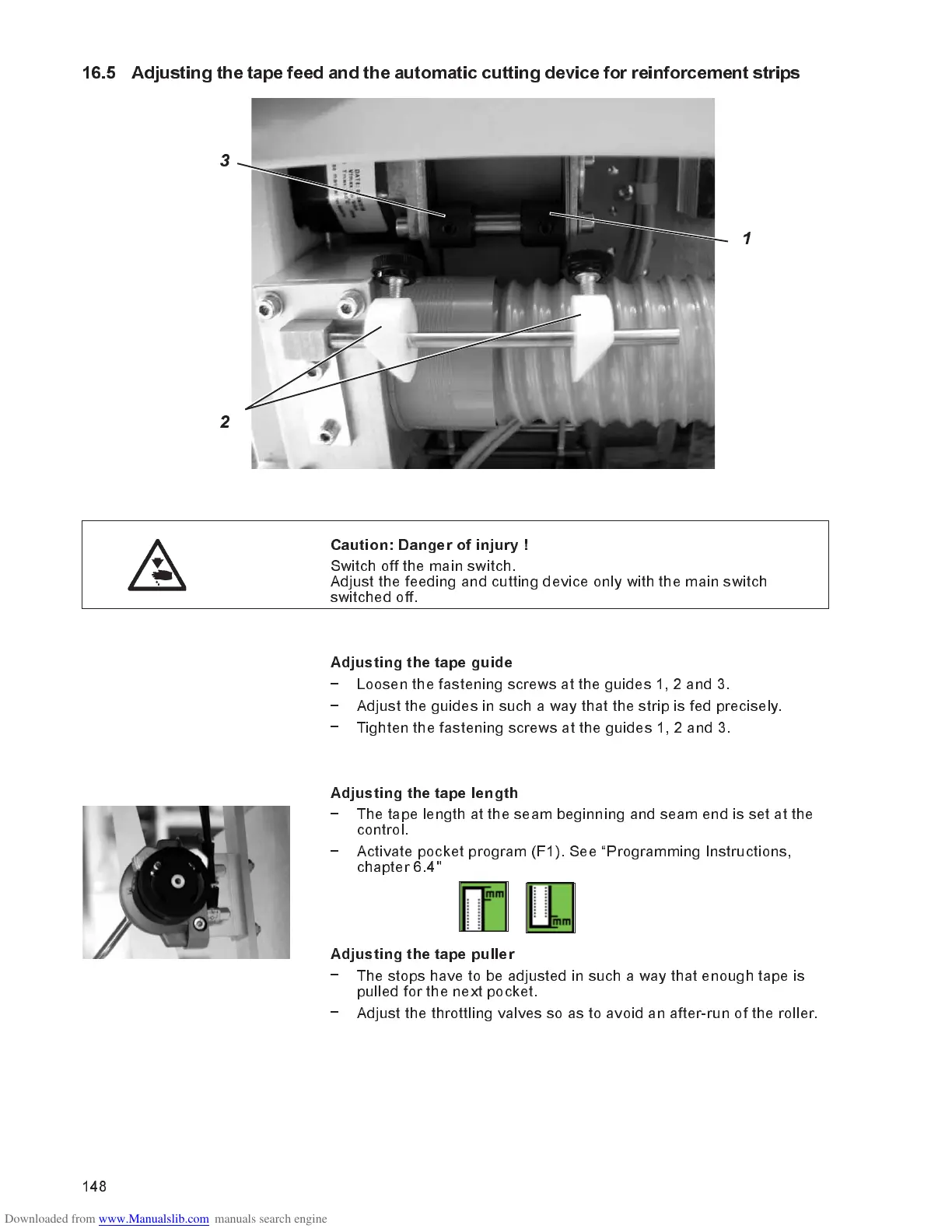

16.5 Adjusting the tape feed and the automatic cutting device for reinforcement strips
Caution: Danger of injury !
Switch off the main switch.
Adjust the feeding and cutting device only with the main switch
switched off.
Adjusting the tape guide
Loosen the fastening screws at the guides 1, 2 and 3.
Adjust the guides in such a way that the strip is fed precisely.
Tighten the fastening screws at the guides 1, 2 and 3.
Adjusting the tape length
The tape length at the seam beginning and seam end is set at the
control.
Activate pocket program (F1). See Programming Instructions,
chapter 6.4"
Adjusting the tape puller
The stops have to be adjusted in such a w ay that enough tape is
pulled for the next pocket.
Adjust the throttling valves so as to avoid an after-run of the roller.
