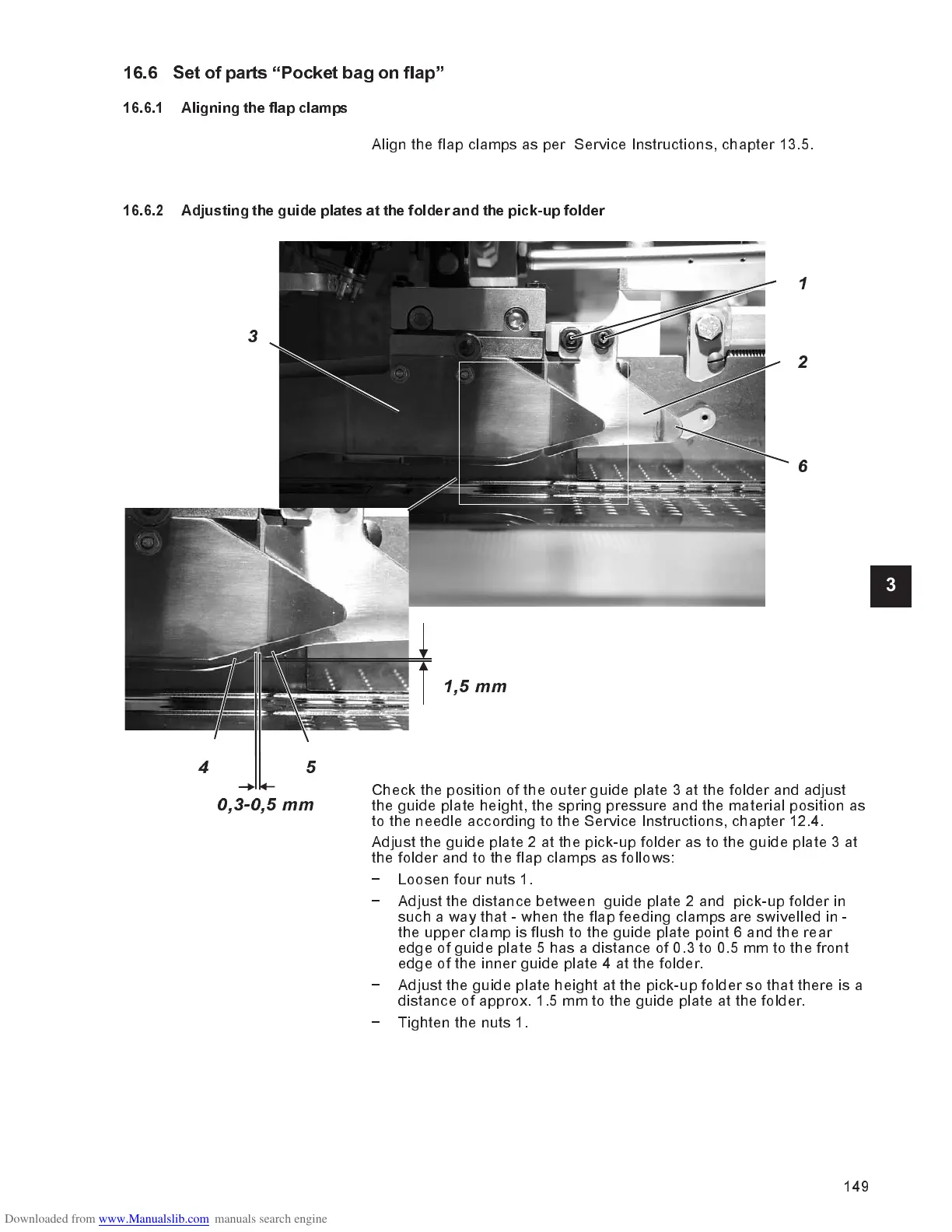

16.6 Set of parts Pocket bag on flap
16.6.1 Aligning the flap clamps
Align the flap clamps as per Service Instructions, chapter 13.5.
16.6.2 Adjusting the guide plates at the folder and the pick-up folder
Check the position of the outer guide plate 3 at the folder and adjust
the guide plate height, the spring pressure and the material position as
to the needle according to the Service Instructions, chapter 12.4.
Adjust the guide plate 2 at the pick-up folder as to the guide plate 3 at
the folder and to the flap clamps as follows:
Loosen four nuts 1.
Adjust the distance between guide plate 2 and pick-up folder in
such a way that - when the flap feeding clamps are swivelled in -
the upper clamp is flush to the guide plate point 6 and the rear
edge of guide plate 5 has a distance of 0.3 to 0.5 mm to the front
edge of the inner guide plate 4 at the folder.
Adjust the guide plate height at the pick-up folder so that there is a
distance of approx. 1.5 mm to the guide plate at the folder.
Ti ghten the nuts 1.
3
149
1
2
6
45
1,5 mm
3
0,3-0,5 mm
