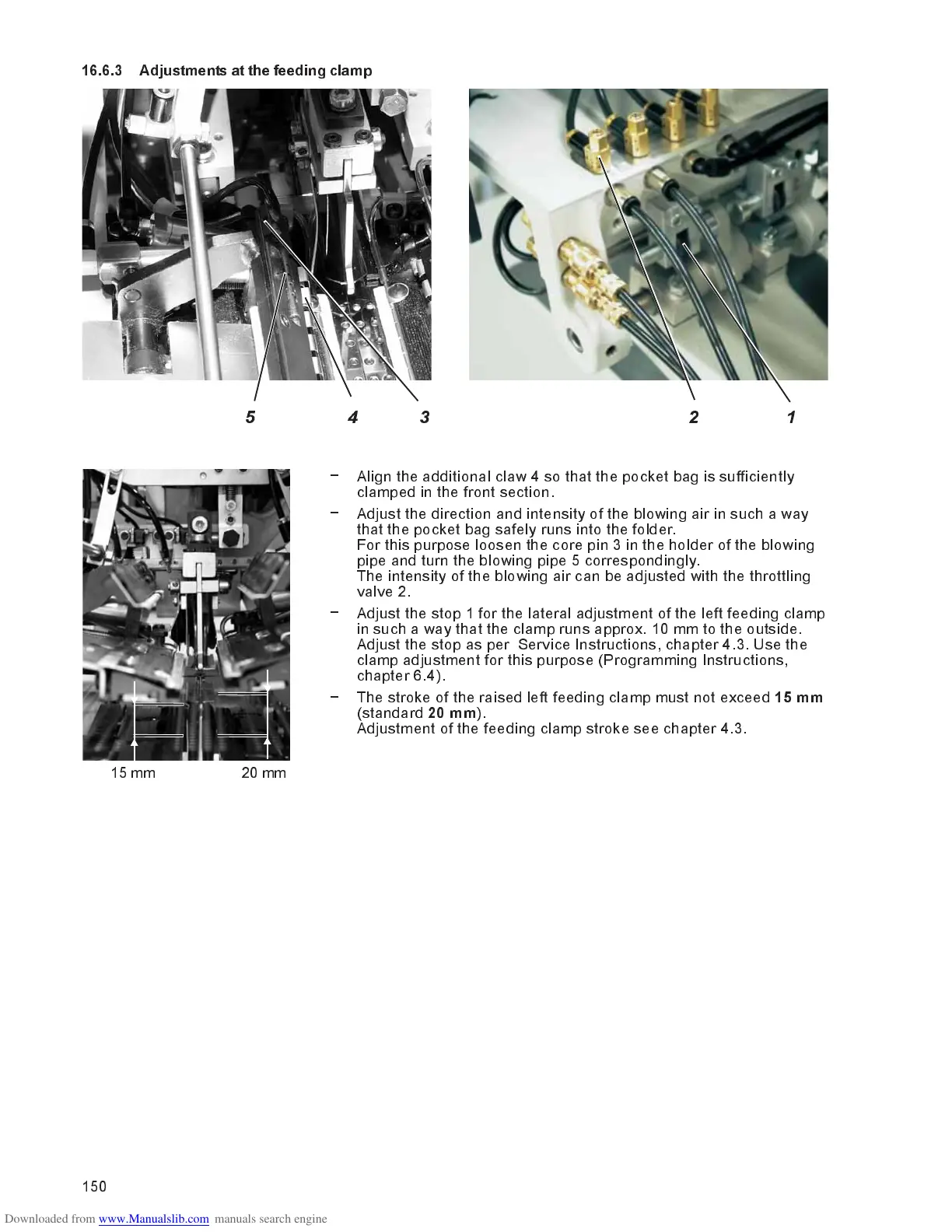

16.6.3 Adjustments at the feeding clamp
Align the additional claw 4 so that the pocket bag is sufficiently
clamped in the front section.
Adjust the direction and intensity of the blowing air in such a way
that the pocket bag safely runs into the folder.
For this purpose loosen the core pin 3 in the holder of the blowing
pipe and turn the blowing pipe 5 correspondingly.
The intensity of the blowing air can be adjusted with the throttling
valve 2.
Adjust the stop 1 for the lateral adjustment of the left feeding clamp
in such a way that the clamp runs approx. 10 mm to the outside.
Adjust the stop as per Service Instructions, chapter 4.3. Use the
clamp adjustment for this purpose (Programming Instructions,
chapter 6.4).
The stroke of the raised left feeding clamp must not exceed
15 mm
(standard
20 mm
).
Adjustment of the feeding clamp stroke see chapter 4.3.
15 mm 20 mm
150
543 21
