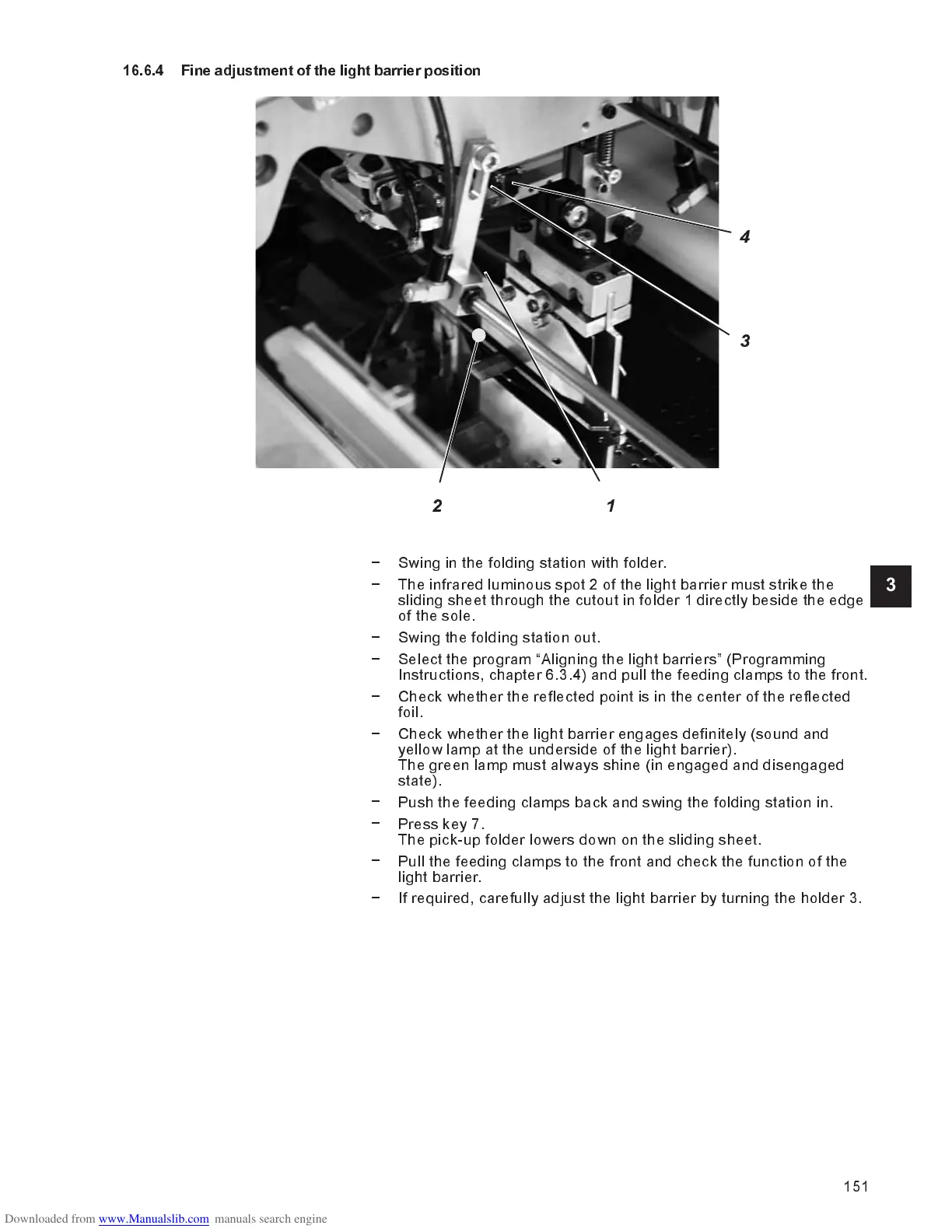

16.6.4 Fine adjustment of the light barrier position
Swing in the folding station with folder.
The infrared luminous spot 2 of the light barrier must strike the
sliding sheet through the cutout in folder 1 directly beside the edge
of the sole.
Swing the folding station out.
Select the program Aligning the light barriers (Programming
Instructions, chapter 6.3.4) and pull the feeding clamps to the front.
Check whether the reflected point is in the center of the r eflected
foil.
Check whether the light barrier engages definitely (sound and
yellow lamp at the underside of the light barrier).
The green lamp must always shine (in engaged and disengaged
state).
Push the feeding clamps back and swing the folding station in.
Press key 7.
The pick-up folder lowers down on the sliding s heet.
Pull the feeding clamps to the front and check the function of the
light barrier.
If required, carefully adjust the light barrier by turning the holder 3.
3
151
21
4
3
