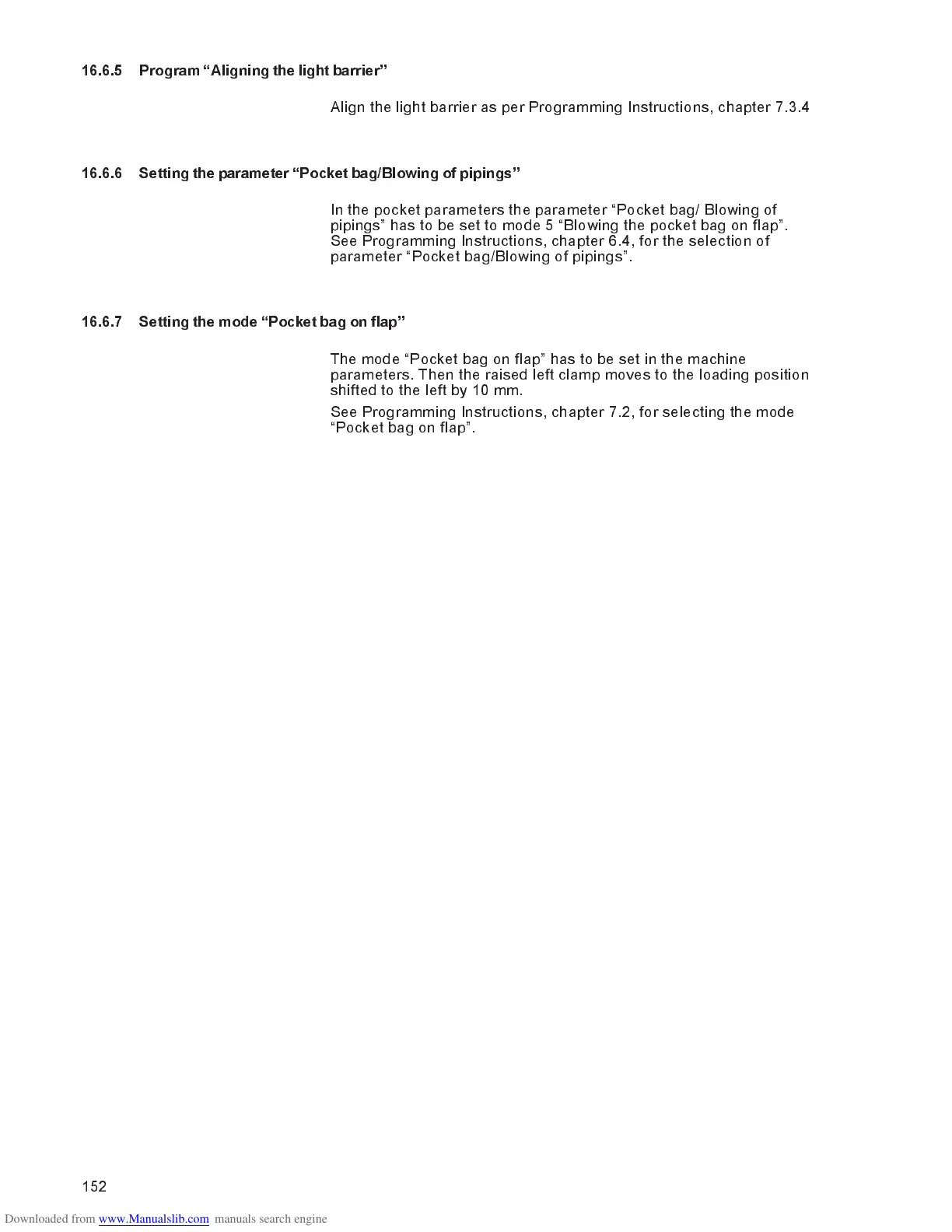

16.6.5 Program Aligning the light barrier
Align the light barrier as per Progra mming Instructions, chapter 7.3.4
16.6.6 Setting the parameter Pocket bag/Blowing of pipings
In the pocket parameters the parameter Pocket bag/ Blowing of
pipings has to be set to mode 5 Blowing the pocket bag on flap.
See Programming Instructions, chapter 6.4, for the selection of
parameter Pocket bag/Blowing of pipings.
16.6.7 Setting the mode Pocket bag on flap
The mode Pocket bag on flap has to be set in the machine
parameters. Then the raised left clamp moves to the loading position
shifted to the left by 10 mm.
See Programming Instructions, chapter 7.2, for selecting the mode
Pocket bag on flap.
152
