Setup
Operating Instructions 867-M PREMIUM - 00.0 - 02/2015 47
6. Important: Turn the adjusting screw (7) so that the frame has
even contact with the ground.
* Frame components for long arm machines have 2 cross bars,
and the other frame components have 1 cross bar.
7.4 Completing the table top
The table top is optional.
For drawings that allow you to independently assemble a table
top, refer to the Appendix, p. 87.

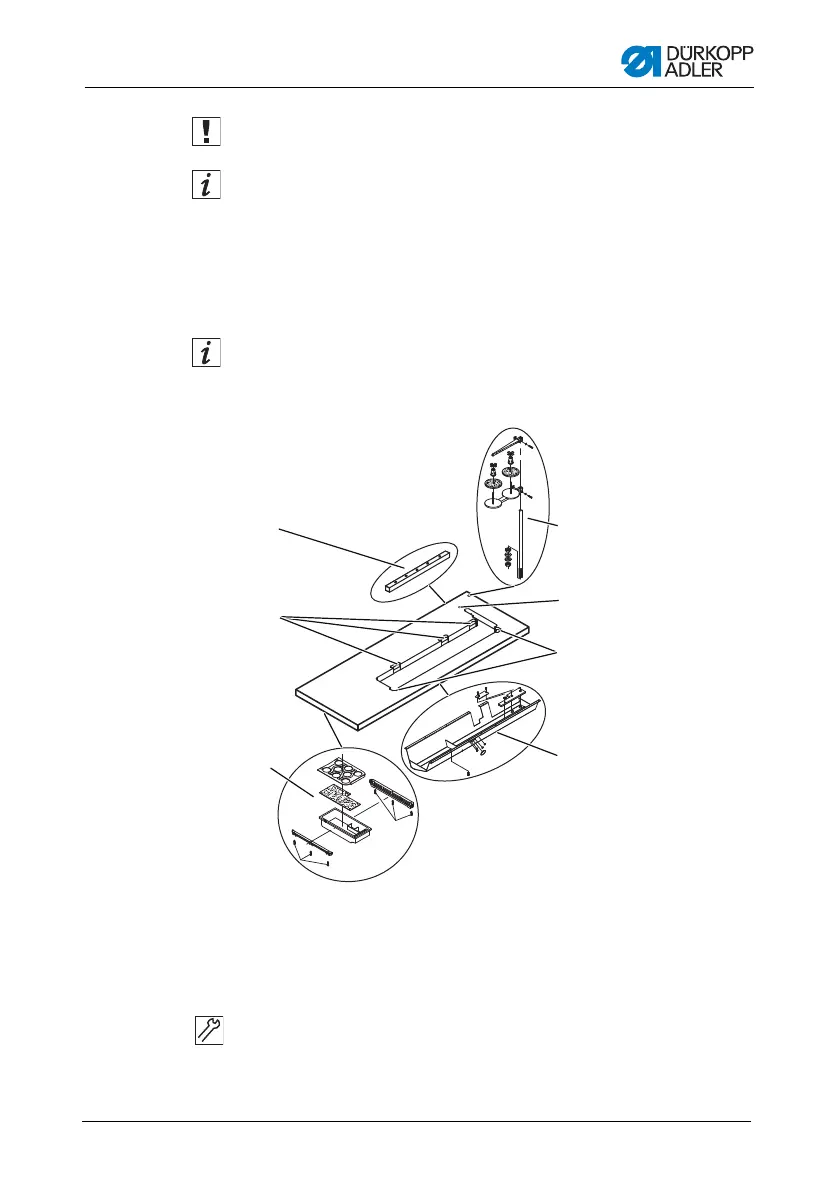

Fig. 26: Completing the table top
1. Screw the drawer (3) with the left-hand bracket to the underside
of the table top.
2. Screw the oil sump (4) in place under the recess for the
machine.
7
6
5
4
3
2
1
(1) - Cable duct
(2) - Recesses for lower
hinge parts
(3) - Drawer
(4) - Oil sump
(5) - Corner protrusions
(6) - Hole
(7) - Reel stand
