Operating Instructions 867-M PREMIUM - 00.0 - 02/201554
7.10Installing the knee switch

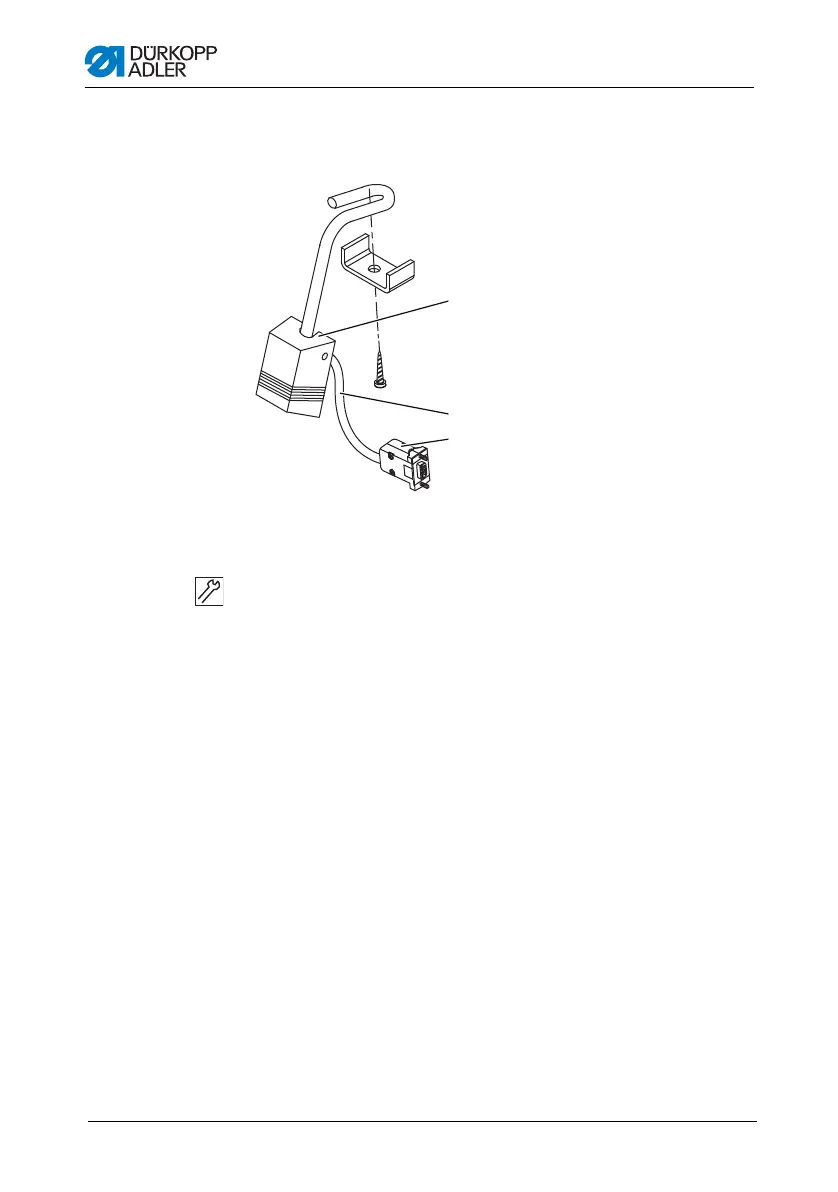

Fig. 33: Installing the knee switch
1. Screw the knee switch (1) in front of the oil sump firmly in place
under the table top.
2. Guide the connecting cable (2) to the back between the oil
sump and the controller.
3. Insert the plug (3) of the connecting cable in the socket of
the controller.
1
2
3
(1) - Knee switch
(2) - Connecting cable
(3) - Plug
