Setup
Operating Instructions 867-M PREMIUM - 00.0 - 02/201548
3. Screw the cable duct (1) to the underside of the table top.
4. Insert the reel stand (7) into the hole.
5. Fasten the reel stand (7) with nut and washer.
6. Screw the thread reel holder and the unwinding bracket onto
the reel stand (7) in such a way that they are exactly on top of
each other.
7. Insert the plug (6) in the hole.
8. Fit the lower hinge parts into the recesses (2).
9. Fit the rubber corners in the corner protrusions (5).
7.5 Fastening the table top to the frame

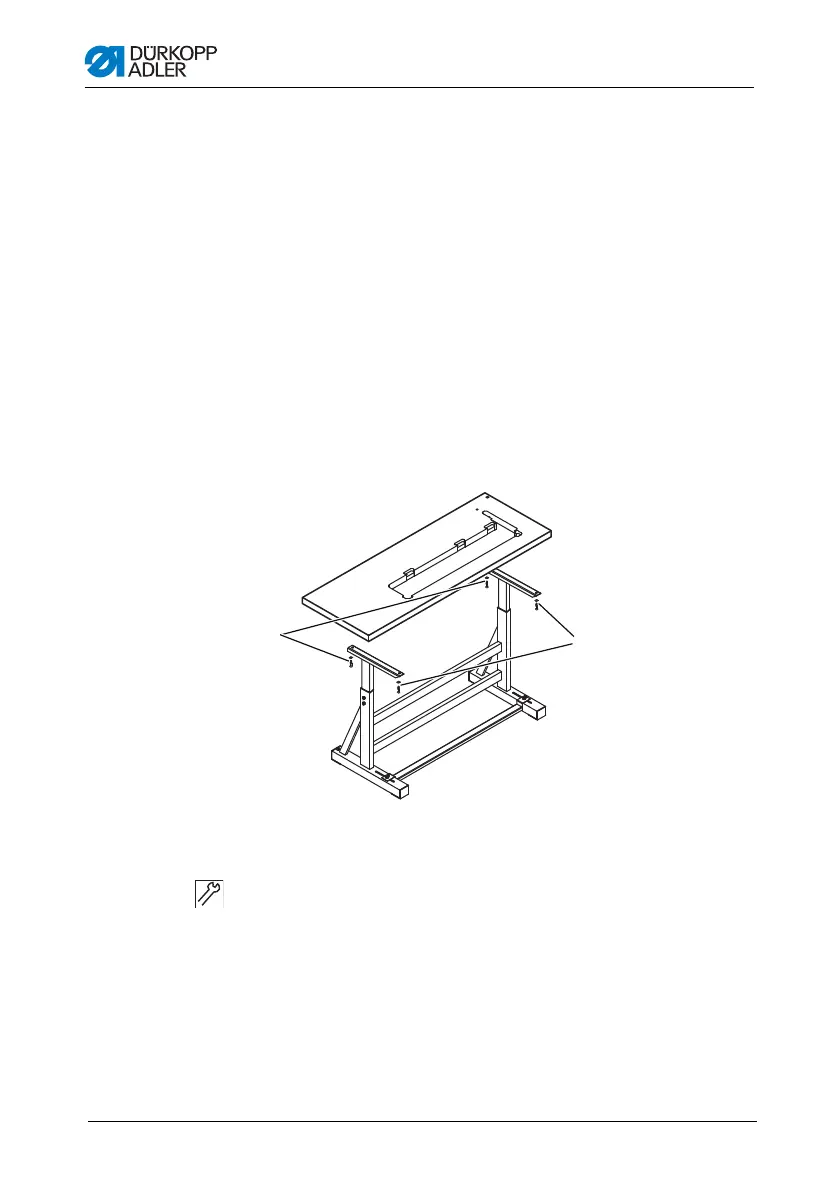

Fig. 27: Fastening the table top to the frame
1. Place the table top on the head sections of the inner bars.
2. Screw the table top firmly in place at the screw holes (1).
(1) - Screw holes and screws
