7.8 Mounting the machine head

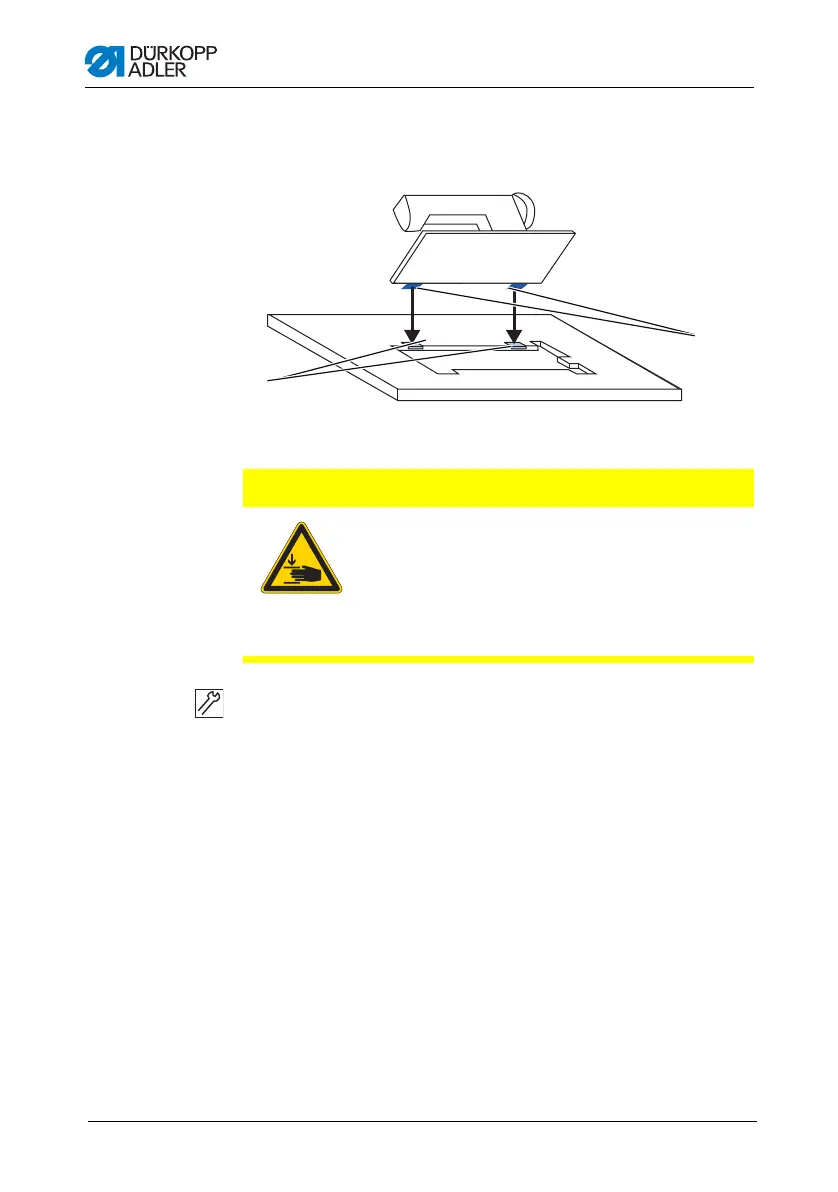

Fig. 31: Mounting the machine head
1. Screw the upper hinge parts (2) onto the machine head.
2. Fit the machine head from above at an angle of 45°.
3. Insert the upper hinge parts (2) into the rubber inlays (1).
4. Fold the machine head down and insert it in the recess.
CAUTION
Risk of crushing!
The machine head is very heavy.
Take care not to jam your hands when fitting the
machine head.
This especially applies when fitting the upper
hinge parts into the rubber inlays.
(1) - Rubber inlays (2) - Upper hinge parts
