3. Commissioning
3.11 Set system parameters using a memory card - e4settings.ini
Color - color setting
With this indication of an index, the color scheme of the display showing menu and
title entries, warning and error messages as well as input boxes and the cursor color
can be defined as one of the 16 predefined color combinations.
The relevant color settings here are those for remote operation of the easyE4, e.g. on
the easyE RTD, in the easySoft 8 or the web server.
The following table lists the two dominant colors in the color scheme for text and
background design from the related color index value:

0 Black / white (default)
1 white / black
2 Black / white (alternative)
3 White / black (alternative)
4 Black / white (Alternative2)
5 White / black (Alternative2)
6 Grey blue / light blue
7 White / dark blue
8 Dark brown / light brown
9 Light brown / dark brown
10 Dark green / light green
11 Light green / dark green
12 Dark red / light red
13 Light red / dark red
14 Dark purple / light purple
15 Black / white (Alternative3)
Color index for the two main colors for text and background design

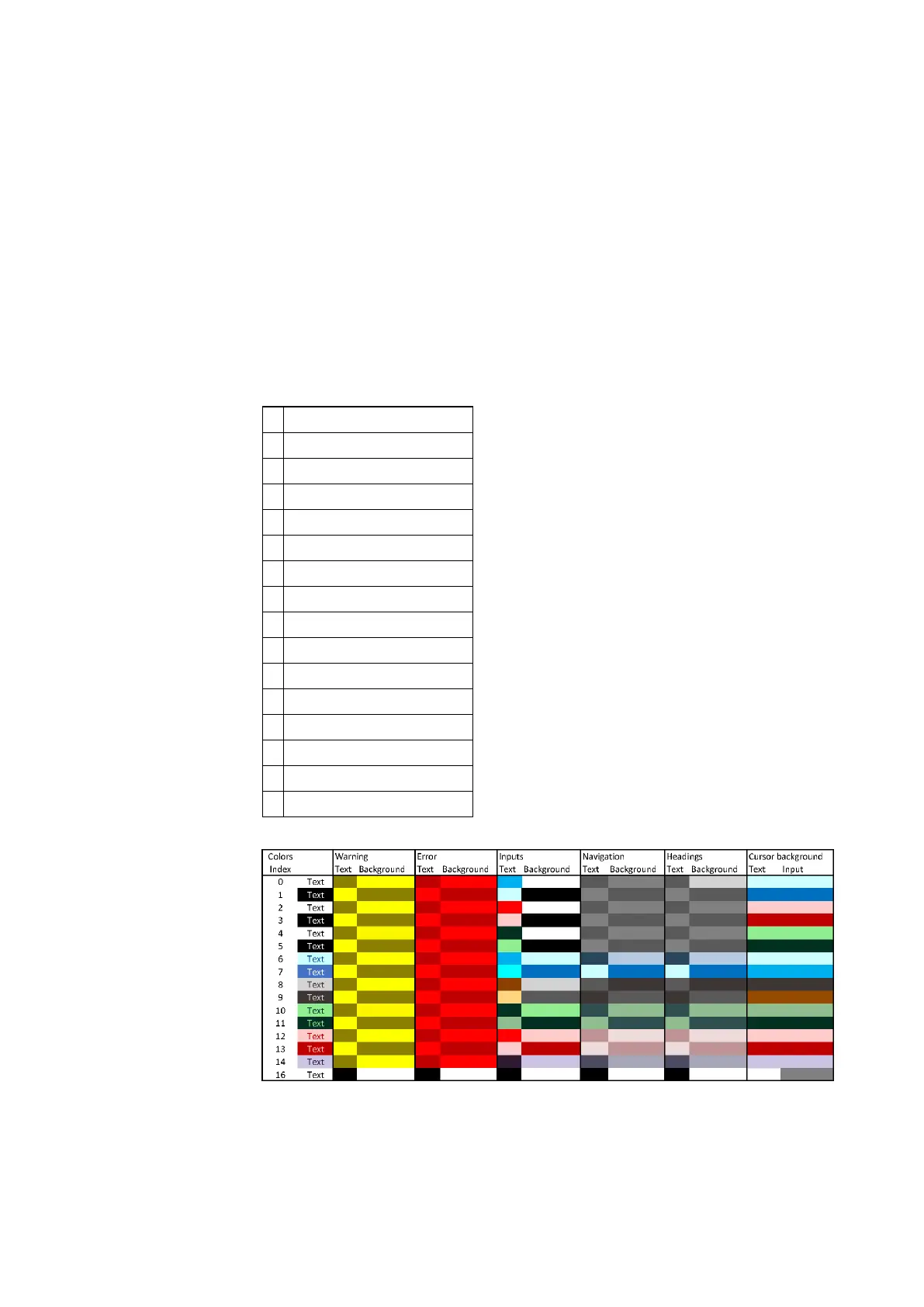

Fig. 77: Color scheme from the index during remote operation of the easyE4
