6. Function blocks
6.1 Manufacturer function blocks
Positioning with a specified number of steps P1 (defined distance)
TP on time ≦ 0.5 seconds
When using this operating mode, set the distance using the number of steps P1.
Switch the TP input to 1 for a duration ≦ 0.5 seconds.
The motor will start with starting frequency FS, move the set number of steps, and
then stop automatically. The start ramp and deceleration ramp will be ignored in this
case.
A B
Q1/2
AC
EN
PF
FS
TP
≦ 0.5 s ≦ 0.5 s ≦ 0.5 s
FS
QF

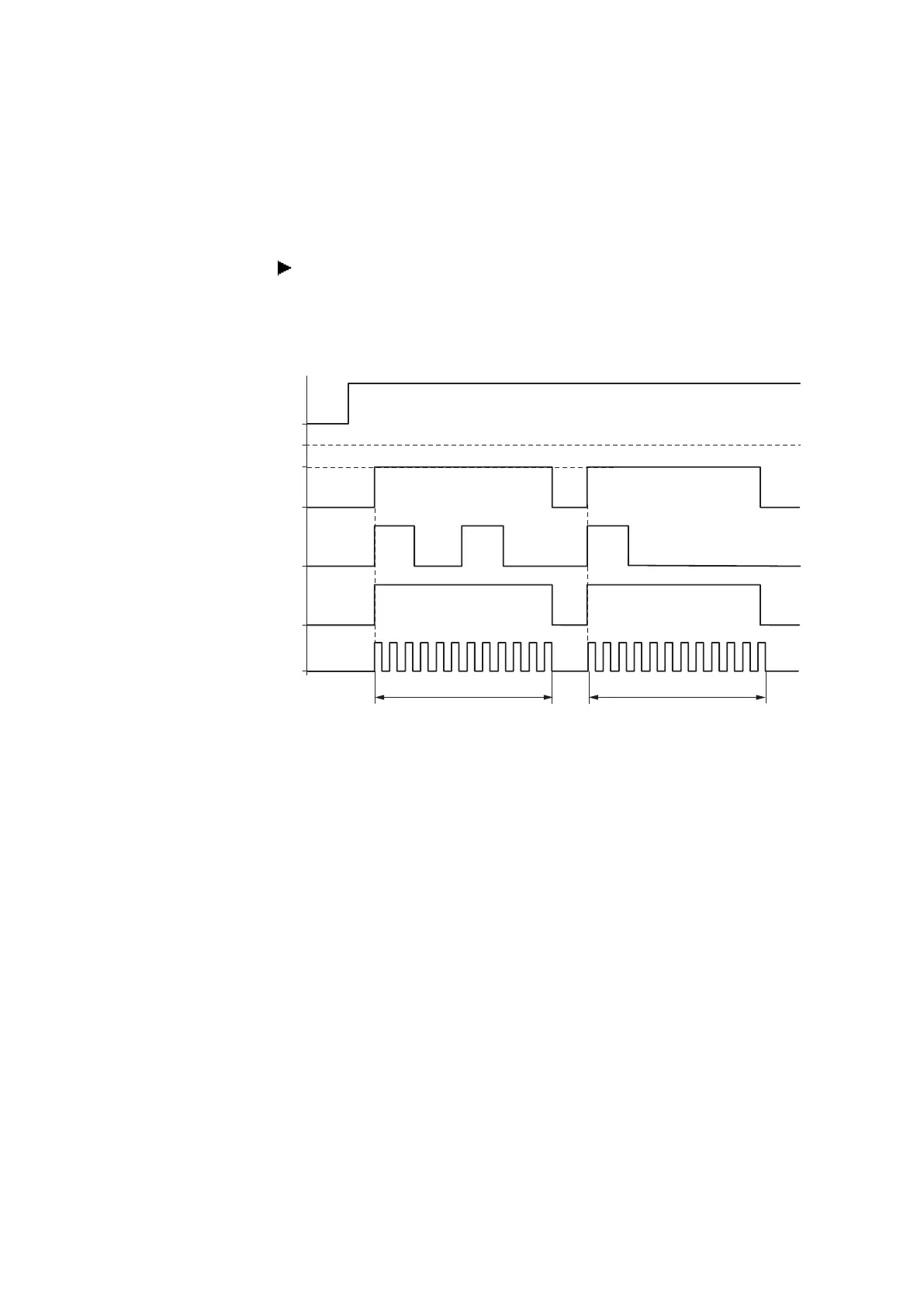

Fig. 199: Signal diagram for jog mode with specified number of steps P1
PF: Jog frequency
FS: Start frequency
QF: Current output frequency
TP: Jog command
AC: Positioning job active
A: Pulse output until number P1 reached, triggered by TP if on duration ≦ 0.5 sec.
easyE402/24 MN050009ENEaton.com
397
