Eaton easyE4 User Manual

6. Function blocks
6.1 Manufacturer function blocks

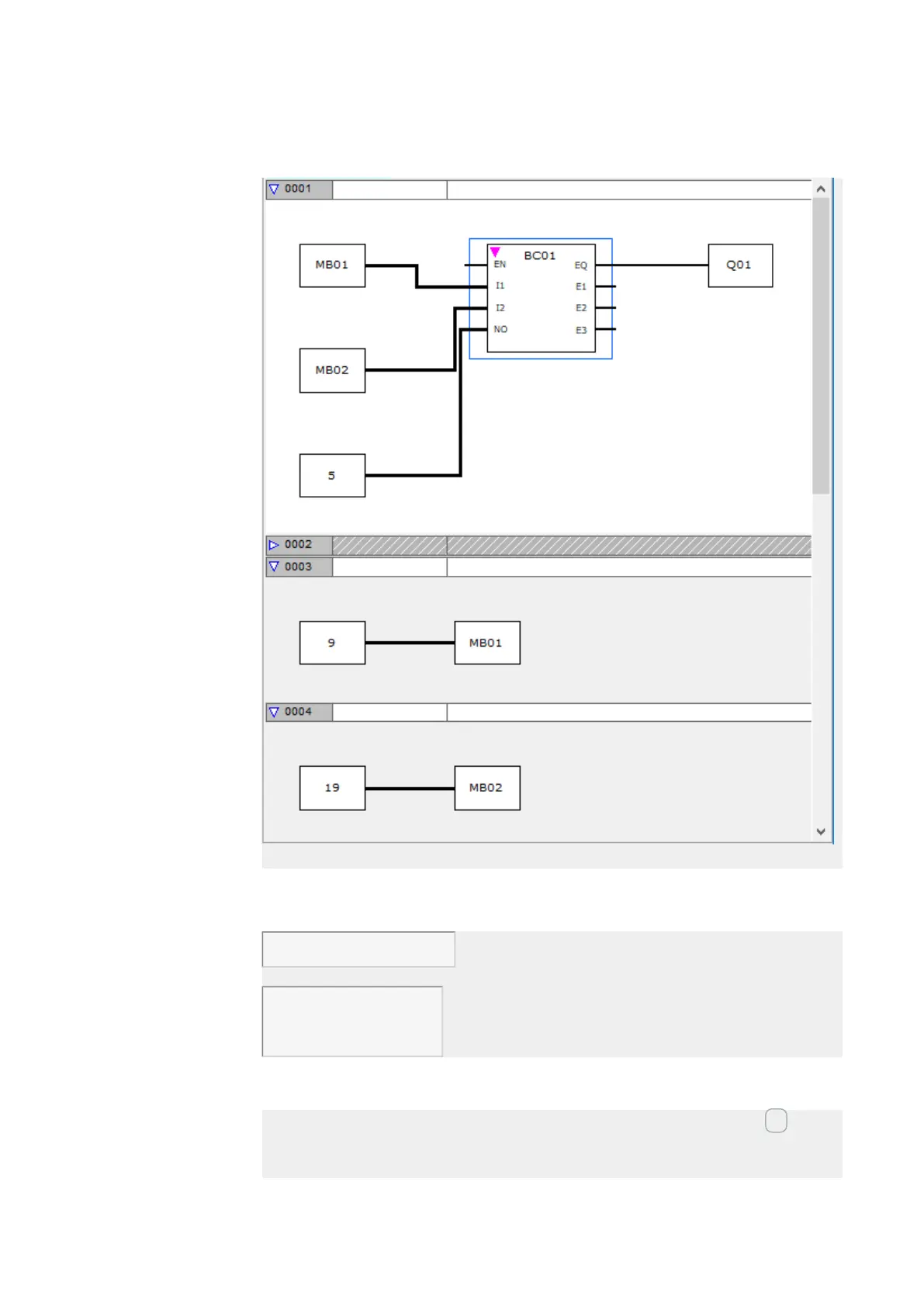

Fig. 206: *.e80 project with circuit diagram BC in FBD
Example of a data block comparator function block when using the EDP pro-
gramming language
I 05-----------------------------Ä BC11EN
Fig. 207: Wiring the enable coil
BC11E1o
BC11E2s
BC11E3j-----------------------Ä M 48
BC11EQ-BC11EN-----------------Ä M 49
Fig. 208: Wiring the contacts
Example of a function block BC configuration on a device display
When using the function block in the circuit diagram for the first time, use OK to auto-
matically enter the display of function blocks on the device display, as shown in the
following figure.
416
easyE402/24 MN050009ENEaton.com
