6. Function blocks
6.1 Manufacturer function blocks
Working with the text display editor
In order to position a display or input element, follow the steps below:
Select the display or input element you want from the list, e.g., Static text.
While holding down the left mouse button, drag the element to the work pane
and drop it where you want it to be positioned.
Move your cursor over one of the element handles and drag the handle until the
display or input element has the size you want.
Configure the parameters using the tabs below. For example:Static text (01)
tab/Text field<Sample text>.

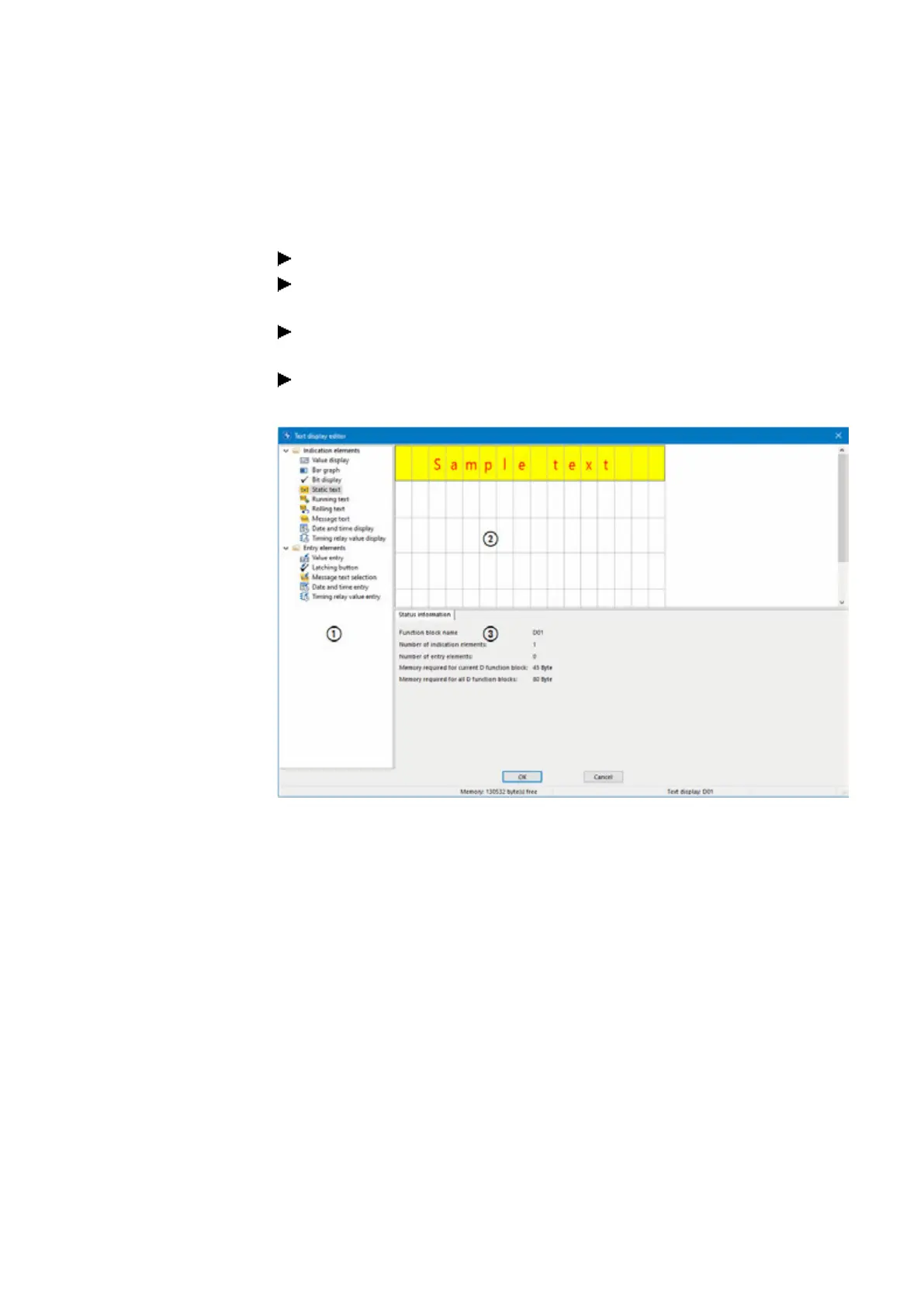

Fig. 227: Text display editor with static text in the first line
a List with display and input elements
b Work pane with text display elements that have already been configured
c Status information tab with parameters for the display and input elements
Color management in the display text editor
Each element will get its own text color and background color as parameters.
If you select the "inverse" display type, the colors will be swapped.
Default colors for the Text display editor are set in the Text display function block-
/Default colors tab – please refer to → "Selecting default colors", page 478 as well.

