6. Function blocks
6.3 UF - User function block
Program/ Create user function block... menu option

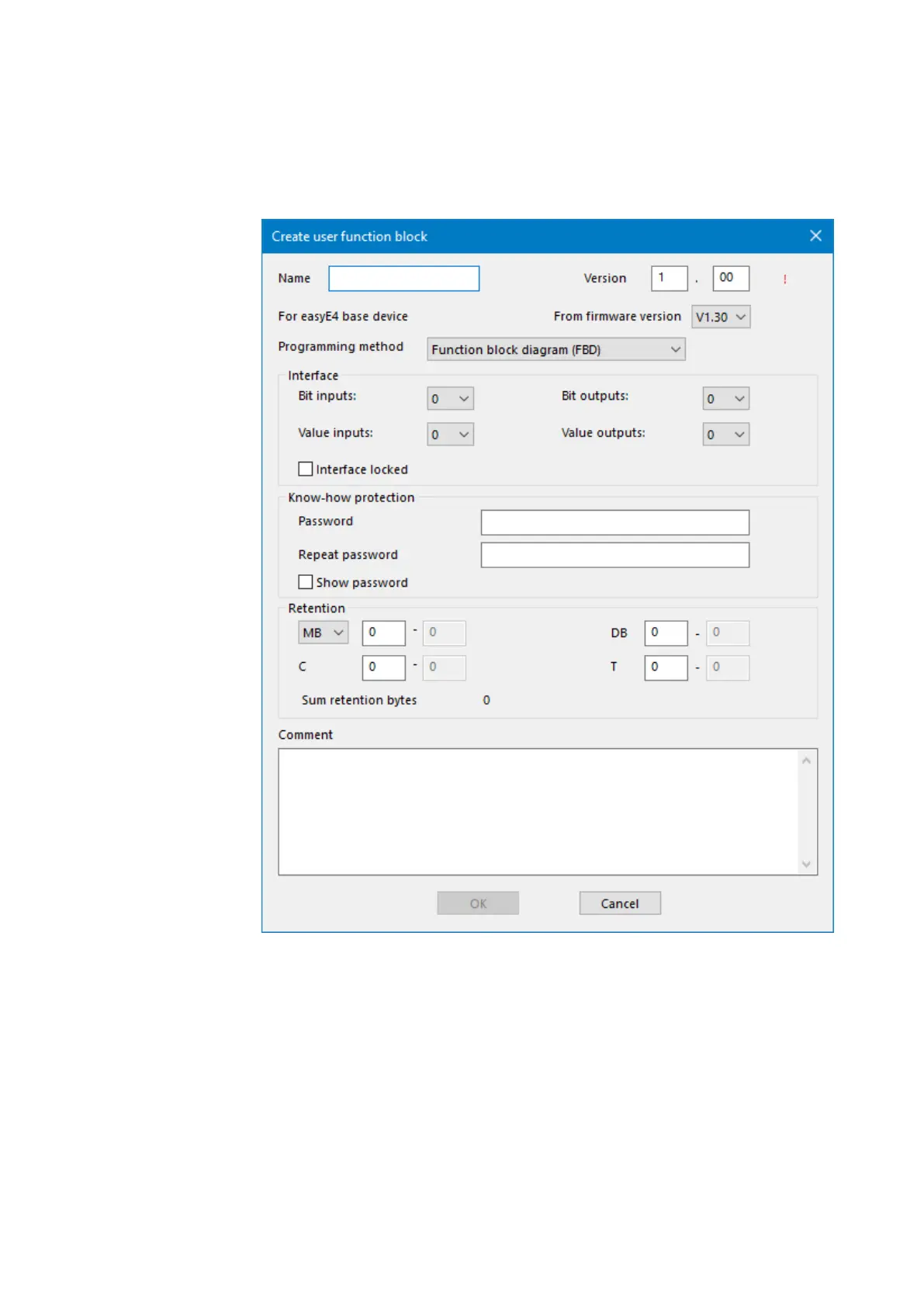

Fig. 271: Create user function block
You must at least enter a name and version and select a programming method before
creating the user function block. However, in order to be able to use the user func-
tion block effectively, it is also a good idea to configure the options in the Interface
section. In short, this section is used to specify how big the number of parameters
passed from the main program should be.
You can choose to configure all the other options later on if you want. The "Con-
figuring a user function block" section goes into them in greater detail.
Only available on easySoft Version 8.00 or higher.
590
easyE402/24 MN050009ENEaton.com
