10.
easyE4
communication
Connection
to
other
devices
10.11
Secure
communication
with
certificates

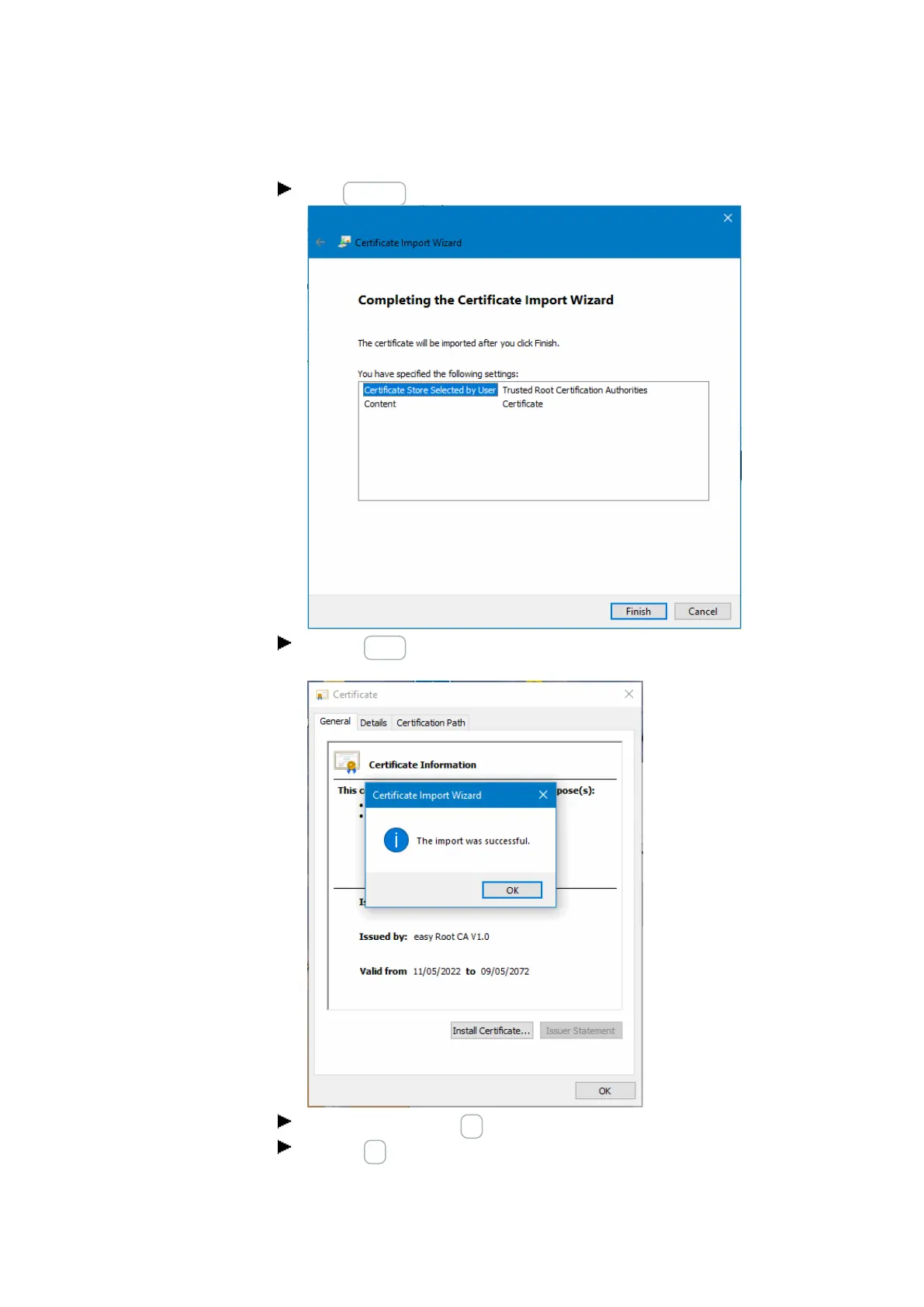

Click Continue.
Click on Finish.
A message showing that the import was successful will appear.
Confirm by clicking on OK
Click on OK on the "Certificate" dialog box.
easyE4
02/24
MN050009ENEaton.com
701
704
706
