Eaton Network-M3 User Manual

Overview
Installing the Network Management Module – 11
•
•
•
2 Installing the Network Management Module
2.1 Overview
2.2 Unpacking the Network module
The
Unable to render include or excerpt-include. Could not retrieve page.
will include the following accessories:
Installation instructions
2.3 Starting with the Network Module
2.4 Mounting the Network Module
The Network Module is hot-swappable. Inserting and/or extracting the Network Module from the communication slot of theproduct
has no effect on the output.

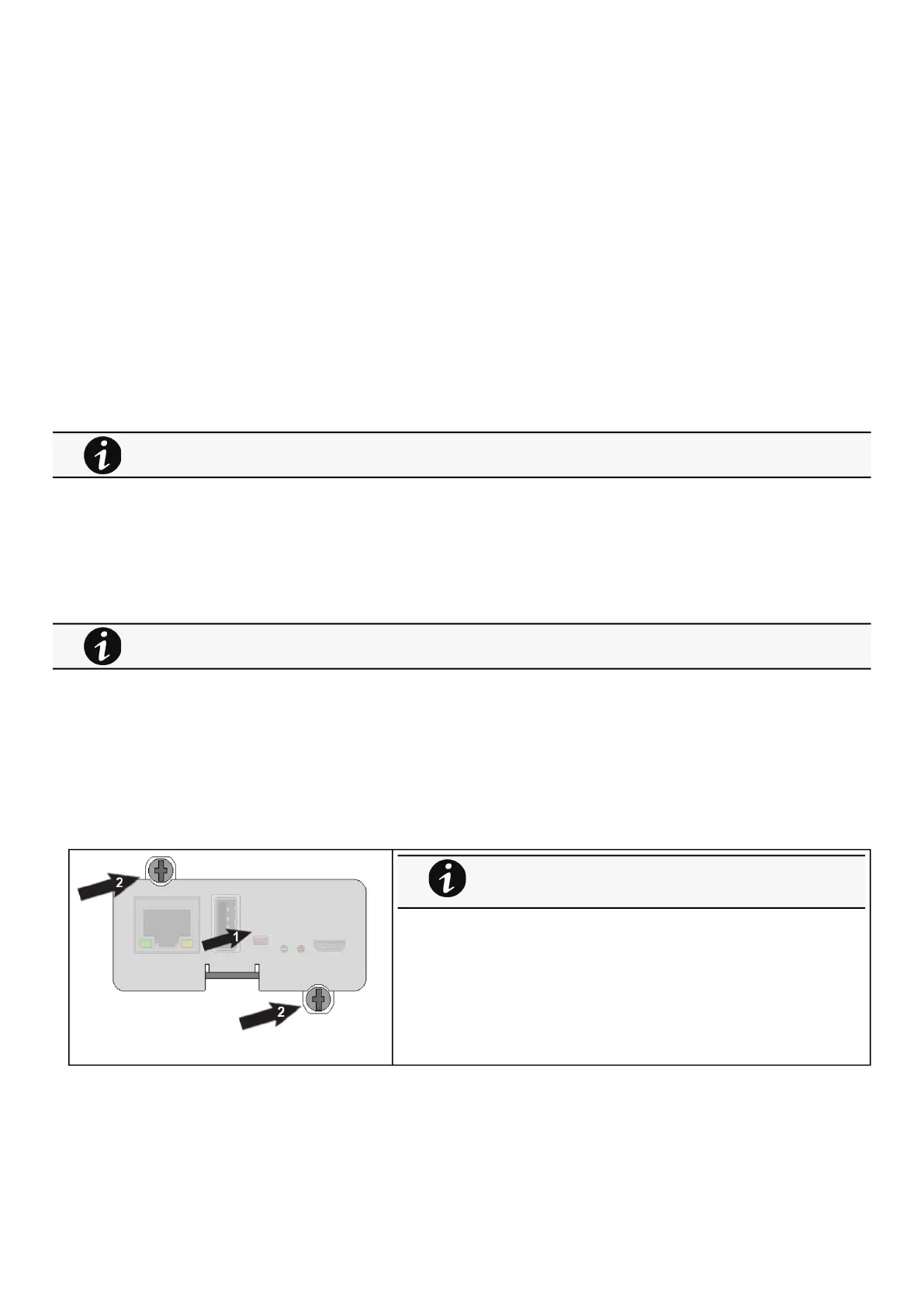

Remove the two screws securing the option slot cover plate and store the plate for possible future use.
Install theNetwork Module along the alignment channels in the option slot.
Secure the Network Module using the two screws.
Packing materials must be disposed of in compliance with all local regulations concerning waste.
Recycling symbols are printed on the packing materials to facilitate sorting.
It is not necessary to power down theDevice before installing the Network Module. Required tools: No. 2 Phillips
screwdriver.
If theproduct is powered up, you can verify that the Network
Module is seated properly and communicating with theproduct by
checking that the Status ON LEDflashes green after 2 minutes.
