Accessing the Network Module
Installing the Network Management Module – 14
STEP 2 –

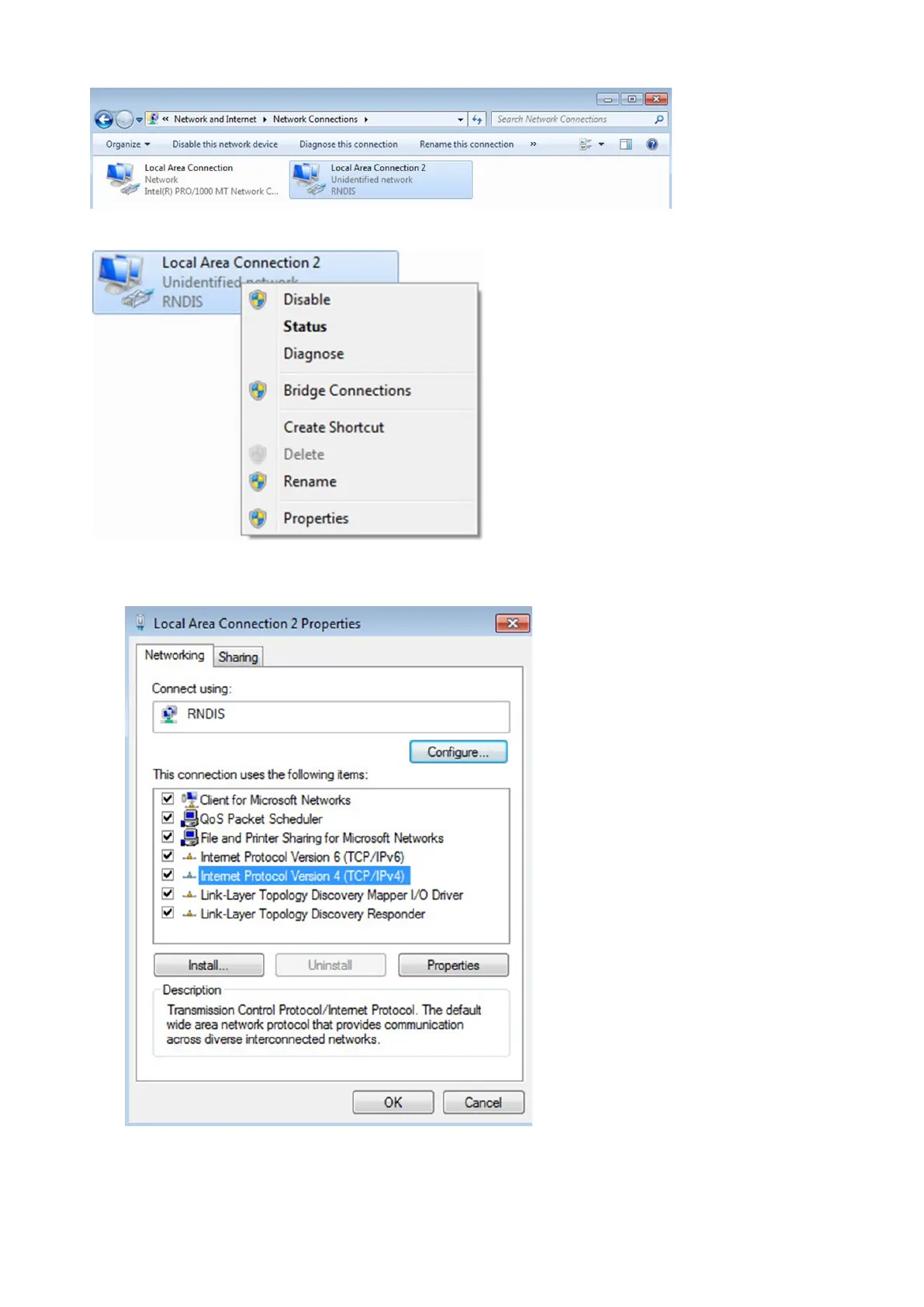

Right click on the RNDIS local area connection and select Properties.
STEP 3 –
Select Internet Protocol Version 4 (TCP/IPv4)” and press the Properties button
STEP
4–
Then
enter
the
configuration
as
below
and
validate
(IP
=
169.254.0.150
and
mask
=
255.255.0.0),
click
OK,
then
click
on
Close.
13
15
Table of Contents
Table of Contents
4
Installing the Network Management Module
11
Overview
11
Unpacking the Network Module
11
Starting with the Network Module
11
Mounting the Network Module
11
Accessing the Network Module
12
Accessing the Web Interface through Network
12
Finding and Setting the IP Address
12
Accessing the Web Interface through RNDIS
13
Accessing the Card through Serial Terminal Emulation
15
Modifying the Proxy Exception List
17
Configuring the Network Module Settings
19
Menu Structure
19
Contextual Help of the Web Interface
21
Login Page
21
Logging in for the First Time
21
Troubleshooting
22
Home
23
Header Structure
23
Menu Structure
24
Energy Flow Diagram
25
Outlet Status
29
Active Alarms
29
Environment
30
Energy Flow Diagram Examples
31
Access Rights Per Profiles
38
Meters
39
Measures
39
Battery
41
Data Logs
43
Default Settings and Possible Parameters - Meters
43
Access Rights Per Profiles
44
Save and Restore
44
Controls
45
Entire UPS
45
Outlets - Group 1/ Group 2
46
Group
47
Schedule
49
Protection
52
Agents List
52
Agent Shutdown Sequencing
56
Shutdown on Power Outage
60
Environment
68
Commissioning/Status
68
Alarm Configuration
73
Settings
78
General
78
Local Users
91
Remote Users
96
Ports
111
Tcp/Ip
112
Firewall
119
Protocols
123
Snmp
131
Certificate
139
Device Details
149
General
149
Settings - UPS
150
Settings - ATS
151
Power Modules
152
Maintenance
152
Firmware
152
Sessions
156
Services
157
Resources
163
System Logs
165
System Information
166
Alarms
167
Alarm Sorting
167
Active Alarm Counter
168
Alarm Details
168
Alarm Paging
168
Export
168
Clear
168
Alarms List with Codes
168
Access Rights Per Profiles
169
User Profile
169
Access to the User Profile
169
User Profile
170
Legal Information
173
Component
173
Availability of Source Code
173
Notice for Proprietary Elements
173
Default Settings and Possible Parameters - User Profile
174
Access Rights Per Profiles
174
CLI Commands
175
Troubleshooting
175
Save and Restore
176
Documentation
177
Access to the Embedded Documentation
177
Access Rights Per Profiles
178
Servicing the Network Management Module
179
Configuring/Commissioning/Testing LDAP
179
Commissioning
179
Testing LDAP Connection
180
Limitations
180
Pairing Agent to the Network Module
180
Pairing with Credentials on the Agent
180
Pairing with Automatic Acceptance (Recommended if Done in a Secure and Trusted Network)
180
Pairing with Manual Acceptance
181
Powering Down/Up Applications (Examples)
181
Powering down IT System in a Specific Order
181
Powering down Non-Priority Equipment First
184
Restart Sequentially the IT Equipment on Utility Recovery
187
Checking the Current Firmware Version of the Network Module
189
Accessing to the Latest Network Module Firmware/Driver/Script
189
Upgrading the Card Firmware (Web Interface / Shell Script)
189
Web Interface
189
Shell Script
189
Example
190
Changing the RTC Battery Cell
191
Updating the Time of the Network Module Precisely and Permanently (Ntp Server)
192
Synchronizing the Time of the Network Module and the UPS
192
Automatic Time Synchronization
192
Manual Time Synchronization
192
Changing the Language of the Web
192
Resetting Username and Password
193
As an Admin for Other Users
193
Resetting Its Own Password
193
Recovering Main Administrator Password
193
Switching to Static IP (Manual) / Changing IP Address of the Network Module
194
Reading Device Information in a Simple Way
195
Web Page
195
Subscribing to a Set of Alarms for Email Notification
195
Example #1: Subscribing Only to One Alarm (Load Unprotected)
195
Example #2: Subscribing to All Critical Alarms and some Specific Warnings
196
Saving/Restoring/Duplicating Network Module Configuration Settings
197
Modifying the JSON Configuration Settings File
197
Saving/Restoring/Duplicating Settings through the CLI
202
Saving/Restoring/Duplicating Settings through the Web Interface
202
Securing the Network Management Module
203
Cybersecurity Considerations for Electrical Distribution Systems
203
Purpose
203
Introduction
203
Connectivity-Why Do We Need to Address Cybersecurity for Industrial Control Systems (ICS)
203
Cybersecurity Threat Vectors
203
Defense in Depth
204
Designing for the Threat Vectors
205
Policies, Procedures, Standards, and Guidelines
207
Conclusion
209
Terms and Definitions
209
Acronyms
209
References
210
Cybersecurity Recommended Secure Hardening Guidelines
211
Introduction
211
Secure Configuration Guidelines
211
References
217
Configuring User Permissions through Profiles
218
Decommissioning the Network Management Module
218
Servicing the Emp
219
Description and Features
219
Unpacking the EMP
219
Installing the EMP
220
Defining Emps Address and Termination
220
Mounting the EMP
220
Cabling the First EMP to the Device
223
Daisy Chaining Emps
224
Connecting an External Contact Device
225
Commissioning the EMP
225
On the Network Module Device
225
Using the EMP for Temperature Compensated Battery Charging
225
Addressing the EMP
226
Commissioning the EMP
226
Enabling Temperature Compensated Battery Charging in the UPS
226
Information
227
Front Panel Connectors and LED Indicators
227
Specifications/Technical Characteristics
228
Default Settings and Possible Parameters
229
Meters
229
Settings
229
Sensors Alarm Configuration
236
User Profile
236
Access Rights Per Profiles
238
Home
238
Meters
238
Controls
238
Protection
238
Environment
239
Settings
239
Maintenance
240
Alarms
240
User Profile
240
Contextual Help
241
CLI Commands
241
List of Event Codes
243
System Log Codes
243
UPS(HID) Alarm Log Codes
248
UPS(XCP and COPI) Alarm Log Codes
254
ATS Alarm Log Codes
261
EMP Alarm Log Codes
263
Network Module Alarm Log Codes
264
SNMP Traps
265
UPS Mib
265
ATS Mib
268
Sensor Mib
269
Cli
269
Commands Available
269
Contextual Help
270
Get Release Info
270
History
271
Logout
271
Maintenance
272
Netconf
273
Ping and Ping6
274
Reboot
275
Rest List
276
Rest Get
276
Rest Set
277
Rest Exec
277
Save_Configuration | Restore_Configuration
277
Sanitize
278
Ssh-Keygen
279
Time
279
Traceroute and Traceroute6
280
Whoami
281
Email-Test
281
Systeminfo_Statistics
282
Certificates
282
Legal Information
284
Availability of Source Code
284
Notice for Open Source Elements
284
Notice for Our Proprietary (I.e. Non-Open Source) Elements
284
Acronyms and Abbreviations
285
Troubleshooting
288
Action Not Allowed in Control/Schedule/Power Outage Policy
288
Symptom
288
Possible Cause
288
Action
288
Card Wrong Timestamp Leads to "Full Acquisition Has Failed" Error Message on Software
288
Symptoms
288
Client Server Is Not Restarting
288
Action
289
EMP Communication Status Shows "Lost
289
Symptom #1
289
EMP Detection Fails at Discovery Stage
289
Symptom #2
290
How Do I Log in if I Forgot My Password
290
Action
290
Software Is Not Able to Communicate with the Network Module
291
Symptoms
291
Possible Cause
291
Setup
291
Action #1
291
Action #2
291
LDAP Configuration/Commissioning Is Not Working
292
Password Change in My Profile Is Not Working
292
Symptoms
292
Possible Cause
292
Action
292
The Alarm List Has Been Cleared after an Upgrade
292
Symptom
292
