4 Operation
4.6 Help leaflets
122 DC1 Variable Frequency Drive 04/16 MN04020003Z-EN www.eaton.com
4.6 Help leaflets
DC1 variable frequency drives come with two help cards that show the most
important control connections and parameters. This makes it possible to
quickly and easily commission the drives with their default settings when
using the rated motor output (“out-of-the-box operation”).
In the case of devices with an IP20 degree of protection, the help cards will
be inserted in place above the keypad. In the case of devices with an IP66
degree of protection, they will be found on the inside of the terminal cover.

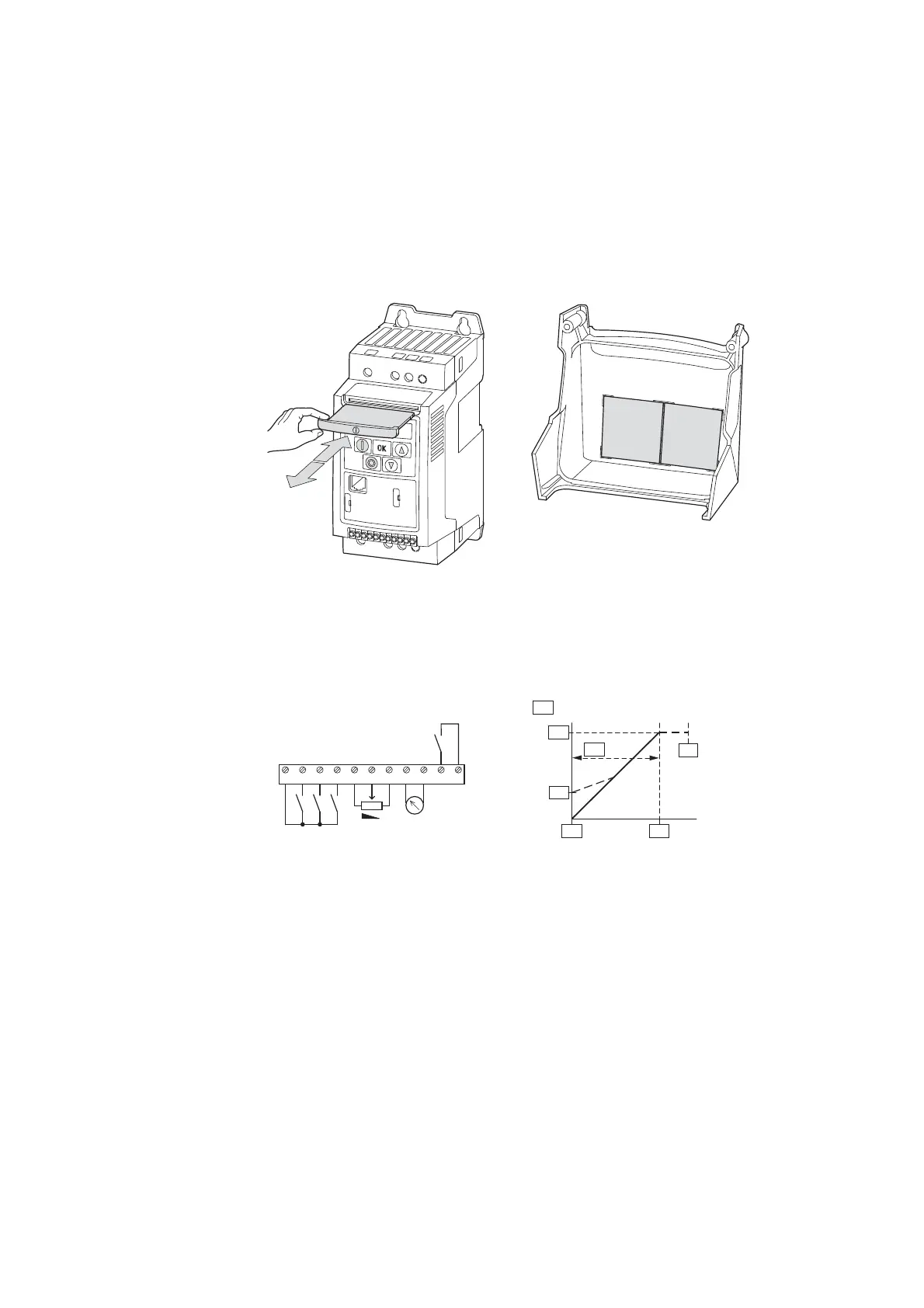

Figure 73: Help cards in units with an IP20 (left) or IP66 (right) degree of protection
Figure 74: Help cards
