7 Accessories
7.1 Device-specific accessories
DC1 Variable Frequency Drive 04/16 MN04020003Z-EN www.eaton.com 163
7 Accessories
Device-specific DXC… accessories, as well as the general accessories from
the PowerXL (DX…) system, are available for DC1 variable frequency drives.
7.1 Device-specific accessories
DCX… device-specific accessories are connected directly to the plug-in
control signal terminals on DC1 variable frequency drives, making it easy
to expand the drives’ functionality.

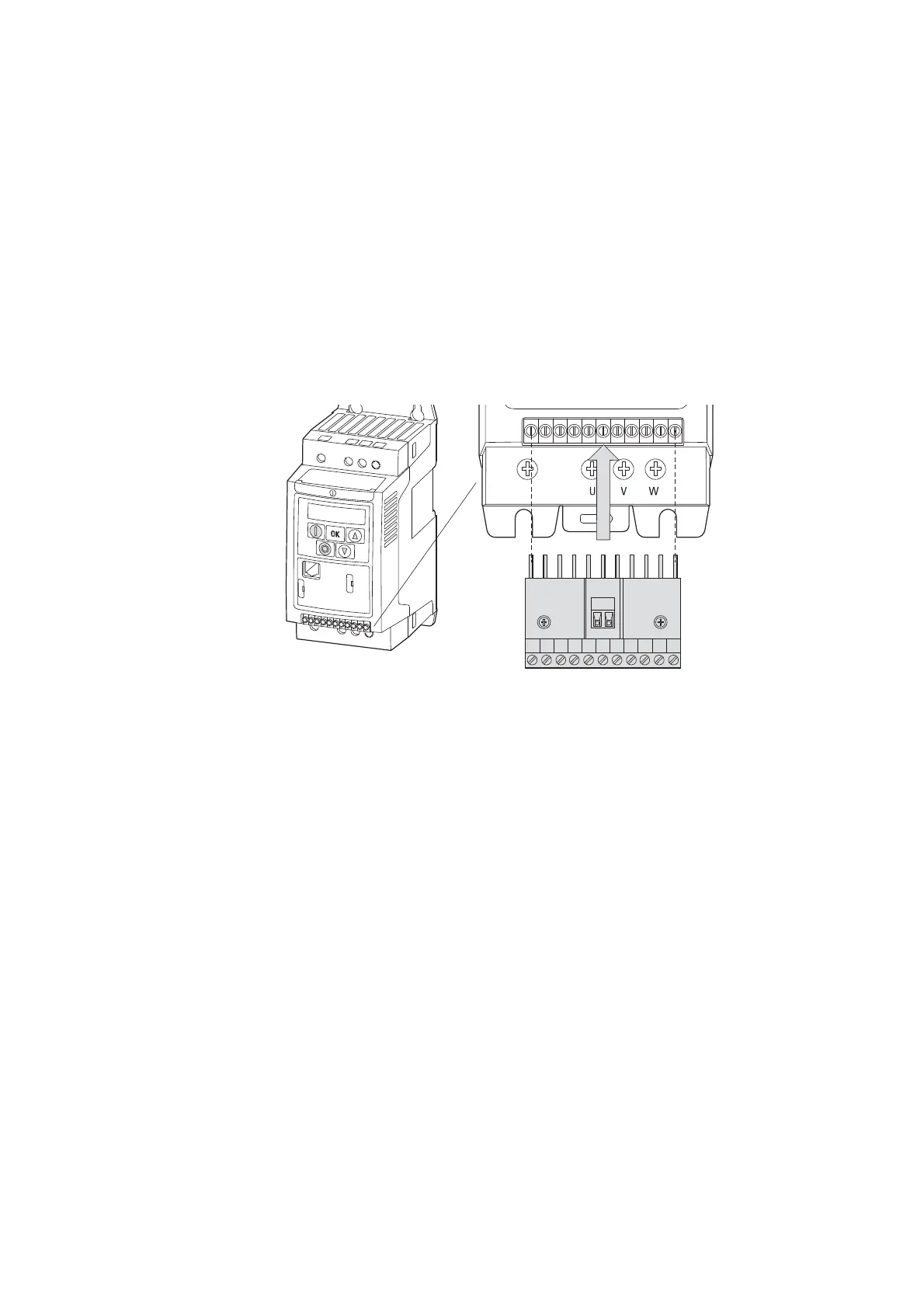

Figure 85: connecting DXC… to the control signal terminals on the DC1
￫
The control signal terminals on the DC1 variable frequency drive
are plug-in terminals. They can be screwed onto the expansion
module in order to cover the pins (protection against contact).

1234567891011
1234567891011
12 13
L1/L
L2/N
L3

U
V
W

1
2
3
4
5
6
7
8
9
10
11
