4.5 Handling the keypad
118 DC1 Variable Frequency Drive 04/16 MN04020003Z-EN www.eaton.com
4.5 Handling the keypad
The keypad can be used to configure the DC1 variable frequency drive’s
parameters and monitor its operation.
4.5.1 Operating unit elements
The following figure shows the elements of the DC1 variable frequency drive
integrated operating unit.

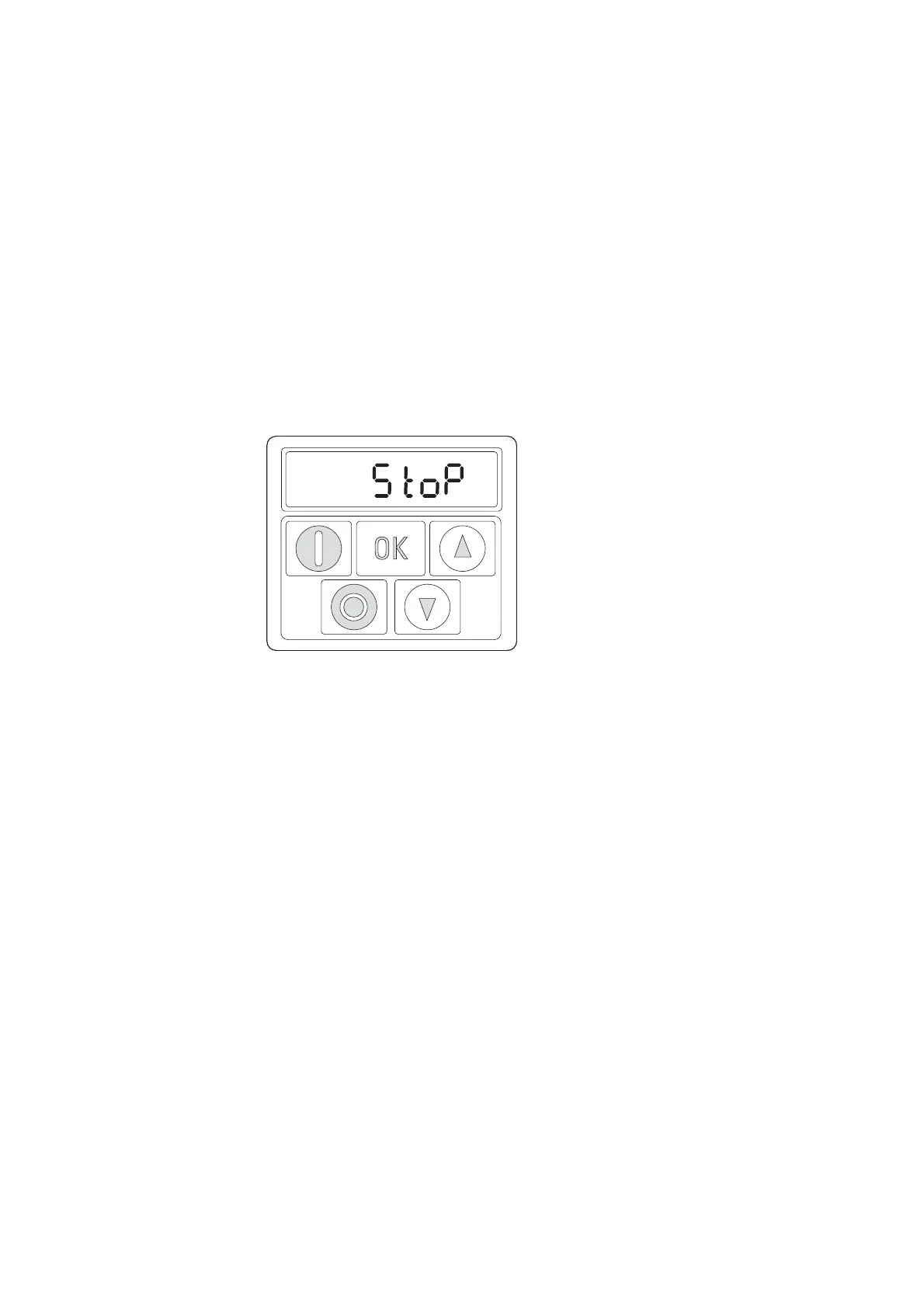

Figure 72: Operating unit view (example DC1-…-A20N)
￫
Manual MN04020004Z,
“DC1 Variable Frequency Drives –
Parameter Manual”, goes over how to configure the individual
parameters.
Display (7-digital LEDs)
Push buttons
￫
The integrated keypad on DC1 devices and the (optional)
external DX-KEY-LED keypad feature a six-digit 7-segment
LED display.
The optional DX-KEY-OLED keypad is a multi-language cleartext
display unit (OLED = Organic light-emitting diode). It can be
used in conjunction with DC1 variable frequency drives.
The buttons on both keypads work the exact same way.
The additional Hand and Auto buttons on the DX-KEY-OLED
keypad do not do anything in this case.
￫
On OLED displays, languages can be selected by pressing
START +  simultaneously.
Display: Select Language.
The display language can be changed with the  and  arrow
keys. The selected language setting can then be saved by
pressing the OK button.
￫
If you want to use the START and STOP buttons to control the
DC1 variable frequency drive, the corresponding setting needs
to be enabled in parameter P-12 (“Local process data source”)
regardless of which keypad type or model is being used
(integrated DX-KEY-LED or external DX-KEY-OLED).
