6 Technical Data
6.6 Mains contactors
148 DC1 Variable Frequency Drive 04/16 MN04020003Z-EN www.eaton.com
6.6 Mains contactors
￫
The mains contactors listed here are based on the variable
frequency drive’s rated input-side mains current I
LN
without an
external mains choke.
The contactor should be selected based on thermal current
I
th
=I
e
(AC-1) at the specified ambient air temperature.
NOTICE
The inching operation is not permissible via the mains contactor
(Pause time  30 s between switching o and on).
P1DILEM
DILEM
P1DILEM

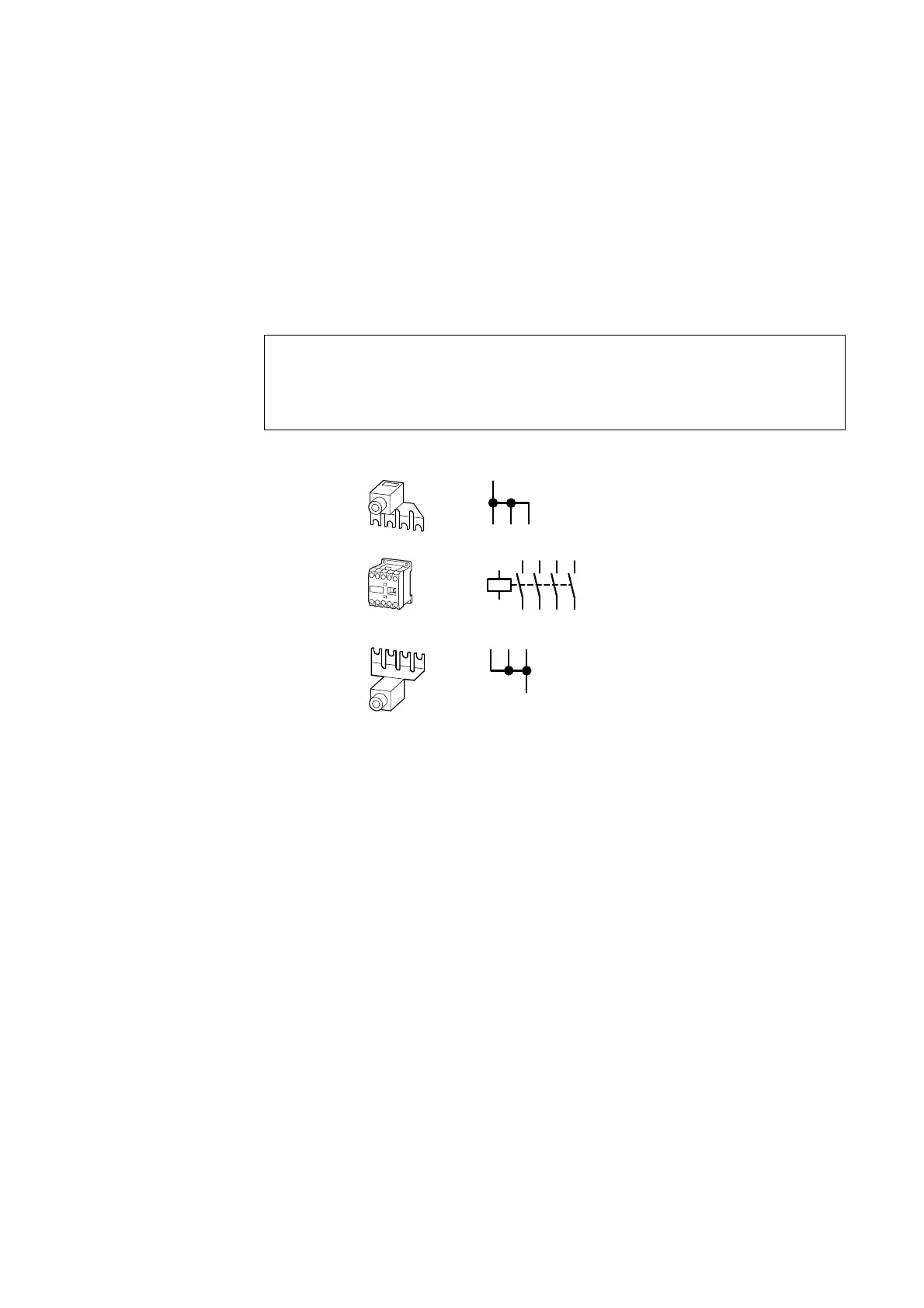

Figure 79: Mains contactor at single-phase connection (DC1-12…)
2
35
4
6
A1
A2
1
13
14
