3.3.3 Fixing
All DC1 variable frequency drive frame sizes can be mounted with screws.
Moreover, frame sizes FS1 to FS3 with an IP20 degree of protection can be
mounted on a mounting rail as well.
3.3.3.1 Fixing with screws
First fit the screws at the specified positions, mount the variable
frequency drive and then fully tighten all screws.
Table 4: Installation dimensions, screws, tightening torques
￫
Dimension and weight specifications for the DC1 variable
frequency drive can be found in the
Section 6.3, “Dimensions“, page 140.
￫
Use screws with a washer and split washer with the
permissible tightening torque in order to protect the enclosure
and safely and reliably mount the device.

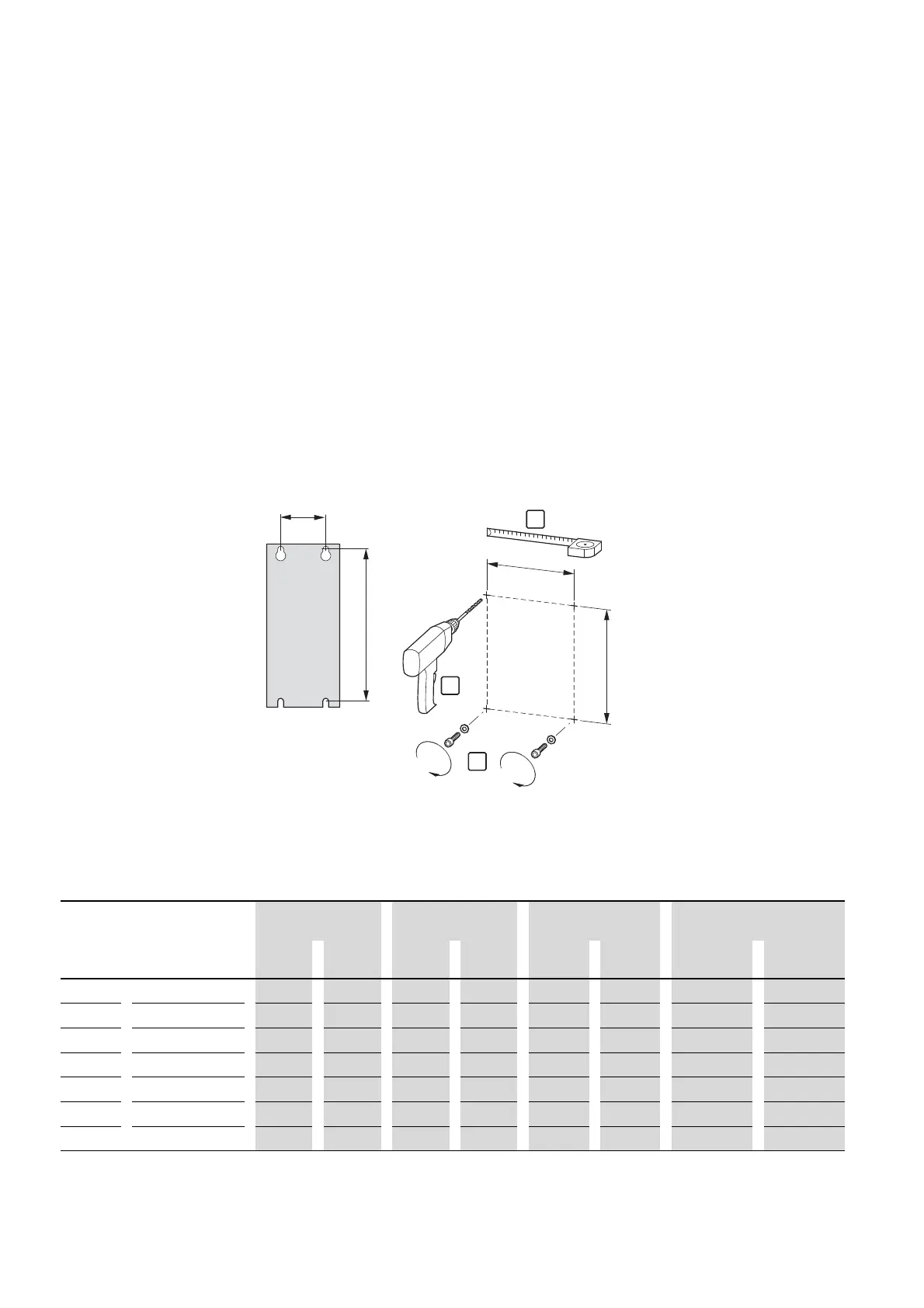

Figure 27: Mounting dimensions
b1
a1
1
2
3
b1
a1
Frame
size
Degree of
protection
a1 b1 Screw Tightening torque
FS
IP NEMA mm in mm in Quantity Size N/m lb-in
FS1 IP20 NEMA 0 50 1.97 170 6.69 4 M4 1 8.85
FS1
IP66_x NEMA 4X 184.5 5.85 189 7.44 4 M4 1.2 - 1.5 10.62 - 13.27
FS2
IP20 NEMA 0 75 2.95 215 8.46 4 M4 1 8.85
FS2
IP66_x NEMA 4X 176 6.93 200 7.87 4 M4 1.2 - 1.5 10.62 - 13.27
FS3
IP20 NEMA 0 100 3.94 255 10.04 4 M4 1 8.85
FS3
IP66_x NEMA 4X 198 7.78 252 9.9 4 M4 1.2 - 1.5 10.62 - 13.27
FS4
IP20 NEMA 0 125 4.92 400 15.75 4 M6 4 35.4
1 in = 1’’ = 25.4 mm; 1 mm = 0.0394 in
