3 Installation
3.3 Mount ing
DC1 Variable Frequency Drive 04/16 MN04020003Z-EN www.eaton.com 59
3.3.1 Mounting position
DC1 series variable frequency drives are designed to be mounted vertically.
The maximum permissible inclination is 30°.

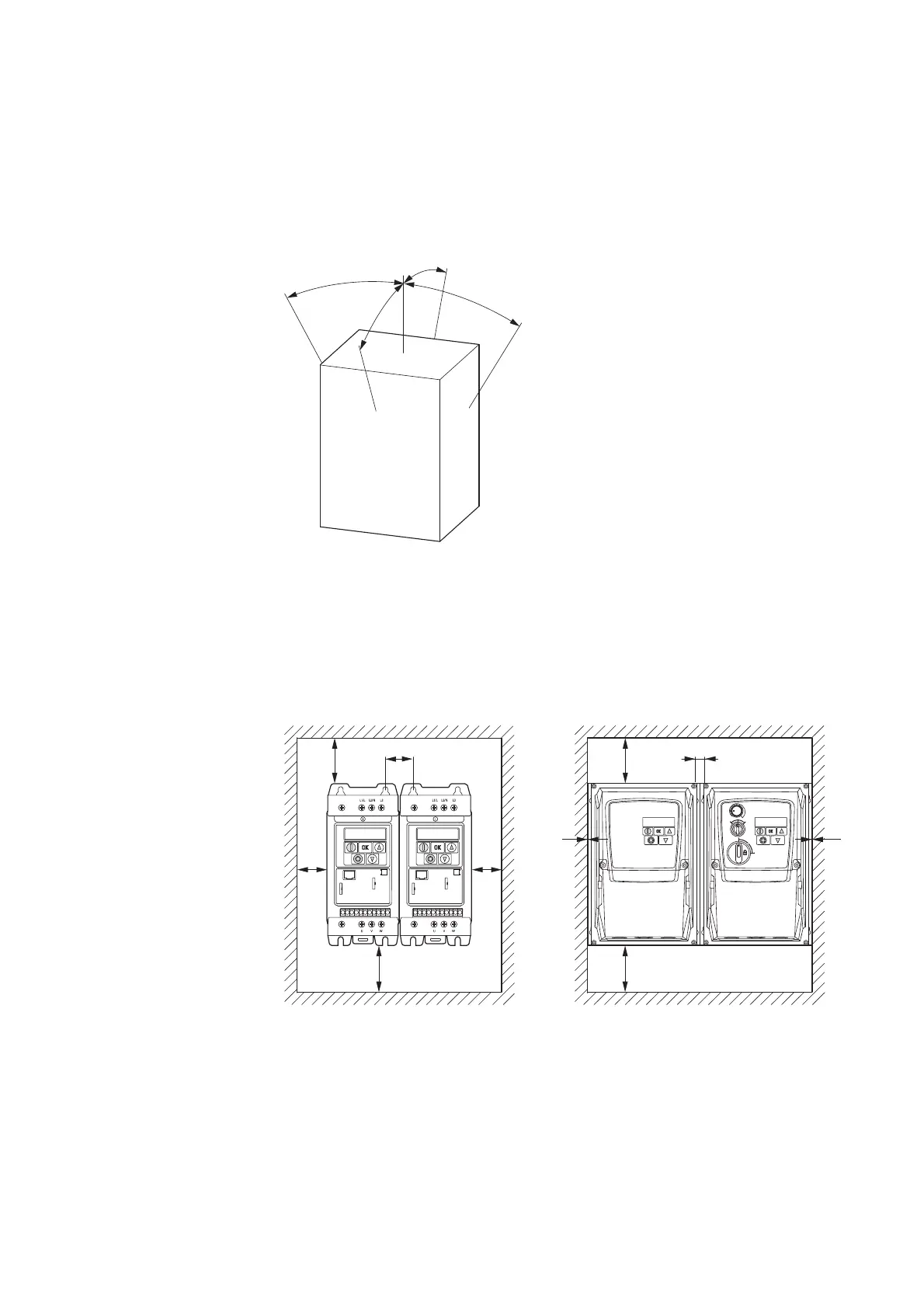

Figure 23: Mounting position
3.3.2 Cooling measures
To ensure that there is sufficient air circulation, appropriate thermal
clearances must be maintained, with these clearances depending on the size
of the specific variable frequency drive.
Figure 24: Clearances for air cooling (left: IP20; right: IP66)
￫
The variable frequency drives can be mounted side by side
without any lateral clearance between them.
