1 DC1 device series
1.2 System overview
10 DC1 Variable Frequency Drive 04/16 MN04020003Z-EN www.eaton.com
1.2 System overview

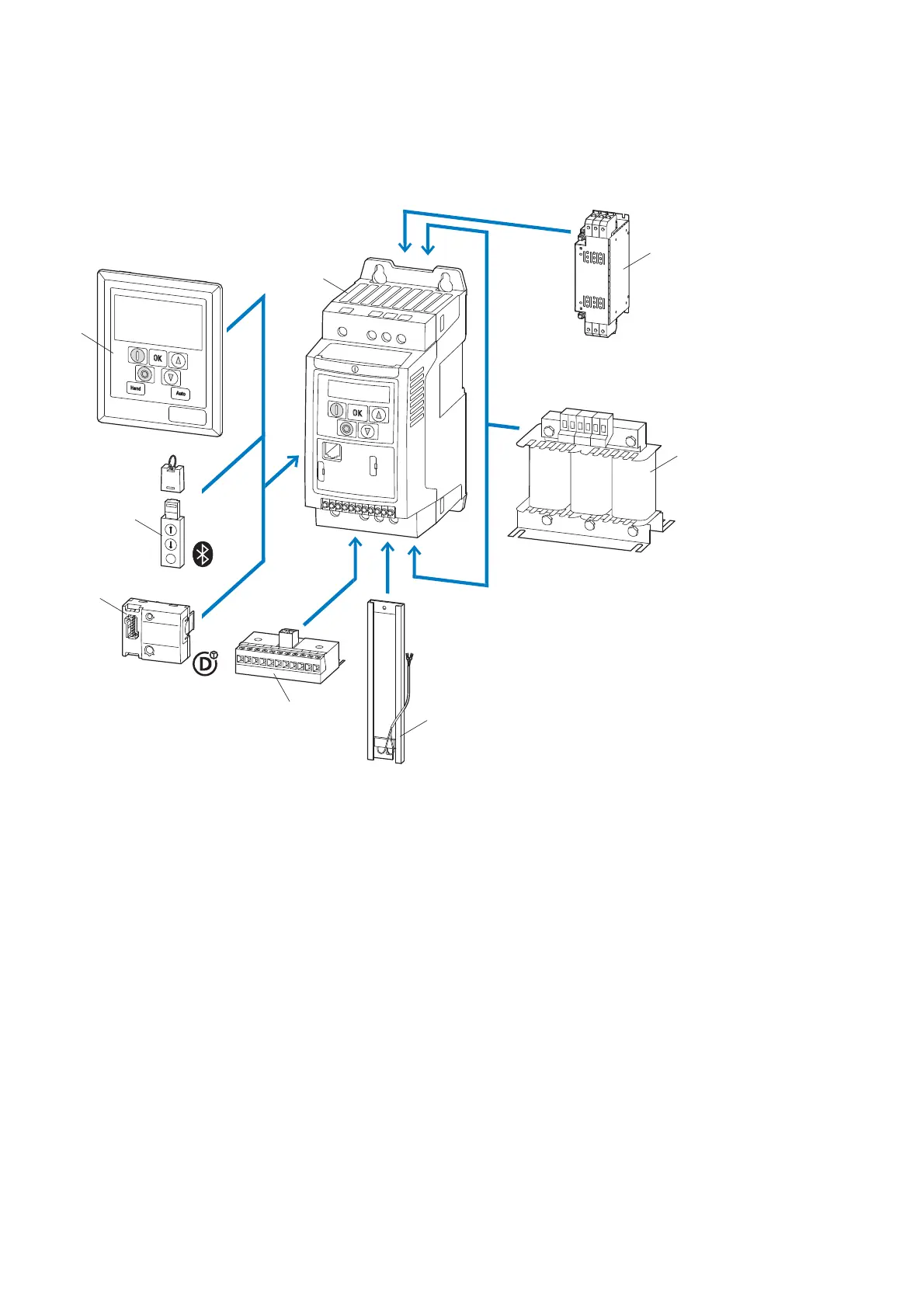

Figure 2: System overview (example: size FS1, degree of protection IP20)
a DC1-… variable frequency drives
b Extern radio interference suppression filter DX-EMC…
c DX-LN… mains choke, DX-LM3-… motor choke, DX-SIN3-… sine filter
d DX-BR… braking resistance
e DXC-EXT-… expansion module
f DX-NET-SWD3 SmartWire-DT interface
g DX-COM-STICK communication module and accessories (e. g. DX-CBL-… connection cable)
h DE-KEY-… keypad (external)
