7 Accessories
7.1 Device-specific accessories
166 DC1 Variable Frequency Drive 04/16 MN04020003Z-EN www.eaton.com
7.1.2 DXC-EXT-2RO output expansion

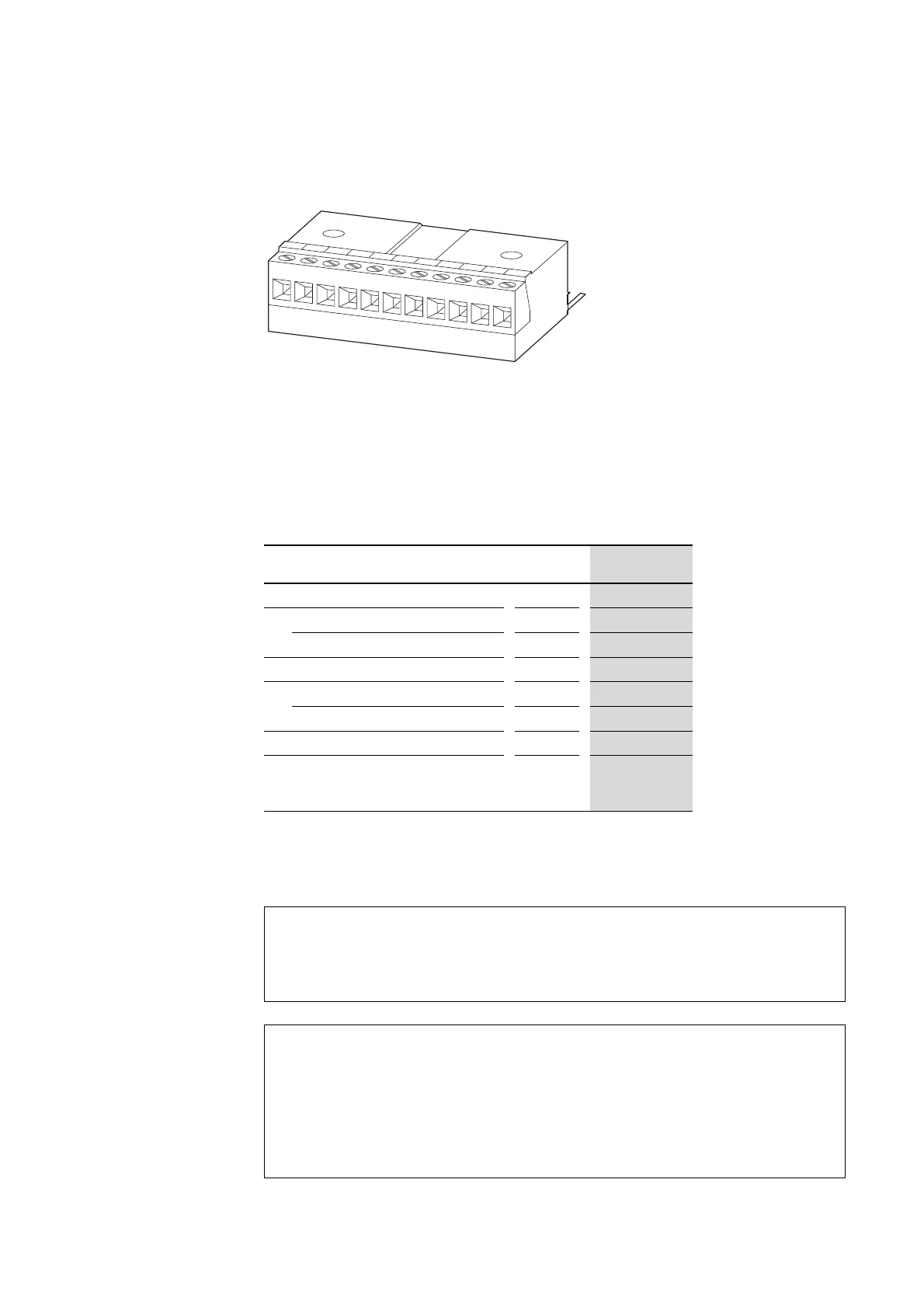

Figure 88: DXC-EXT-2RO
Expansion module DXC-EXT-2RO can be used to convert digital output DO1
(control signal terminals 8 and 9) on DC1 variable frequency drives to a dry
contact relay output K2 (N/O). When this option is used, the variable
frequency drive will have two dry relay contacts available and will be able to
switch voltages of up to 250 V AC and 220 V DC.
Table 34: Specific technical data DX-EXT-2RO
Technical Specification Unit Value
Relay switching voltage
K1 (control signal terminals 10, 11) V 250 AC / 230 DC
K2 (control signal terminals 8, 9) V 250 AC / 220 DC
Relay switching current
K1 (control signal terminals 10, 11) A 1
K2 (control signal terminals 8, 9) A 1
Operating Temperature °C -10 - +50
Degree of protection (without the connection
pins being covered by the DC1’s control signal
terminal block)
IP00
￫
For detailed instructions on how to install the module, please
refer to instruction leaflet IL04012015Z.
NOTICE
Internal relay K1 is looped with the expansion module, meaning
it can only conduct a lower current ( 1A).
DANGER
Dangerous voltage!
Expansion module DXC-EXT-2RO1AO must not be placed
into operation until all mounting and installation work has been
completed. Any other use will be considered to be an
inappropriate use.
