STP-iS1607 Series Turbomolecular Pump
MT-94E-001-C
Page 17
2
TECHNICAL DATA
2.5 External appearance of the STP pump

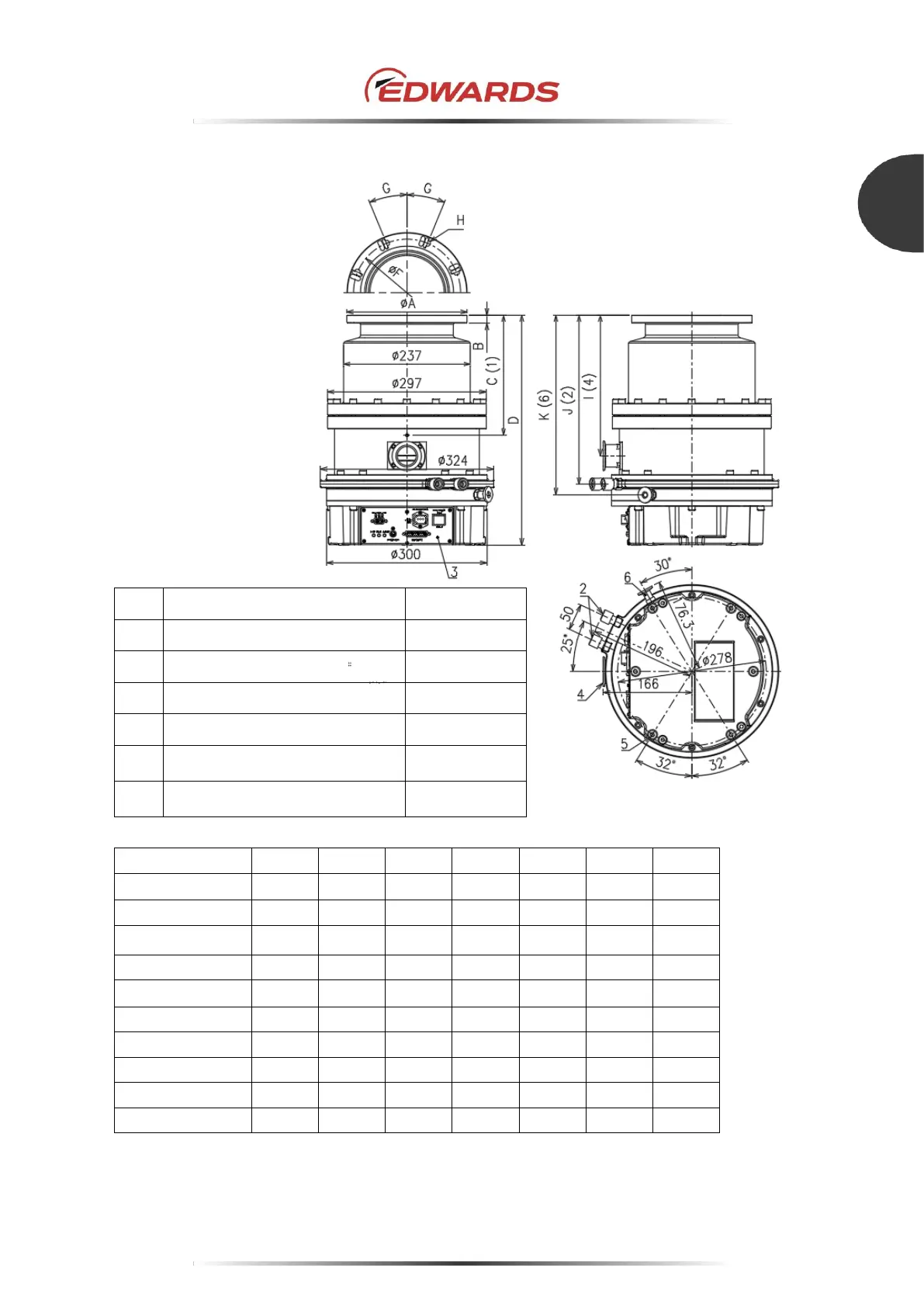

Figure 7 - External appearance of STP-iS1607/iS1607C/iS1607B
No.
Item
Description
1
Center of gravity
2
Height of water cooling port
Rc1/4
3
Control unit
4
Outlet port flange
KF40
5
Screw hole for securing the base
4-M8, Depth 20
6
Purge port
KF10
Inlet port flange
ICF203
ISO160F
VG150
ICF253
ISO200F
VG200
ISO250F
φA
203
225
235
253
285
300
335
B
22
15
15
25
16
16
16
C (1)
228
224
222
220
192
190
186
D
430
430
430
428
390
390
390
φF
181
200
210
231.8
260
270
310
G
22.5º
22.5º
15º
15º
22.5º
15º
H
20-φ8.4
8-φ11
8-φ12
24-φ8.4
12-φ11
8-φ15
12-φ11
I (4)
263
263
263
261
223
223
223
J (2)
316
316
316
314
276
276
276
K (6)
335
335
335
333
295
295
295
