STP-iS1607 Series Turbomolecular Pump
MT-94E-001-C
Page 58
4
OPERATION
4.6.2 Starting/stopping the STP pump
There are the methods of contact input for the starting/stopping operation with the parallel port.
Starting the pump
Stopping the pump
Short the circuit between (1)-(2).
Open the circuit between (1)-(2).
Table 9 - Starting/stopping the STP pump (X2 REMOTE)
Stop
Rotation
Stop
(1)–(2)
X2 REMOTE
connector
OPEN
CLOSE
Pump operation

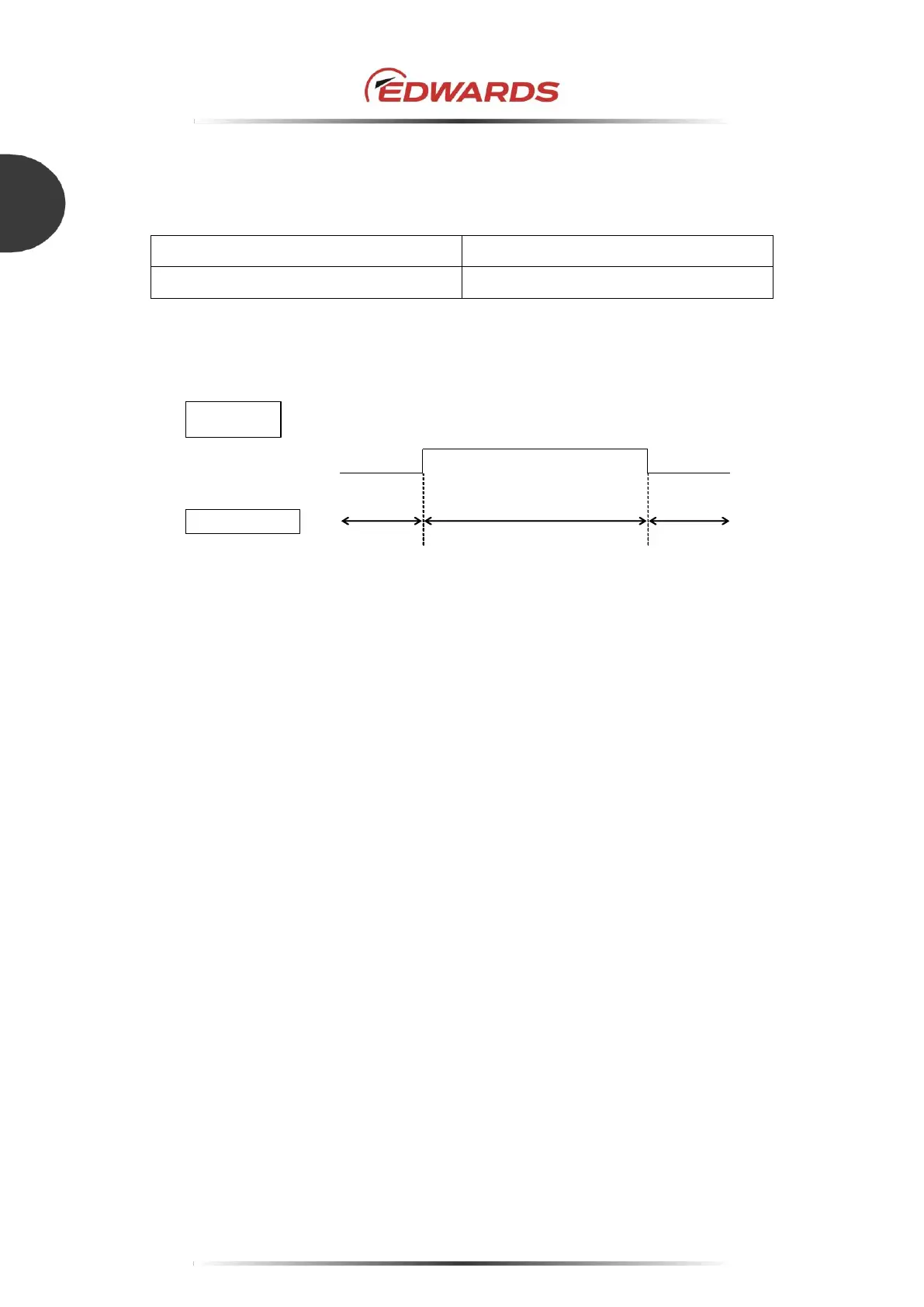

Figure 29 - Pump operation method
