STP-iS1607 Series Turbomolecular Pump
MT-94E-001-C
Page 28
3
INSTALLATION OF THE STP PUMP
When installing the STP pump to the vacuum equipment in upside-down position, the STP-iS1607
series can be loft with the eyebolts (M8) attached to the screw holes for securing the base. (see
Figure 15)
A crane and eyebolts due to lifting operations should withstand the load of five times or more the
weight of the STP pump, and rope should be seven time or more. Use an eyebolt which confirms to
ISO 3266. When lifting the pump, use 2 or more ropes.

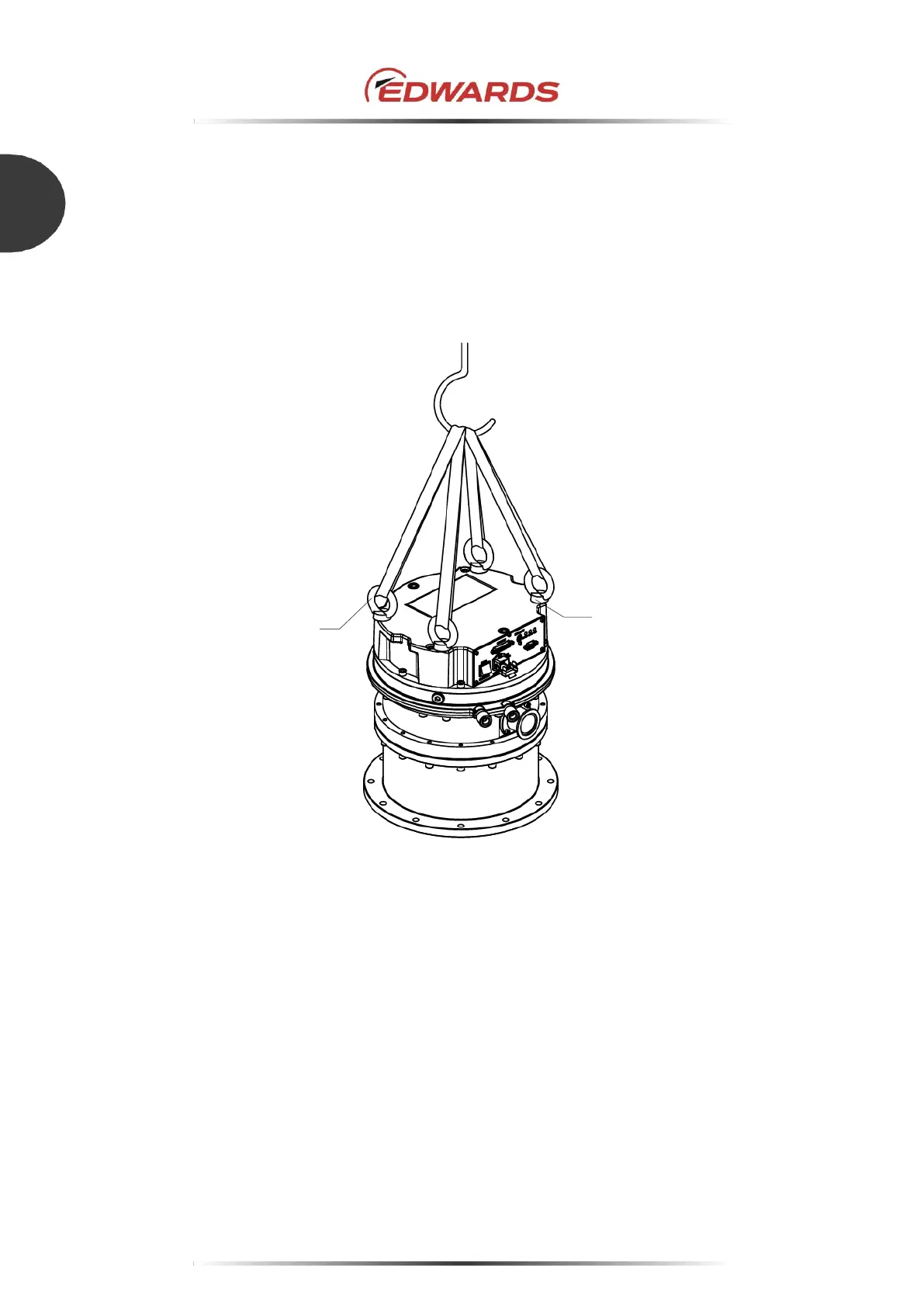

Figure 15 - STP pump with eyebolts
Eyebolt
Screw holes for securing
the base
