STP-iS1607 Series Turbomolecular Pump
MT-94E-001-C
Page 27
3
INSTALLATION OF THE STP PUMP

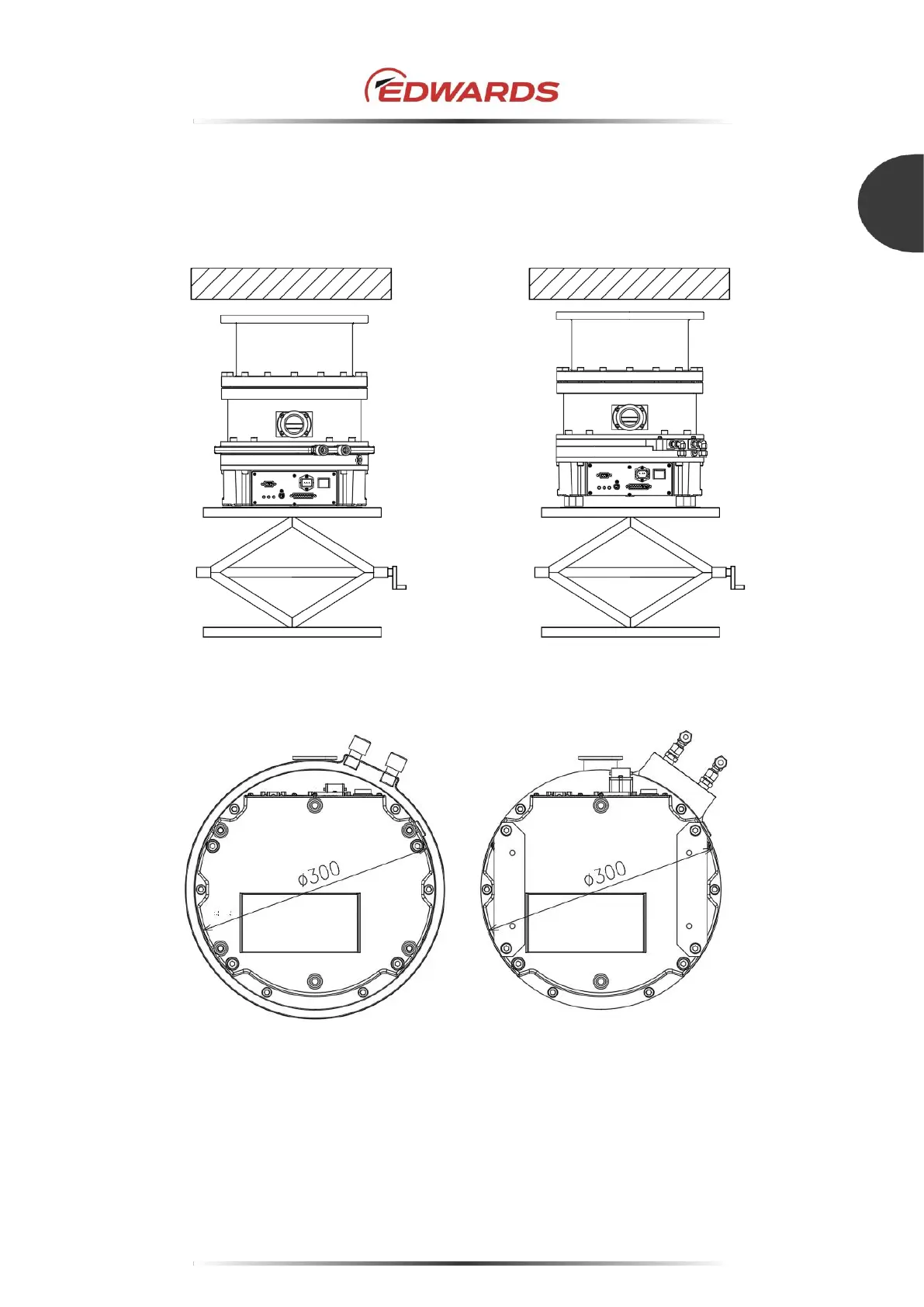

Use lifting devices when installing the STP pump under the equipment (seeFigure 13). Moreover,
when jacking up the bottom of the control unit, place the STP pump on the table which is larger than
base size (see Figure 14). A device due to jacking up the STP pump should withstand the load of five
times or more the weight of the STP pump.
STP-iS1607
STP-iS1607S
Figure 13 - Jack-up the STP pump
STP-iS1607
STP-iS1607S
Figure 14 - Control unit bottom face
