3
INSTALLATION OF THE
STP PUMP
3.8 Attaching a baking heater
WARNING
The surfaces of the STP pump and its peripheral equipment will become extremely
hot when performing baking. NEVER touch them with bare hands.
CAUTION
DO NOT apply excessive force to the cable for the baking heater.
CAUTION
Wind the baking heater around the surface of the STP pump tightly. If the baking heater is not
wound tightly, the loose parts will overheat.
The baking heater is not included in the scope of supply.
When preparing the baking heater at your company, refer to the external appearance on each
Instruction Manual of the STP pump before purchasing it.

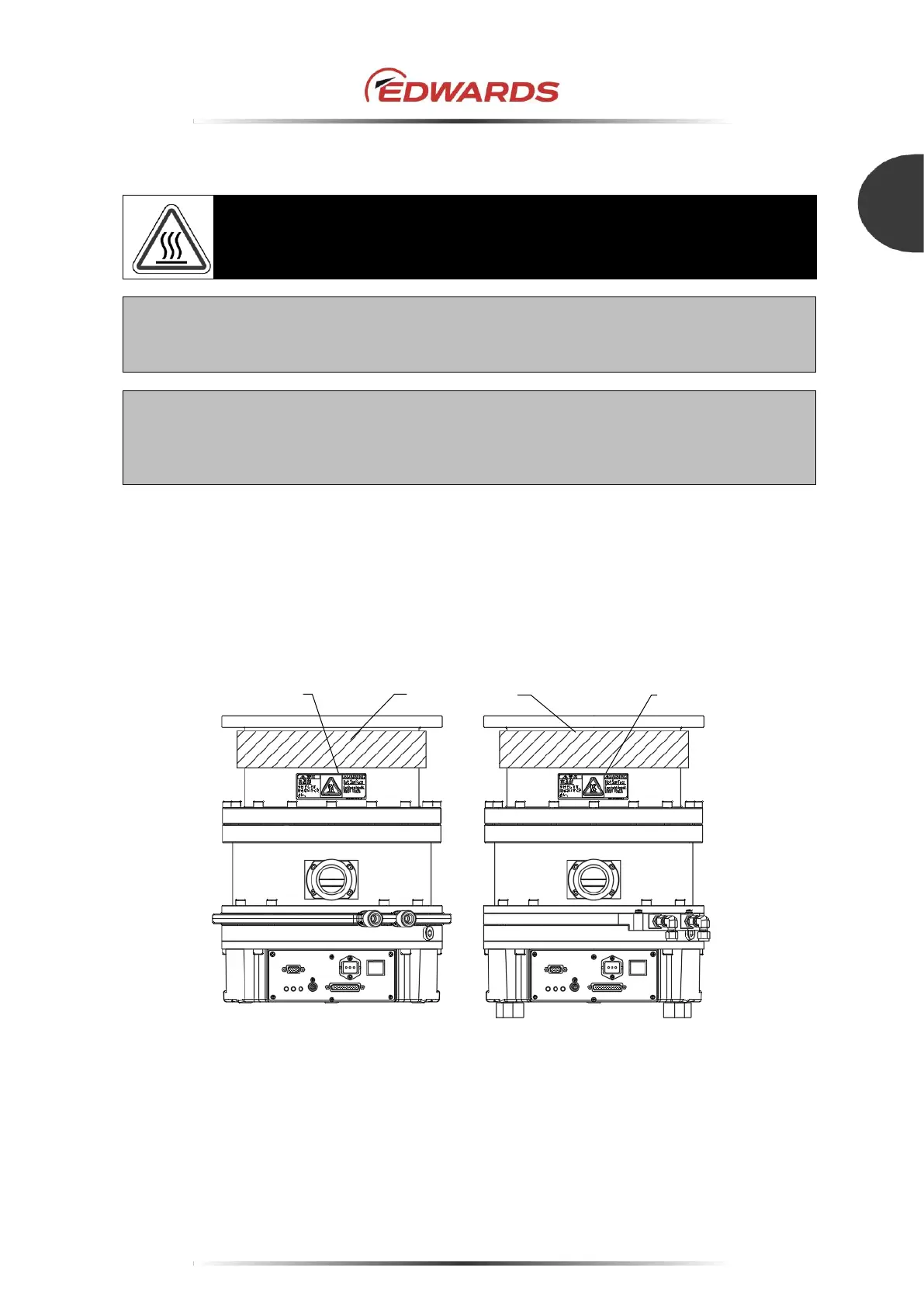

Install the baking heater near the inlet port flange in the perimeter of the envelope. (see Figure 28)
STP-iS1607
STP-iS1607S
Figure 28 - Baking heater installation position
Baking heater
Hot surface warning label
Hot surface warning label
