Edwards STP-iS1607 Series - X2 REMOTE Input Signal Pins (Contact Input)

STP-iS1607 Series Turbomolecular Pump
MT-94E-001-C
Page 63
4
OPERATION

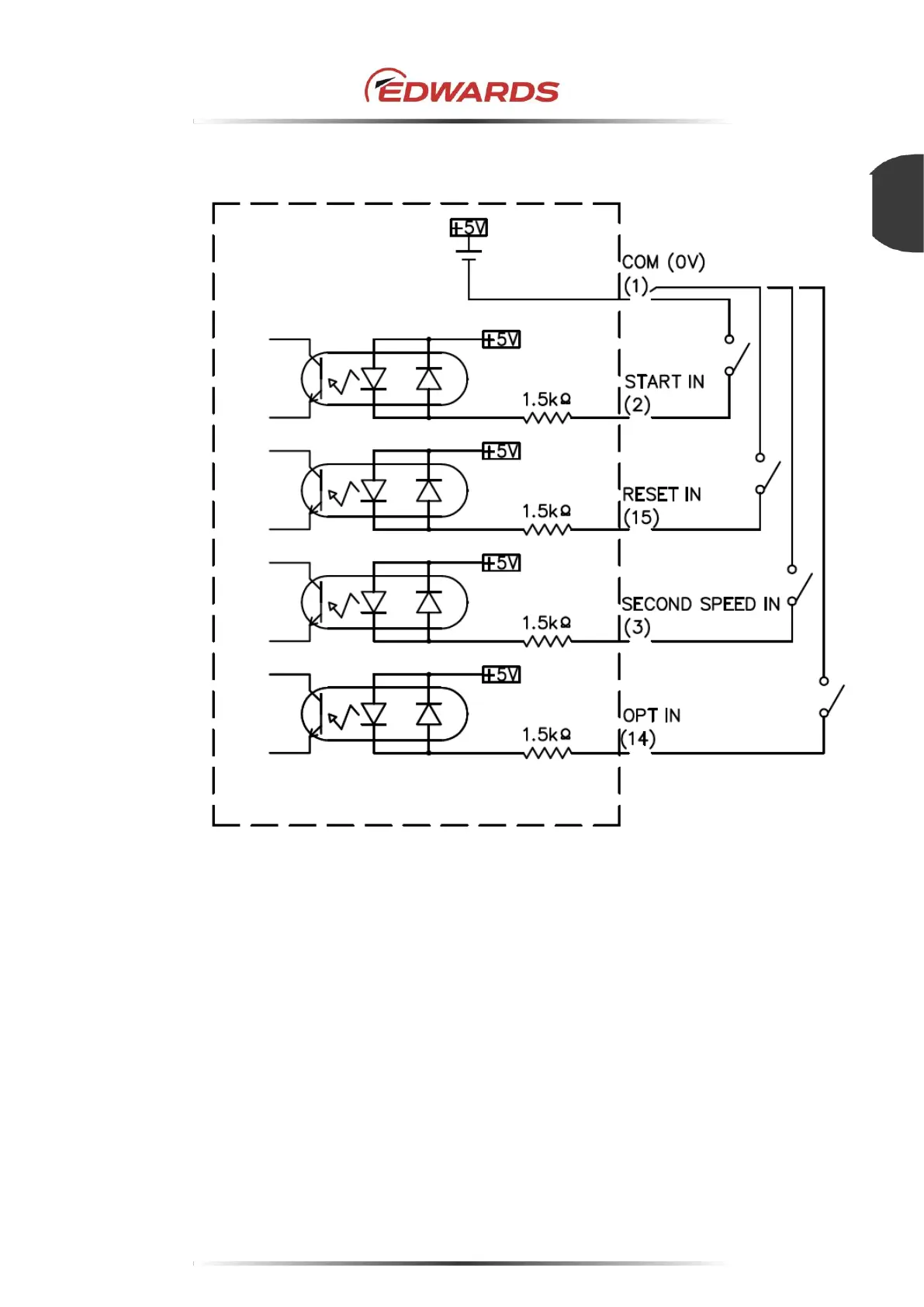

Figure 32 - X2 REMOTE input signal pins (contact input)
Note: 1 pin (0 V) is isolated from the frame ground.
Note: The input current of remote input signal is approx. 2.5 mA. Make sure the minimum
applicable load of the relay contact when the remote operation with the relay.
