STP-iS1607 Series Turbomolecular Pump
MT-94E-001-C
Page 19
2
TECHNICAL DATA
2.6 Label affixing positions
Refer to Section 1.6, "Labels" for the details of the labels 1 to 5.
1
STP pump installation warning label
2
Heavy product caution label
3
High voltage device caution label
4
Hot surface warning label
5
Rotational direction instruction label
6
Name plate
7
Parts number
8
Notice label

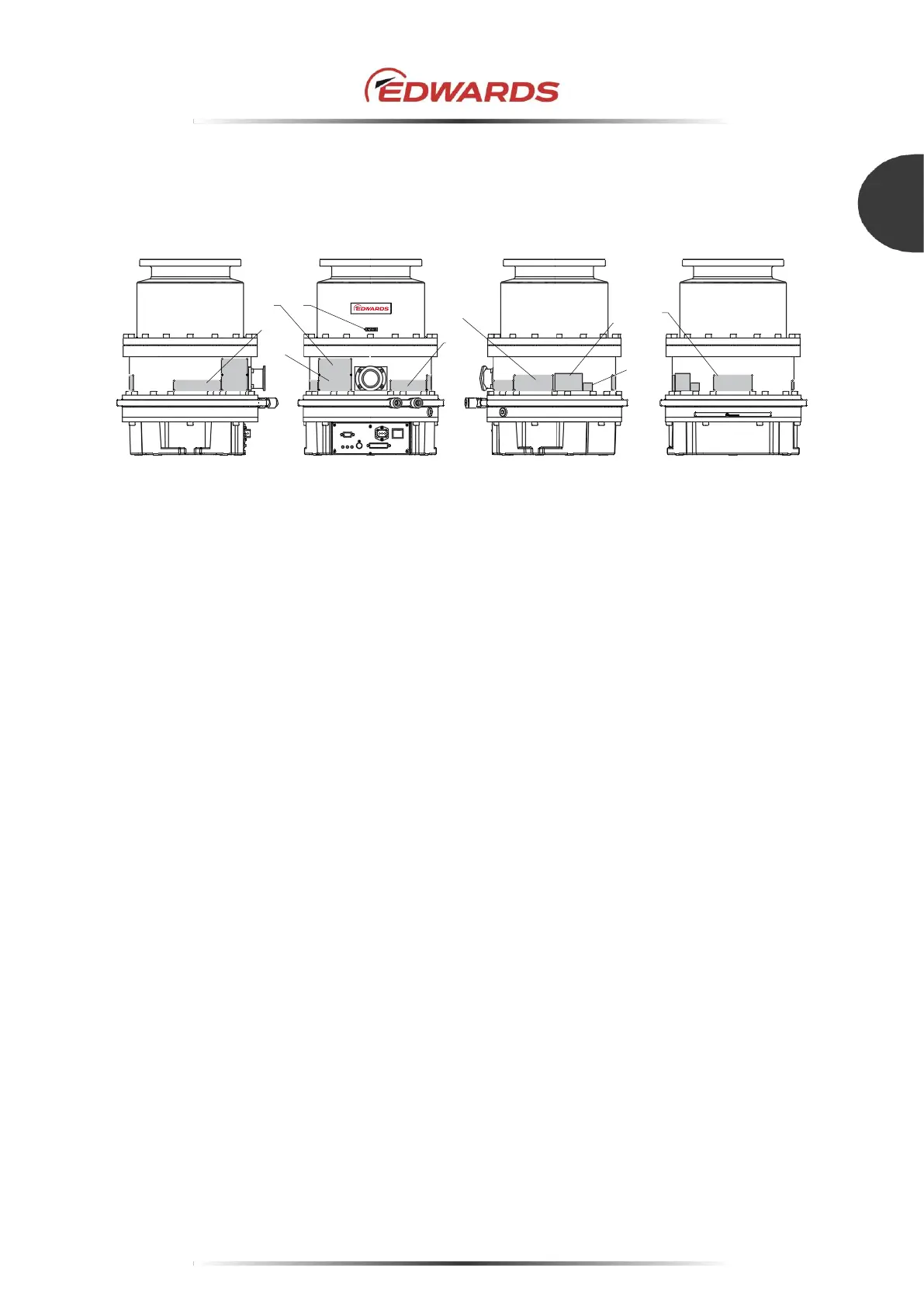

Figure 9 - Label affixing positions
1
3
8
2
5
7
6
4
4
