STP-iS1607 Series Turbomolecular Pump

MT-94E-001-C

Page 42

INSTALLATION OF THE STP PUMP

3.4.4 Legs for securing the base

CAUTION

When securing the base, use stainless steel securing bolts with a tensile strength class is 70 or

more.

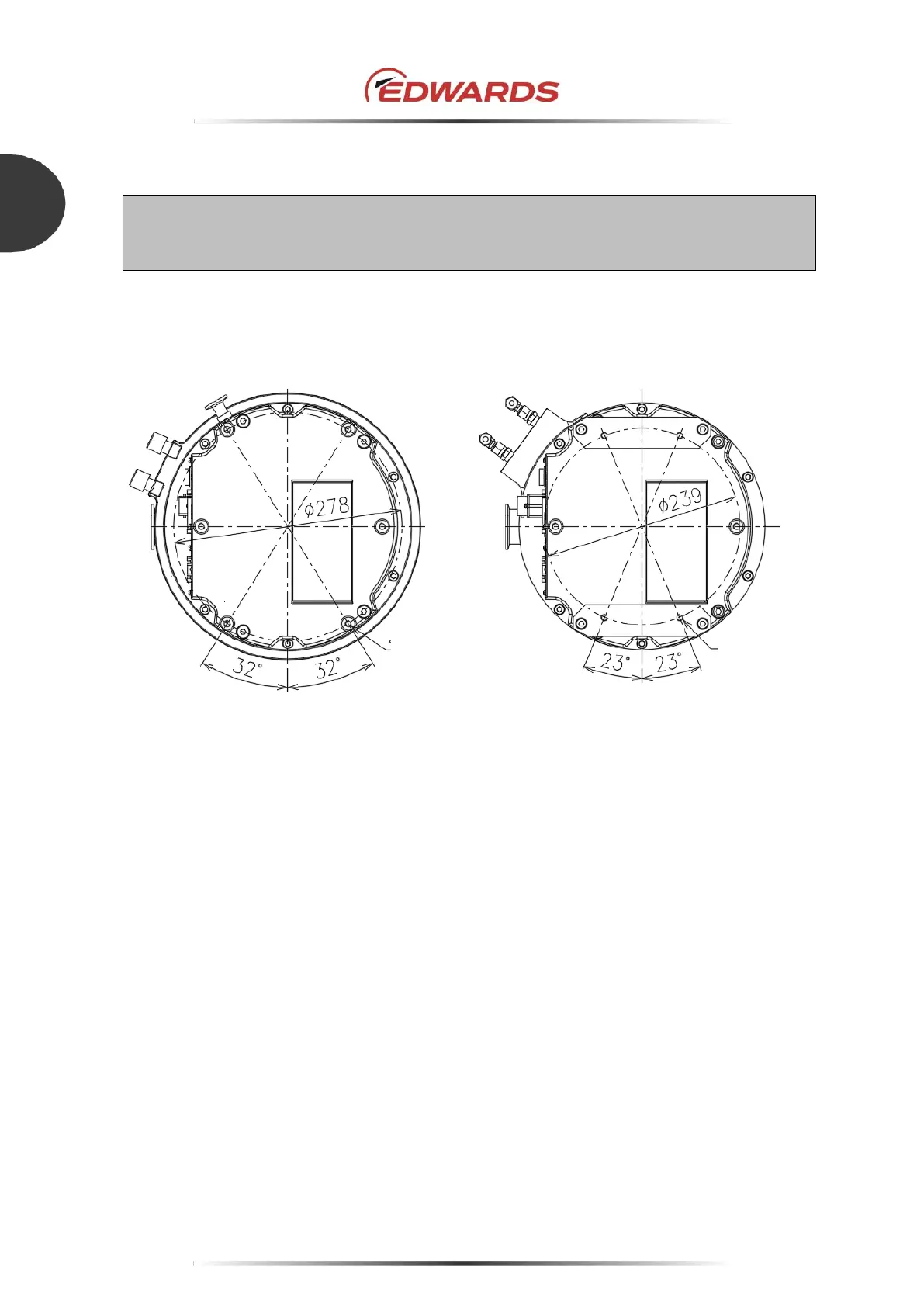

Figure 23 shows the position of the four screw holes for securing the base.

STP-iS1607

STP-iS1607S

Figure 23 - Screw holes for securing the base

4-M8

Depth 20 mm

4-M8

Depth 20 mm
