STP-iS1607 Series Turbomolecular Pump
MT-94E-001-C
Page 41
3
INSTALLATION OF THE STP PUMP
(a) When the base is
not secured
(b) When the base is secured
STP-iS1607
(a) When the base is
not secured
(b) When the base is secured
STP-iS1607S
1.
Recommended fitting bolt for flange
2.
Secure the base (legs)

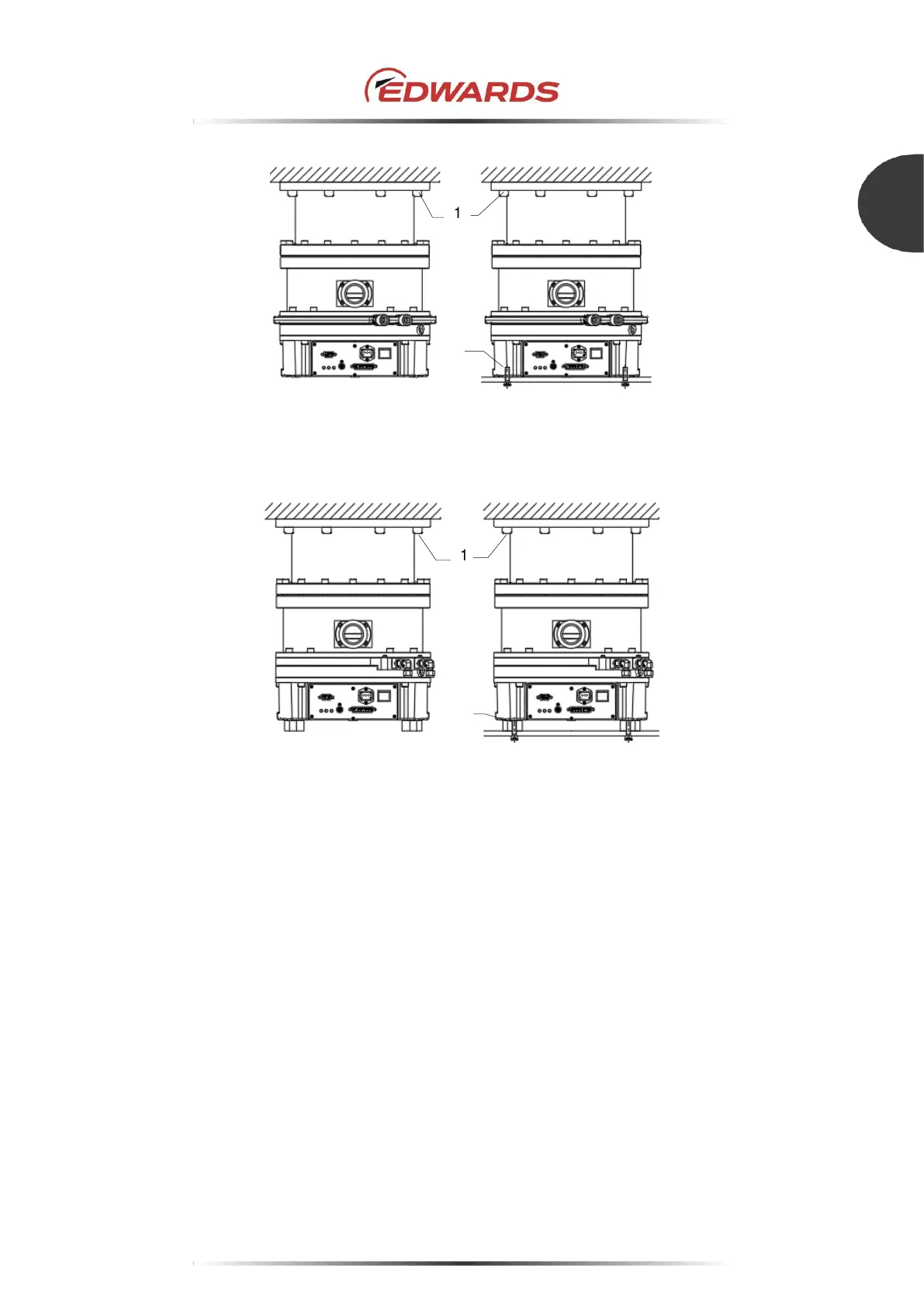

Figure 22 - Methods of securing the STP pump
1
2
1
2
